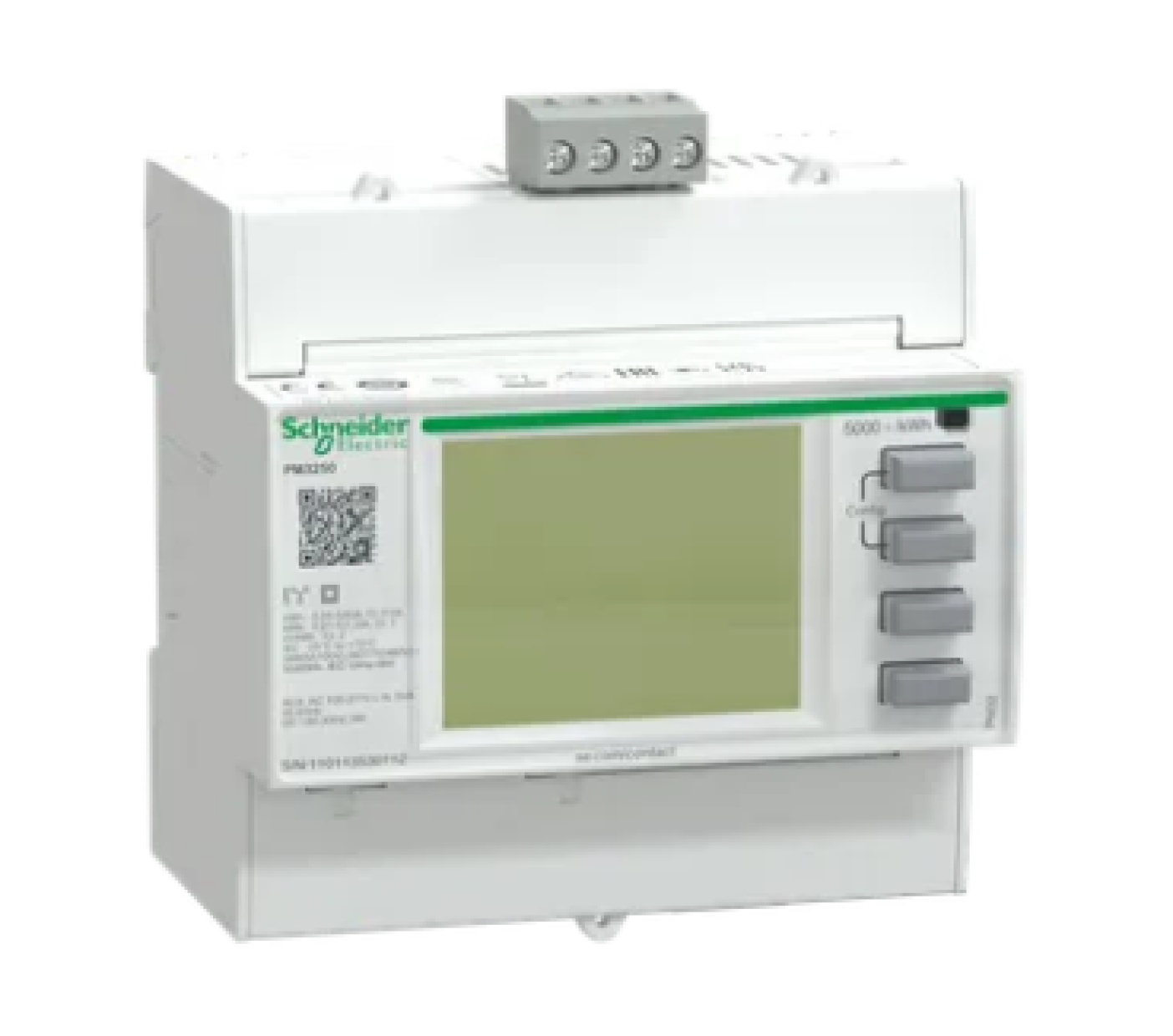

Specifications - METSEPM3250 |
||
| Range of product | PowerLogic PM3000 | |
| Country of Origin (Estimated) | China | |
| Warranty | 12 months | |
| CO/CQ | Yes (if) | |
| Product name & Device short name | PM3250 | |
| Product or component type | Power meter | |
| Power quality analysis | up to the 15th harmonic | |
| Device application | Multi-tariff Power monitoring Sub billing |
|
| Type of measurement | Active and reactive power Apparent power Current Voltage Energy Power factor Frequency Total current harmonic distortion THD (I) Total voltage harmonic distortion THD (U) |
|
| Supply voltage | 100...277 V AC 45...65 Hz 173...480 V AC 45...65 Hz 100...300 V DC |
|
| [In] rated current | 5 A 1 A |
|
| Type of network | 3P + N 1P + N 3P |
|
| Display type | Backlit LCD | |
| Display resolution | 128 x 96 pixels | |
| Measurement current | 0.02…1.2 A 0.05…6 A |
|
| Analogue input type | Current 0...5 A Current 0...1 A |
|
| Measurement voltage | 50…330 V AC 45...65 Hz direct 50…330 V AC 45...65 Hz phase to neutral 80…570 V AC 45...65 Hz direct 80…570 V AC 45...65 Hz phase to phase 570…999000 V AC 45...65 Hz with external VT |
|
| Accuracy class | Class 0.5S active energy conforming to IEC 62053-22 Class 1 active energy conforming to IEC 62053-21 Class 2 reactive energy conforming to IEC 62053-23 Class C active energy conforming to EN 50470-3 |
|
| Number of inputs | 0 | |
| Number of outputs | 0 | |
| Information displayed | Tariff (4) | |
| Communication port protocol | Modbus at 9.6...38.4 kbauds | |
| Communication port support | RS485 | |
| Data recording | Time stamping Min/max of instantaneous values 5 alarms |
|
| Dimensions (mm) (H x W x D) |
95x90x70mm | |
| Net weight | 0.26 Kg | |
