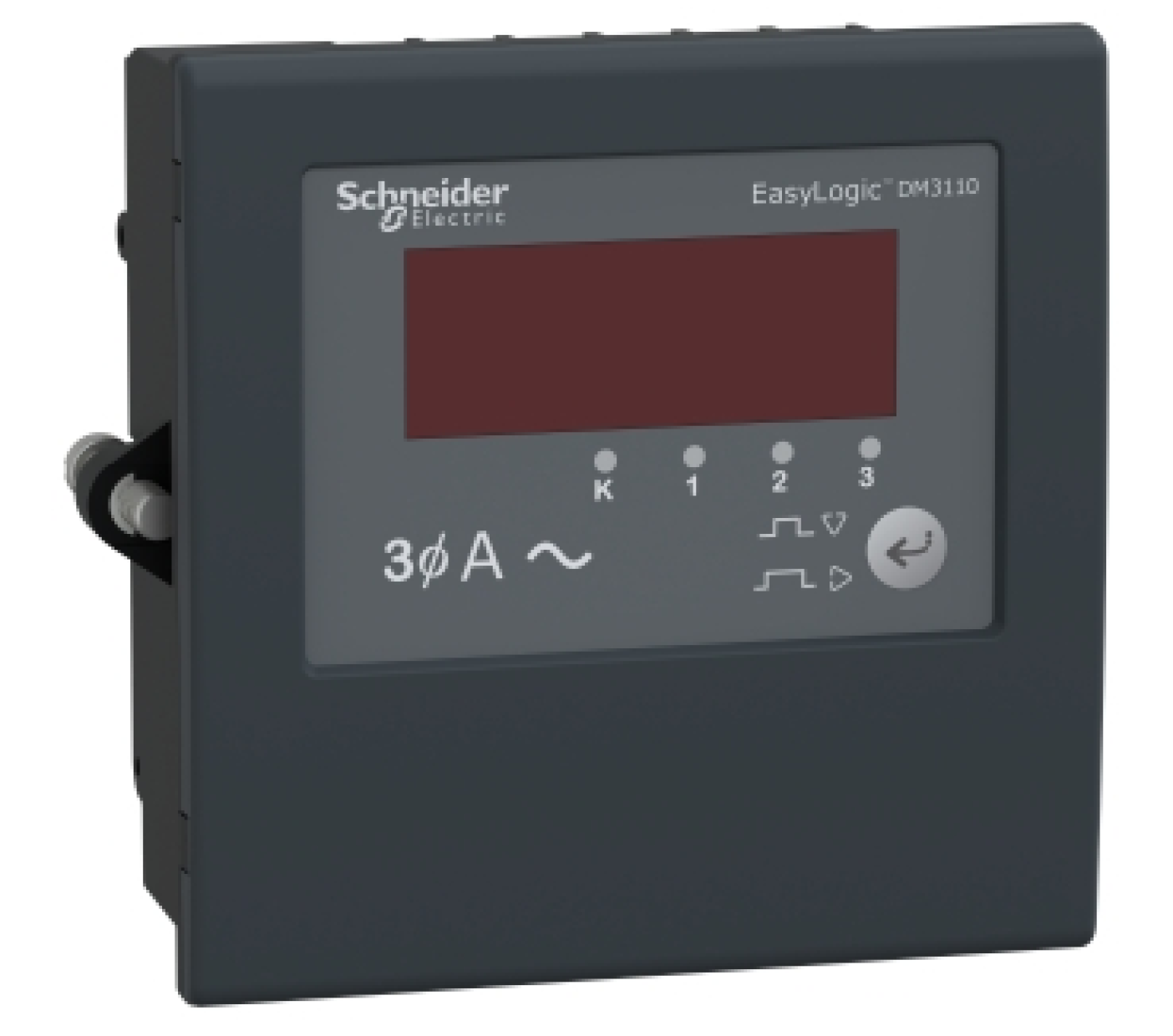

EasyLogic - Digital Panel Meter DM3000 - AmperMeter - three phases
| Specifications | ||
| Range of product | EasyLogic DM3000 | |
| Country of Origin (Estimated) | India | |
| Warranty | 12 months | |
| CO/CQ | Yes (if) | |
| Product name & Device short name | DM3110 | |
| Product or component type | Ammeter | |
| Device application | Load control Test laboratories GenSet |
|
| Poles description | 3P + N 3P |
|
| Type of measurement | Current | |
| Rated voltage | 100...230 V AC +/- 20 % 100...230 V DC +/- 20 % |
|
| Display digits | 4 | |
| Full scale display | 999.9 | |
| Measurement current | 1/5 A, 50…6000 mA AC, 50/60 Hz +/- 5 Hzv | |
| Analogue input type | Current 0...5 Athree phase | |
| Accuracy | Current +/- 0.5 % of full scale for class 0.5 | |
| Control type | Selector switch built-in | |
| Mounting support | Panel | |
| Dimensions (mm) (H x W x D) |
96x96x38 mm | |
| Net weight | 220 GRM | |
| Cut-out dimensions | 92 x 92 mm | |
