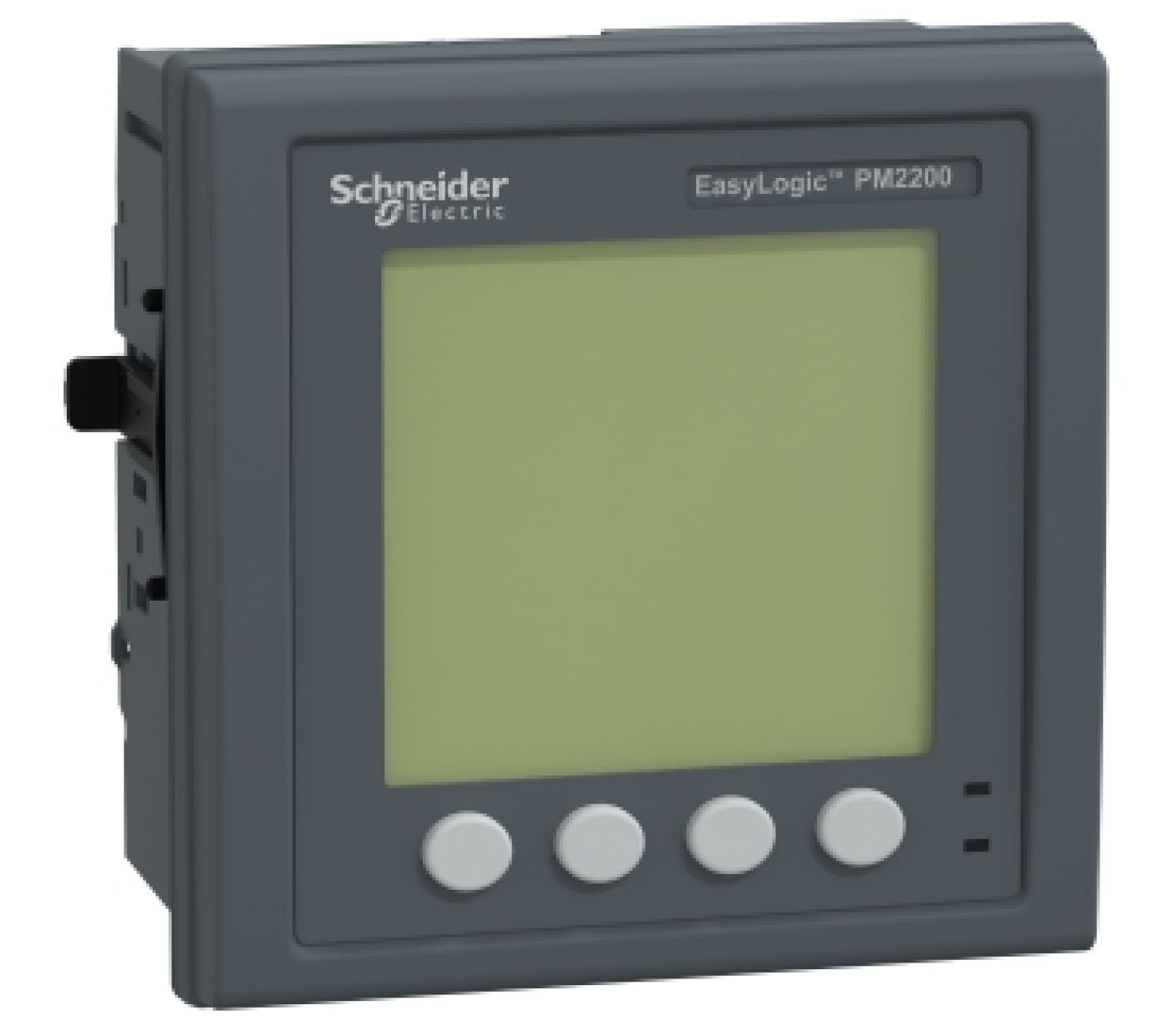

EasyLogic PM2210, Power & Energy Meter, Total Harmonic, LCD display, Pulse, class 1.
Specifications METSEPM2210 |
||
| Range of product | EasyLogic PM2200 | |
| Country of Origin (Estimated) | India | |
| Warranty | 12 months | |
| CO/CQ | Yes (if) | |
| Product name & Device short name | PM2210 | |
| Product or component type | Power meter | |
| Power quality analysis | Total harmonic distortion | |
| Device application | Sub billing Power monitoring |
|
| Type of measurement | Apparent power min/max, total Active and reactive power min/max, total Current min/max, avg Voltage min/max, avg Frequency min/max, avg Total current harmonic distortion THD (I) per phase Total voltage harmonic distortion THD (U) per phase Power factor min/max, avg Apparent energy total Active and reactive energy total |
|
| Metering type | Voltage U, U21, U32, U13, V, V1, V2, V3 Unbalance current Calculated neutral current Apparent power S, S1, S2, S3 Peak demand currents Current I, I1, I2, I3 Active, reactive, apparent energy (signed, four quadrant) Active power P, P1, P2, P3 Reactive power Q, Q1, Q2, Q3 Peak demand power PM, QM, SM Demand power P, Q, S |
|
| [Us] rated supply voltage | 35…480 V AC 50/60 Hz between phases 20…277 V AC 50/60 Hz between phase and neutral 480…999000 V AC 50/60 Hz with external VT |
|
| [In] rated current | 5 A 1 A |
|
| Display type and colour | Backlit LCD and Monochrome | |
| Display resolution | 128 x 128 pixels | |
| Communication port protocol | POP | |
| POP parameter | Pulse: 20 ms (5...40 V DC, 20 mA max)1...9999000 pulse/ k_h (kWh, kVAh, kVARh) | |
| Number of outputs | 1 pulse | |
| Measurement current | 5…6000 mA | |
| Measurement voltage | 35…480 V AC 50/60 Hz between phases 20…277 V AC 50/60 Hz between phase and neutral 480…999000 V AC 50/60 Hz with external VT |
|
| Frequency measurement range | 45…65 Hz | |
| [Us] rated supply voltage | 44...277 V AC 45...65 Hz +/- 10 % 44...277 V DC +/- 10 % |
|
| Measurement accuracy | Apparent power +/- 1 % Active energy +/- 1 % Reactive energy +/- 1 % Active power +/- 1 % Voltage +/- 0.5 % Power factor +/- 0.01 Current +/- 0.5 % Frequency +/- 0.05 % |
|
| Accuracy class | Class 1 active energy conforming to IEC 62053-21 Class 1 reactive energy conforming to IEC 62053-24 |
|
| Material | Polycarbonate | |
| Dimensions (mm) (H x W x D) |
96x96x61.64mm | |
| Cut-out dimensions | 92 x 92 mm | |
| Net weight | 300 g | |
