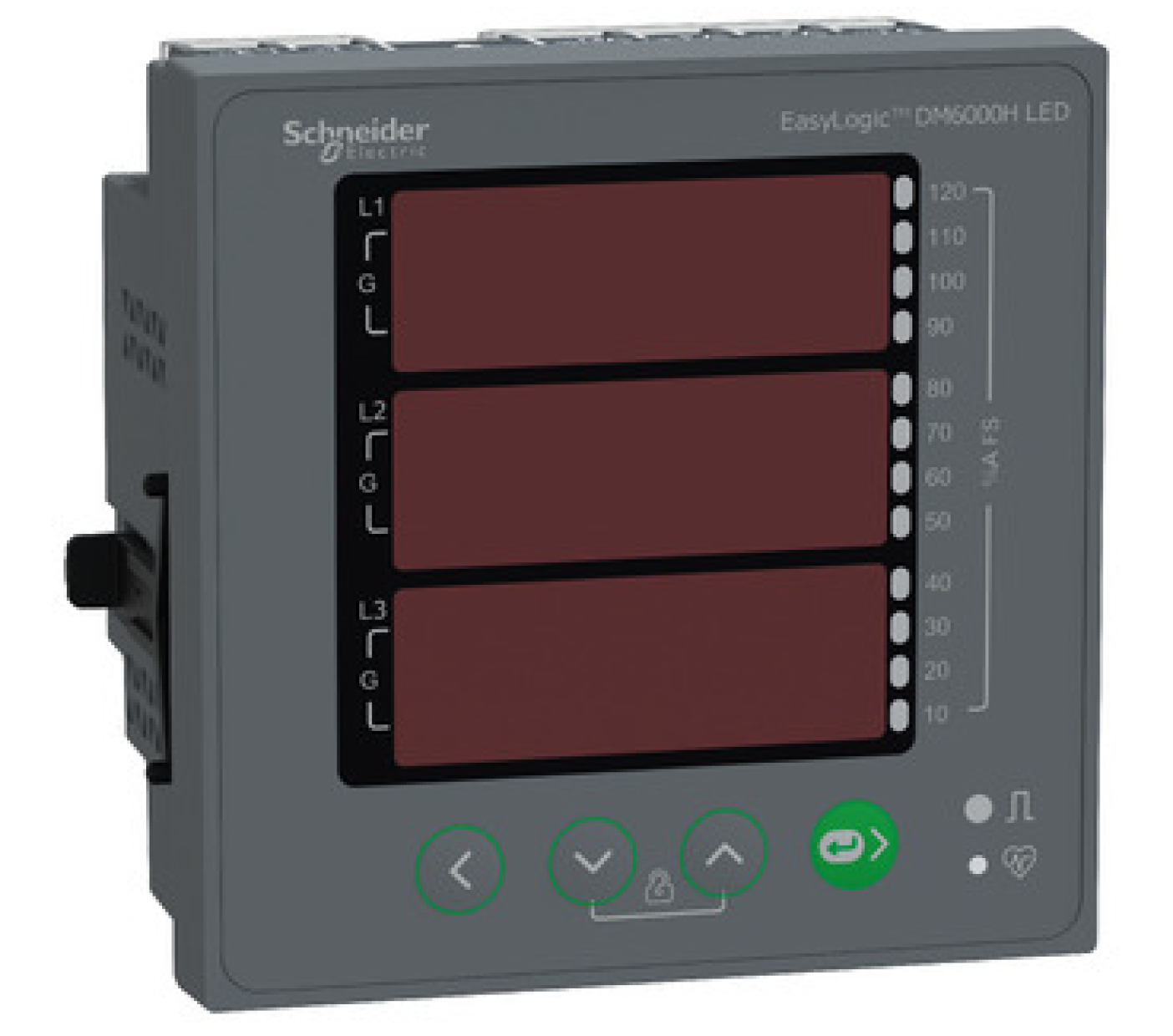

EasyLogic DM6000H Type of measurement Current, Voltage, Frequency, RPM Class 1.
| Specifications | ||
| Range of product | EasyLogic DM6X00H NC | |
| Country of Origin (Estimated) | India | |
| Warranty | 12 months | |
| CO/CQ | Yes (if) | |
| Product name & Device short name | DM6000H | |
| Product or component type | VAF PF meter | |
| Device application | Remote monitoring | |
| Type of network | 2P + N 2P 3P + N 3P 1P + N |
|
| Type of measurement | Current Voltage Frequency RPM |
|
| Metering type | Unbalance current Calculated neutral current Unbalance voltage Rotation speed Phase currents Voltage U21, U32, U13, V1, V2, V3 Frequency Average voltage Vavg Average current Iavg |
|
| Counter functions | Power interruption ON hour counting |
|
| [Us] rated supply voltage | 48...277 V AC 45...65 Hz 48...277 V DC |
|
| [In] rated current | 1 A 5 A |
|
| Display type and colour | 8 segments LED and Red | |
| Display digits | 12 digit(s) - 14.2 mm in height | |
| Communication of data | Reading of measurements Instantaneous and demand values Revolution speed All counters |
|
| Measurement current | 5…6000 mA | |
| Signal | Current 0.005...10 A (impedance 0.3 MOhm)6 x | |
| Measurement voltage | 5…480 V AC 50...60 Hz between phases 46…277 V AC 50...60 Hz between phase and neutral 277…999000 V AC 50...60 Hz with external VT |
|
| Frequency measurement range | 45…65 Hz | |
| Measurement accuracy | Frequency +/- 0.05 % Power factor +/- 0.01 Current +/- 1 % Voltage +/- 1 % |
|
| Accuracy class | Class 1 | |
| Material | Polycarbonate | |
| Dimensions (mm) (H x W x D) |
96x96x49 mm | |
| Cut-out dimensions | 92 x 92 mm | |
| Net weight | 250 GRM | |
