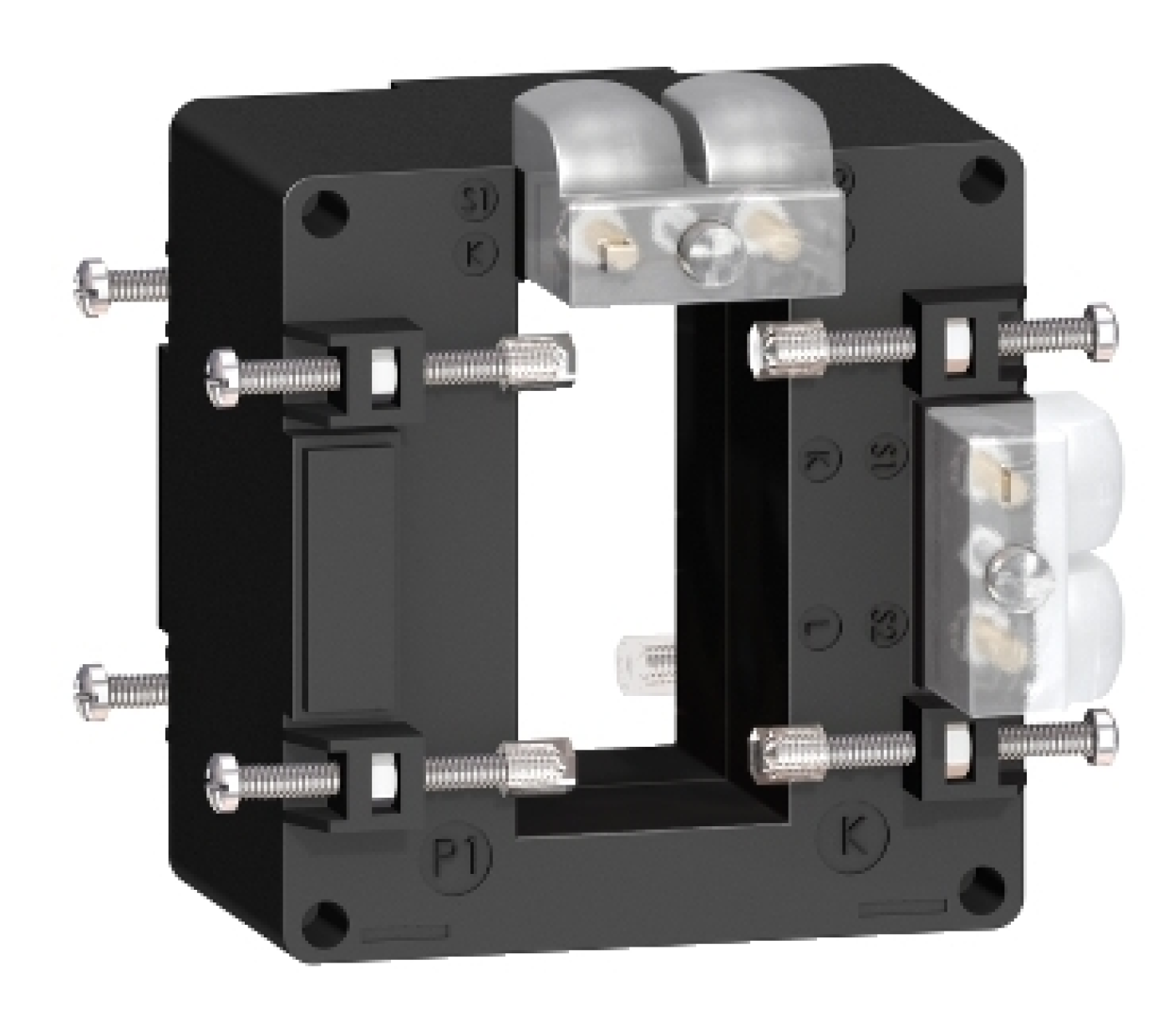

Current Transformer Tropicalised 400 5 double output for bars 32x65.
Specifications |
METSECT5DA040 |
| Range | PowerLogic |
| Country of Origin (Estimated) | Tunisia |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name | CT |
| Product or component type | Current transformer |
| Secondary current | 5 A |
| Accuracy class | Class 0.5 at 4 VA Class 1 at 8 VA |
| [In] rated current | 400 A |
| Current transformer type | Tropicalised for cable |
| Current transformer ratio | 400/5 |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| Mounting mode | Insulated locking screw |
| Mounting support | Busbar |
| Electrical insulation class | Class B |
| Sealing | With |
| Standards | VDE 0414 IEC 61869-2 |
| Width | Outside: 90 mm Inner: 65 mm |
| Height | Outside: 94 mm Inner: 32 mm |
| Depth | Frame : 40 mm Total : 87 mm |
| Opening of bars | 65 x 32 |
| Product weight | 0.531 kg |
