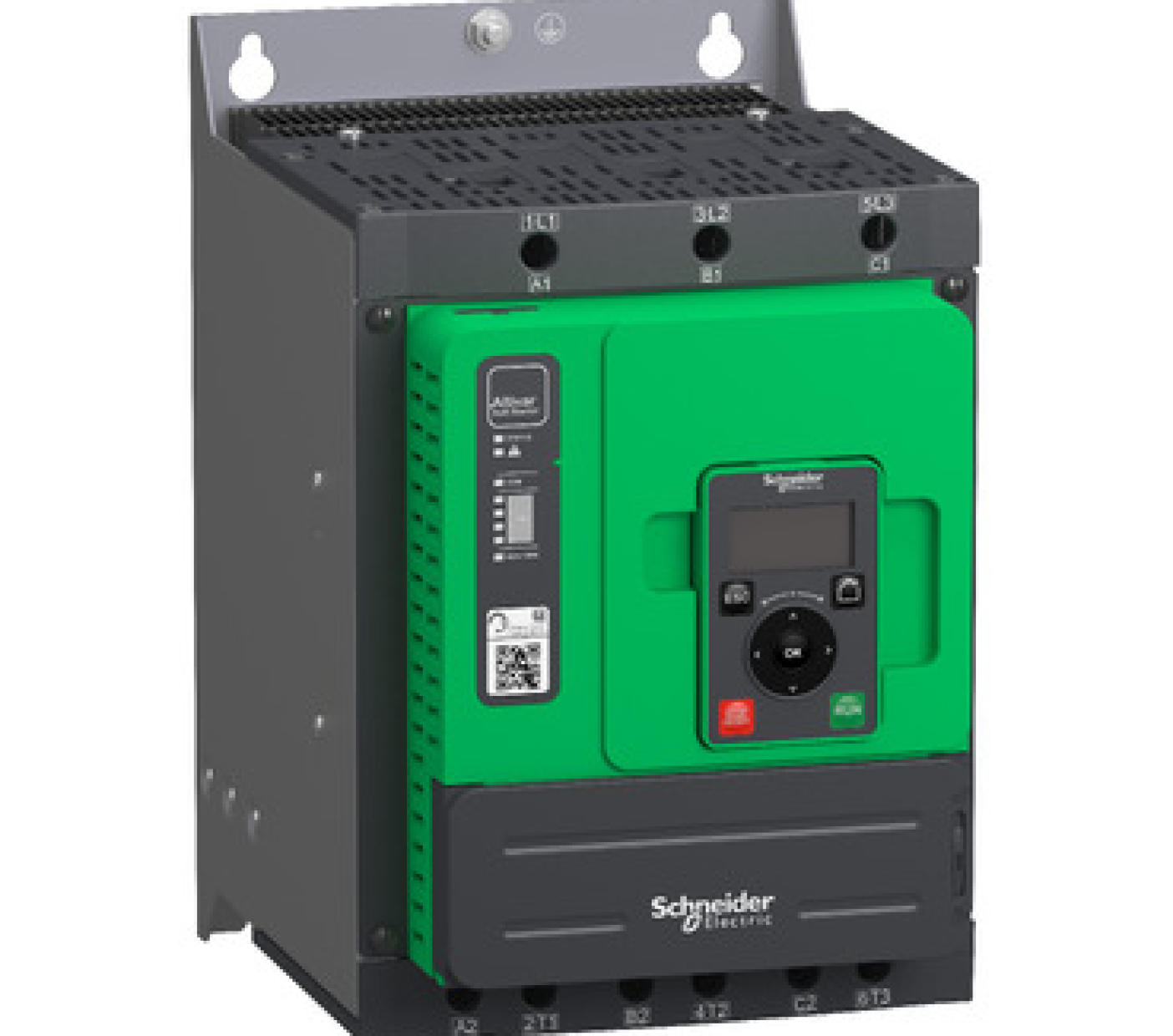

Soft starter, Altistart 480, 110A, 208 to 690V AC, control supply 110 to 230V AC.
Specifications: ATS480C11Y |
||
| Range | Altistart 480 | |
| Country of Origin (Estimated) | Indonesia (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if need) | |
| Product name & Device short name | ATS480 | |
| Product specific application | Process and infrastructures | |
| Product destination | Asynchronous motors | |
| Network number of phases | 3 phase | |
| Ue power supply voltage | 208...690 V - 15...10 % | |
| [Uc] control circuit voltage | 110...250 V AC 50/60 Hz - 15...10 % | |
| Motor power kW | 55.0 kW at 400 V in the motor supply line normal duty 45.0 kW at 400 V in the motor supply line heavy duty 55.0 kW at 440 V in the motor supply line normal duty 45.0 kW at 440 V in the motor supply line heavy duty |
|
| [Ie] rated operational current | Normal duty: 110.0 A (at <40 °C) | |
| Communication port protocol | Modbus serial | |
| Connector type | 1 RJ45 | |
| Method of access | Slave Modbus serial | |
| Protection type | Phase failure: line Integrated thermal protection: motor Thermal protection: starter Current overload: motor Underload: motor Excessive starting time, locked rotor: motor Motor phase loss: motor Line supply phase loss: line Line supply phase loss: motor Thermal protection: motor |
|
| Assembly style | With heat sink | |
| Function available | External bypass control Pre-heating Smoke extraction Multi-motor cascade Second motor set User management Ports and services hardening Security event logging Cybersecure firmware update Single direction |
|
| Device connection | In the motor supply line To the motor delta terminals |
|
| Method of access | Slave Modbus serial | |
| IP degree of protection | IP00 | |
| Dimensions (mm) (H x W x D) |
290x190x247 mm | |
| Net weight (Kg) | 8.3 Kg | |
