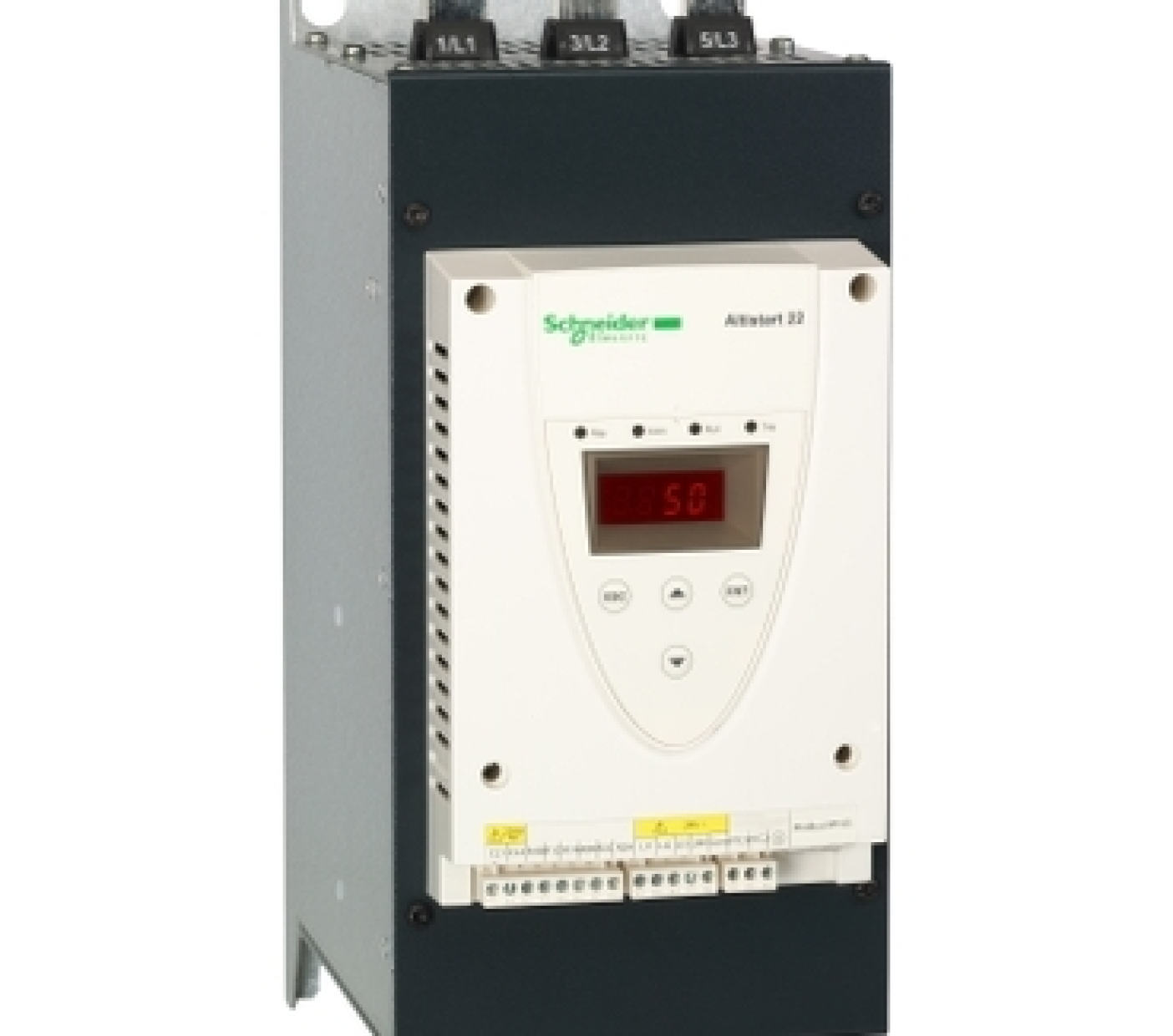

Soft starter-ATS22-control 220V-power 230V(39kW)/400...440V(55kW)
Specifications: ATS22C11Q |
||
| Range | Altistart 22 | |
| Country of Origin (Estimated) | Indonesia (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if need) | |
| Product name & Device short name | ATS22 | |
| Product specific application | Pumps and fans | |
| Product destination | Asynchronous motors | |
| Network number of phases | 3 phase | |
| [Us] rated supply voltage | 230...440 V - 15...10 % | |
| Supply voltage limits | 195…484 V | |
| [Uc] control circuit voltage | 230 V - 15...10 % 50/60 Hz | |
| Motor power kW | 39 kW 230 V 55 kW 400 V 55 kW 440 V |
|
| Motor power range AC-3 | 30…50 kW at 200…240 V 3 phases 55…100 kW at 380…440 V 3 phases |
|
| IcL starter rating | 110 A for connection in the motor supply line for standard applications | |
| Communication port protocol | Modbus | |
| Connector type | 1 RJ45 | |
| Protection type | Phase failure: line Thermal protection: motor Thermal protection: starter |
|
| Assembly style | With heat sink | |
| Function available | Integrated bypass | |
| Device connection | In the motor supply line To the motor delta terminals |
|
| Starting torque | Start with torque control (current limited to 3.5 In) | |
| IP degree of protection | IP20 | |
| Dimensions (mm) (H x W x D) |
356x150x229.5 mm | |
| Net weight (Kg) | 18 Kg | |
