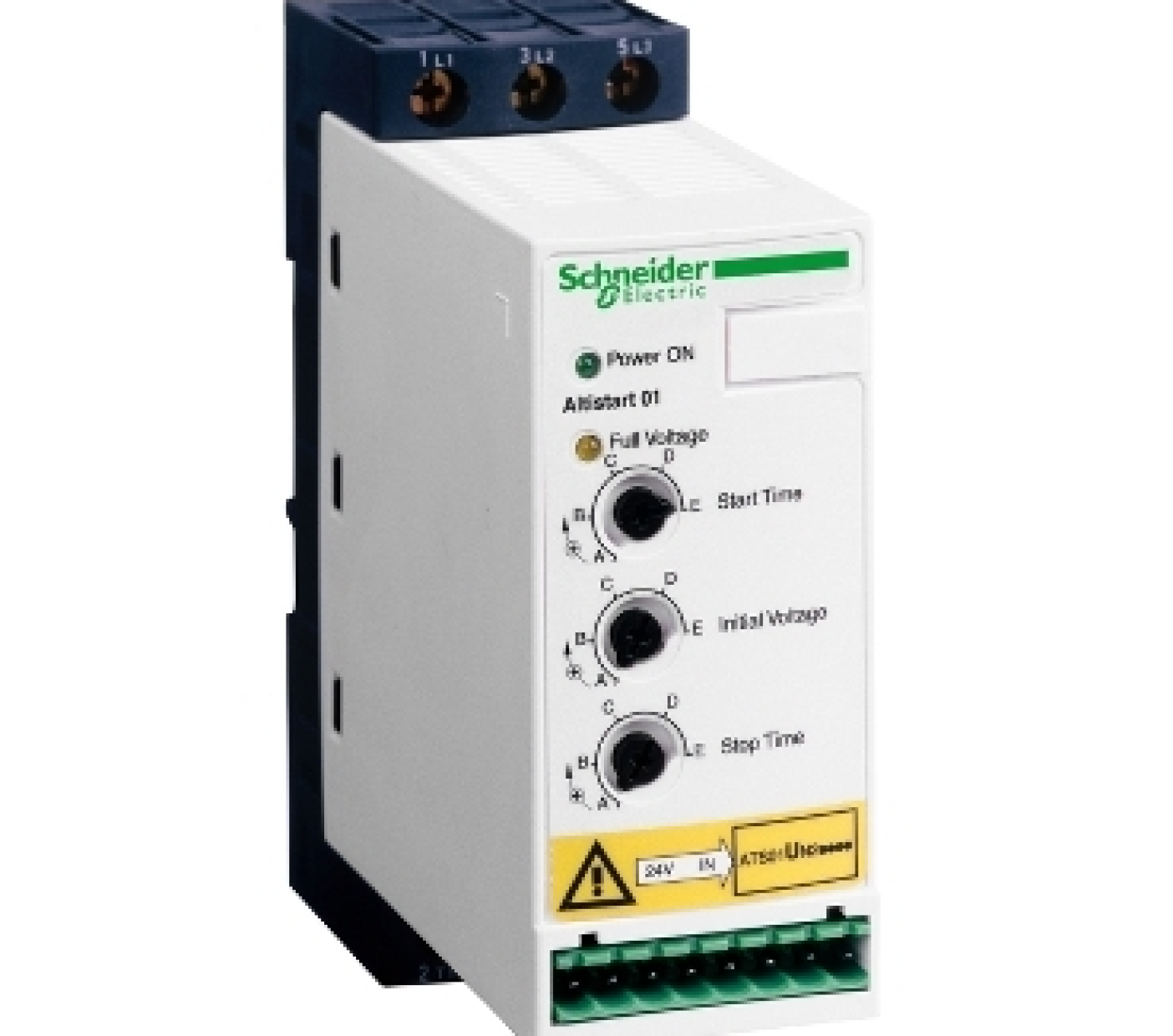

Soft starter for asynchronous motor - ATS01 - 12 A - 380..415V - 5.5 KW.
Specifications: ATS01N212QN |
||
| Range | Altistart 01 | |
| Country of Origin (Estimated) | Germany (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if need) | |
| Product name & Device short name | ATS01 | |
| Product specific application | Simple machine | |
| Product destination | Asynchronous motors | |
| Network number of phases | 3 phase | |
| [Us] rated supply voltage | 380...415 V - 10...10 % | |
| Supply voltage limits | 342…456 V | |
| Motor power kW | 5.5 kW, 3 phases at 380...415 V | |
| Motor power range AC-3 | 4…6 kW at 380…440 V 3 phases | |
| IcL starter rating | 12A | |
| Assembly style | With heat sink | |
| Function available | Integrated bypass | |
| Starting torque | 30...80 % of starting torque of motor connected directly on the line supply | |
| IP degree of protection | IP20 | |
| Dimensions (mm) (H x W x D) |
124x45x131 mm | |
| Net weight (Kg) | 0.42 Kg | |
