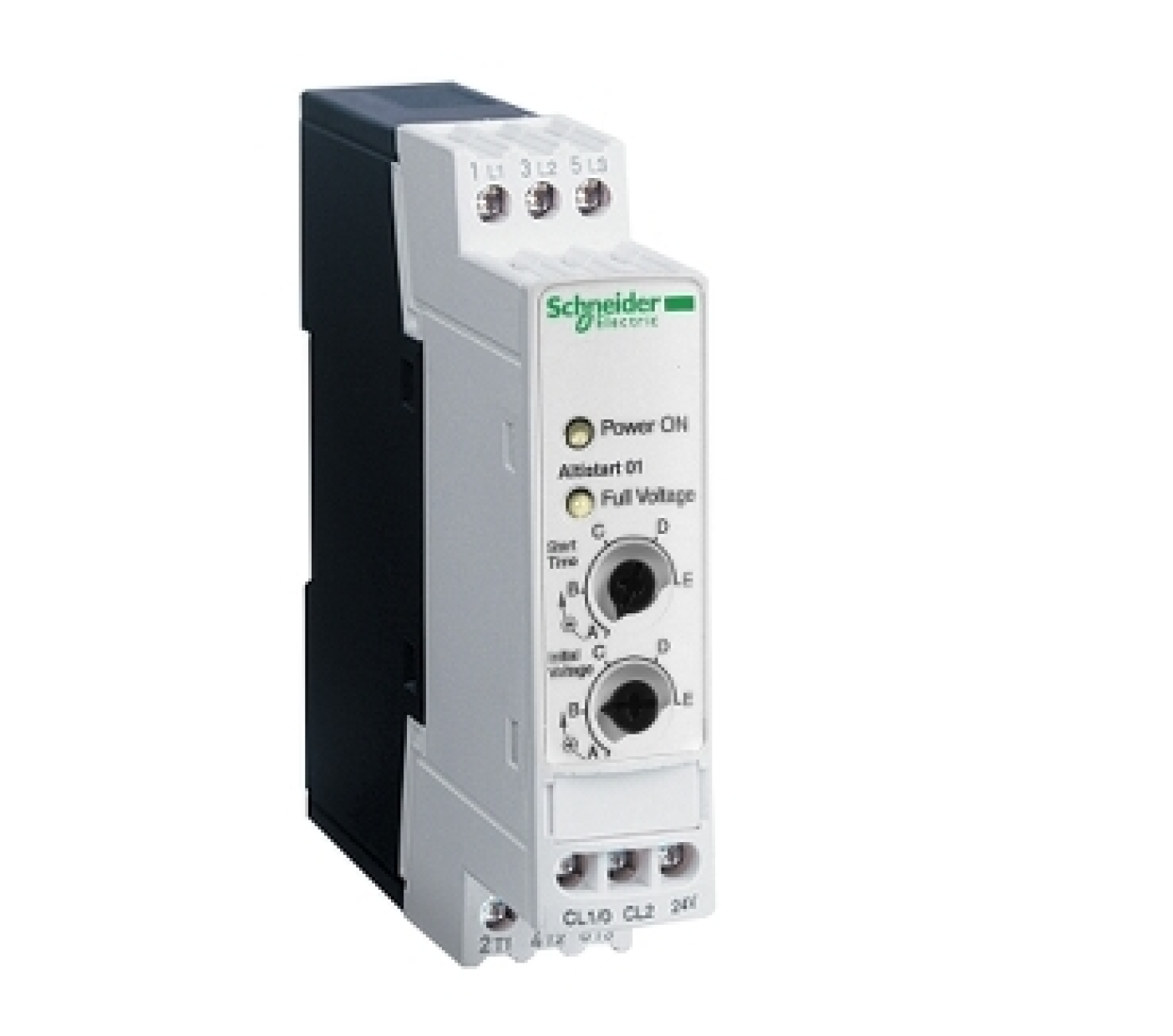

Soft starter for asynchronous motor - ATS01 - 3 A - 110..480V - 0.55..1.1 KW.
Specifications: ATS01N103FT |
||
| Range | Altistart 01 | |
| Country of Origin (Estimated) | Germany (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if need) | |
| Product name & Device short name | ATS01 | |
| Product specific application | Simple machine | |
| Product destination | Asynchronous motors | |
| Network number of phases | 1 phase | |
| [Us] rated supply voltage | 110...480 V - 10...10 % | |
| Supply voltage limits | 99…528 V | |
| Motor power kW | 0.37 kW, 3 phases at 230 V 0.55 kW, 3 phases at 230 V 1.1 kW, 3 phases at 400 V 0.37 kW, 1 phase at 230 V |
|
| Motor power hp | 0.5 hp, 3 phases at 230 V 0.5 hp, 3 phases at 460 V 1.5 hp, 3 phases at 460 V |
|
| Motor power range AC-3 | 0…0.5 kW at 200…240 V 1 phase 0…0.5 kW at 200…240 V 3 phases 0.55…1 kW at 200…240 V 3 phases 1.1…2 kW at 380…440 V 3 phases |
|
| IcL starter rating | 3A | |
| Assembly style | With heat sink | |
| Function available | Integrated bypass | |
| Starting torque | 30...80 % of starting torque of motor connected directly on the line supply | |
| IP degree of protection | IP20 | |
| Dimensions (mm) (H x W x D) |
100x23x100 mm | |
| Net weight (Kg) | 0.16 Kg | |
