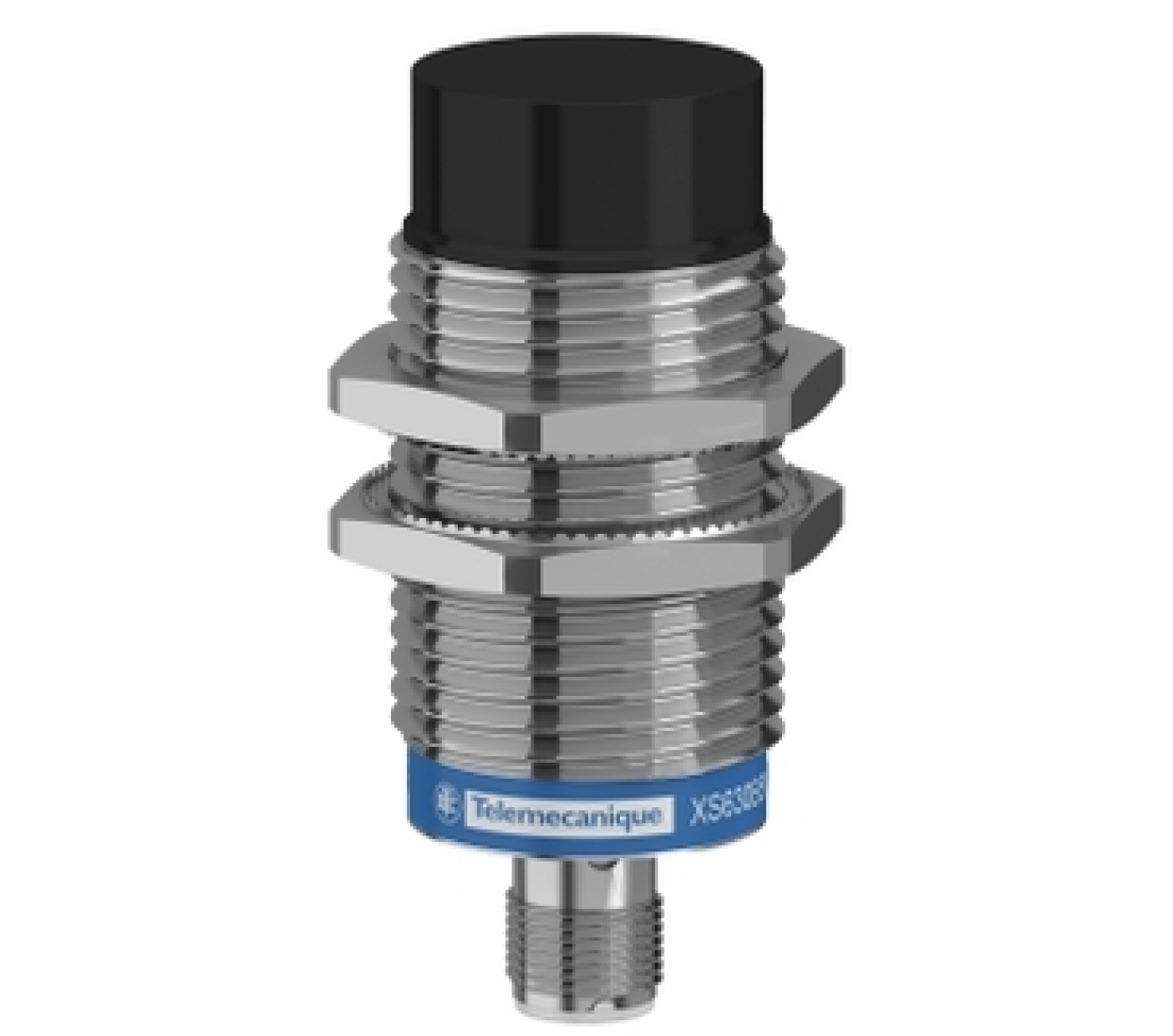

Inductive proximity sensors XS, inductive sensor XS6 M30, L74mm, brass, Sn30mm, 12...48 VDC, M12.
Specifications |
XS630B5PAM12 |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS6 |
| Sensor design | Cylindrical M30 |
| Body type | Fixed |
| Size | 74 mm |
| Detector flush mounting acceptance | Non flush mountable |
| Material | Metal |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| [Sn] nominal sensing distance | 30 mm |
| Discrete output function | 1 NO |
| Discrete output type | PNP |
| Electrical connection | Male connector M12, 4 pins |
| [Us] rated supply voltage | 12...48 V DC with reverse polarity protection |
| Switching capacity in mA | <= 200 mA DC with overload and short-circuit protection |
| Thread type | M30 x 1.5 |
| Detection face | Frontal |
| Front material | PPS |
| Enclosure material | Nickel Plated Brass |
| Output circuit type | DC |
| Sensing range | > 15...40 mm |
| Operating zone | 0…24 mm |
| Cable composition | 2 x 0.34 mm² |
| Status LED | Output state: 1 LED (yellow) |
| Supply voltage limits | 10…58 V DC |
| Threaded length | 39 mm |
| Length | 74 mm |
| Net weight (Kg) | 0.145 kg |
