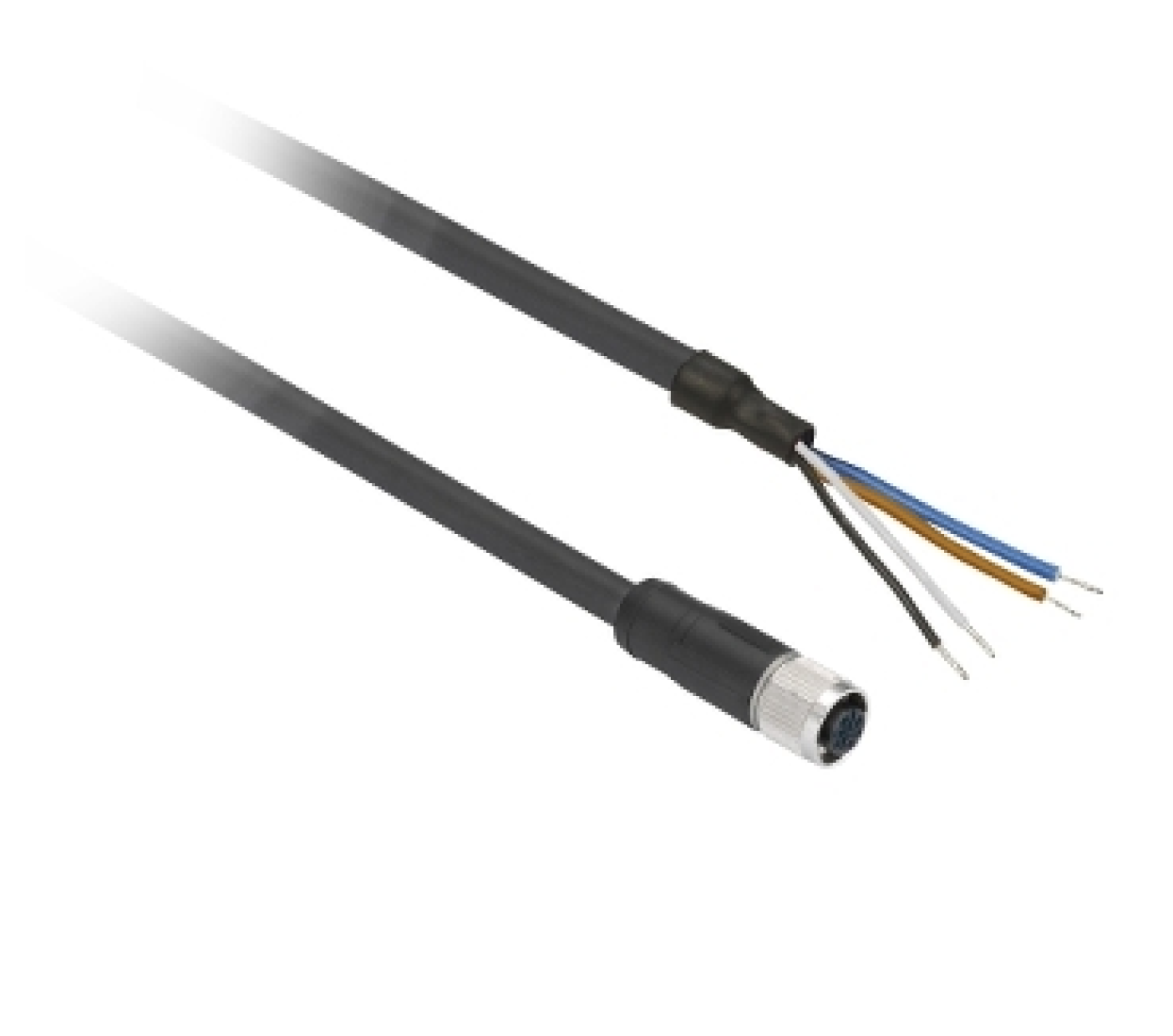

Pre wired connectors XZ, straight female, M12, 4 pins, cable PUR 2 m.
Specifications |
XZCP1141L2 |
| Range of product | Telemecanique Cabling components |
| Accessory / separate part categor | Cabling accessories |
| Accessory / separate part type |
Pre-wired connectors |
| Series name | General purpose |
| Electrical connection | Straight female connector M12, 4 pins |
| Cable connector fixing | Screw-on |
| Collar material | Metal |
| Status LED | Without |
| Cable length | 6.6 ft (2 m) |
| Cable outer diameter | 0.2 in (5.2 mm) |
| Cable composition | 4 x 0.34 mm² |
| Wire insulation material | PUR |
| [Ue] rated operational voltage | 250 V AC 300 V DC |
| Line Rated Current | 4 A |
| Contact resistance | 5000 µOhm |
| Minimum insulating resistance | 1 GΩ |
| Net Weight | 0.09 kg |
