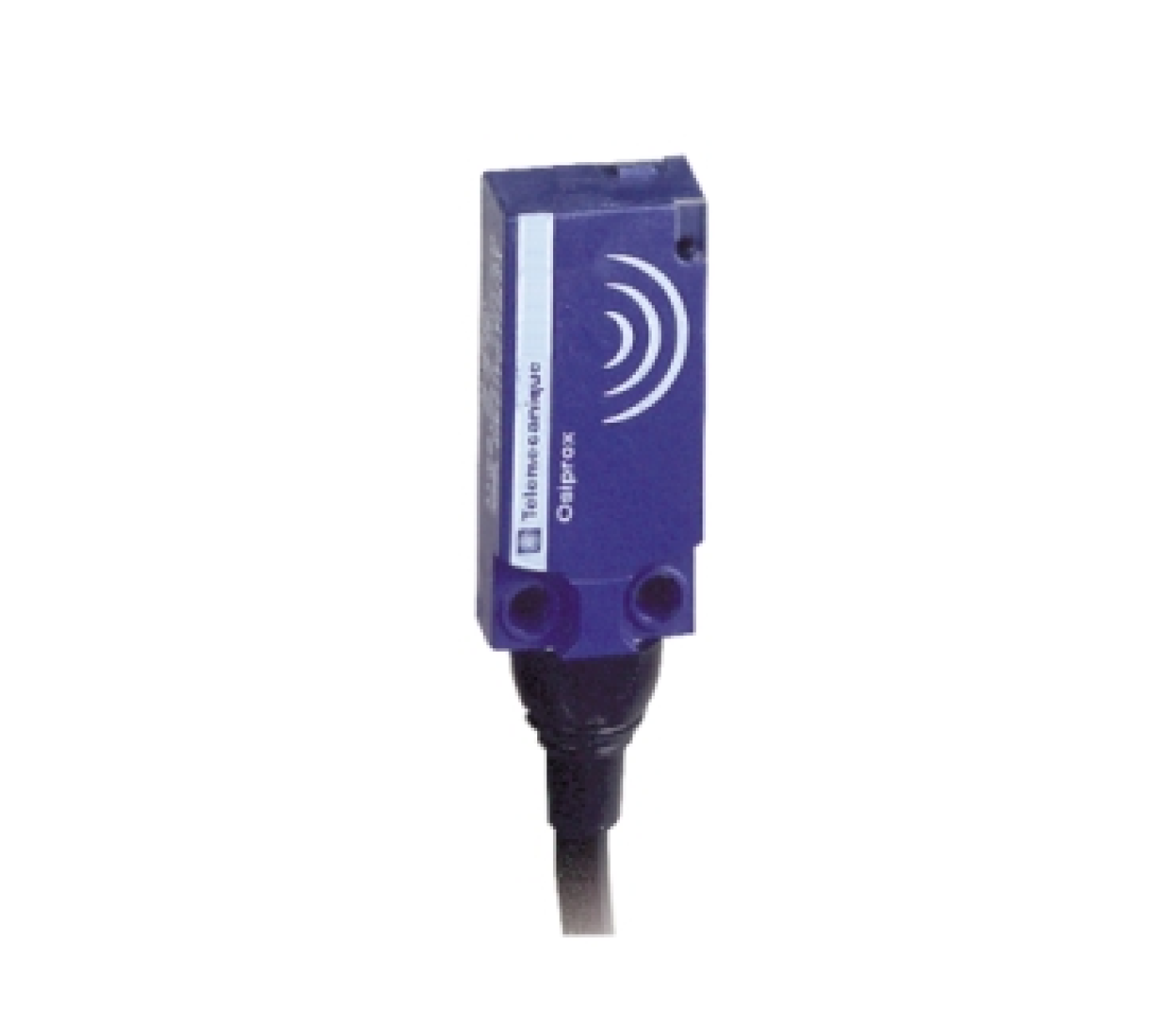

Inductive proximity sensors XS, inductive sensor XS7 15x32x8, PBT, Sn5mm, 12...24 VDC, cable 2 m.
Specifications |
XS7F1A1DAL2 |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS7 |
| Sensor design | Flat form 15 x 32 x 8 |
| Body type | Fixed |
| Size | 8 mm |
| Detector flush mounting acceptance | flush mountable |
| Material | Plastic |
| Enclosure material | PBT |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| Discrete output function | 1 NO |
| Output circuit type | DC |
| Electrical connection | Cable |
| Cable length | 2 m |
| [Us] rated supply voltage | 12...24 V DC reverse polarity protection |
| Switching capacity in mA | 1.5...100 mA DC overload and short-circuit protection |
| Detection face | Frontal |
| Front material | PBT |
| Operating zone | 0…4 mm |
| Cable composition | 2 x 0.34 mm² |
| Status LED | Output state 1 LED yellow) |
| Supply voltage limits | 10…36 V DC |
| Maximum residual current | 0.5 mA open state |
| Height | 32 mm |
| Width | 8 mm |
| Length | 15 mm |
| Net weight (Kg) | 0.055 kg |
