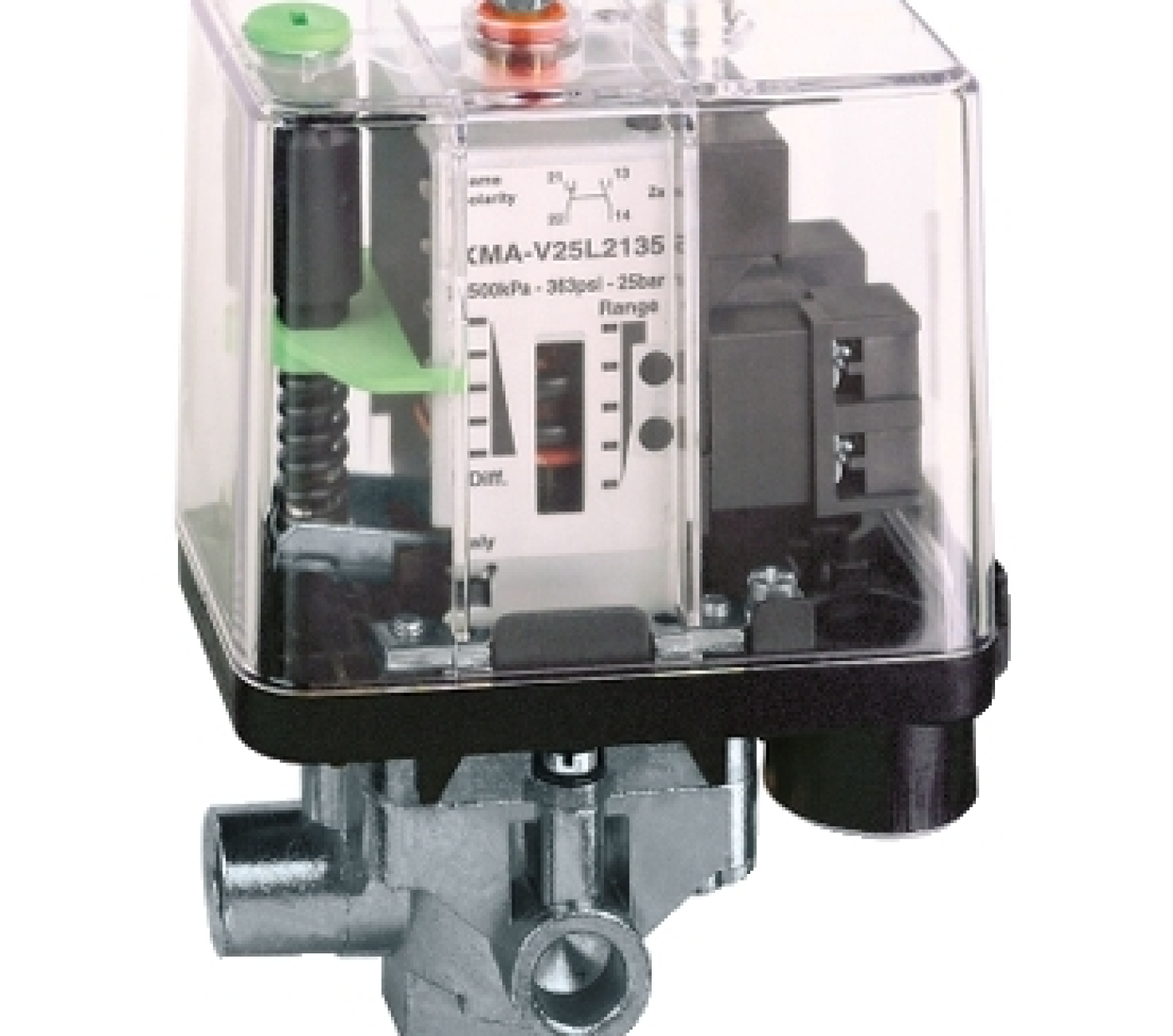

Pressure switch XMA 25 bar, adjustable scale 2 thresholds, 1 C/O.
Specifications |
XMAV25L2135 |
|
Range of product |
Telemecanique Pressure sensors XM |
|
Pressure sensor type |
Electromechanical pressure sensor |
| Pressure sensor name | XMA |
| Pressure rating | 25 bar |
| Contacts type and composition | 1 C/O snap action |
| Controlled fluid | Air (0…70 °C) Fresh water (0…70 °C) Sea water (0…70 °C) |
| Fluid connection type | G 1/4 (female) conforming to ISO 228 |
| Cable entry | 2 entries tapped for Pg 13.5 cable gland conforming to NF C 68-300 |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2.5 mm² |
| Electrical circuit type | Control circuit |
| [In] rated current | 3 A (Ue = 120 V), AC-15, B300 1.5 A (Ue = 240 V), AC-15, B300 0.1 A (Ue = 250 V), DC-13, R300 |
| Setting | External |
| Colour of cover | Transparent |
| Pressure switch type of operation | Regulation between 2 thresholds |
| Scale type | Fixed differential |
| Local display | Without |
| Enclosure material | PC impregnated with Lexan 123 |
| Adjustable range of switching point on rising pressure | 3.5…25 bar |
| Adjustable range of switching point on falling pressure | 0.1…20.5 bar |
| Pressure actuator | Diaphragm |
| Possible differential minimum at high setting | 4.5 bar |
| Possible differential minimum at low setting | 3.4 bar |
| Destruction pressure | 100 bar |
| Materials in contact with fluid | Chromated zinc alloy Canvas covered nitrile |
| Maximum permissible accidental pressure | 56.25 bar |
| Maximum permissible pressure - per cycle | 31.25 bar |
| Standards | IEC 60947-5-1 CE |
| Dimensions (mm) (H x W x D) |
133 x 57 x 97.5 mm |
| Net weight (Kg) | 0.65 Kg |
