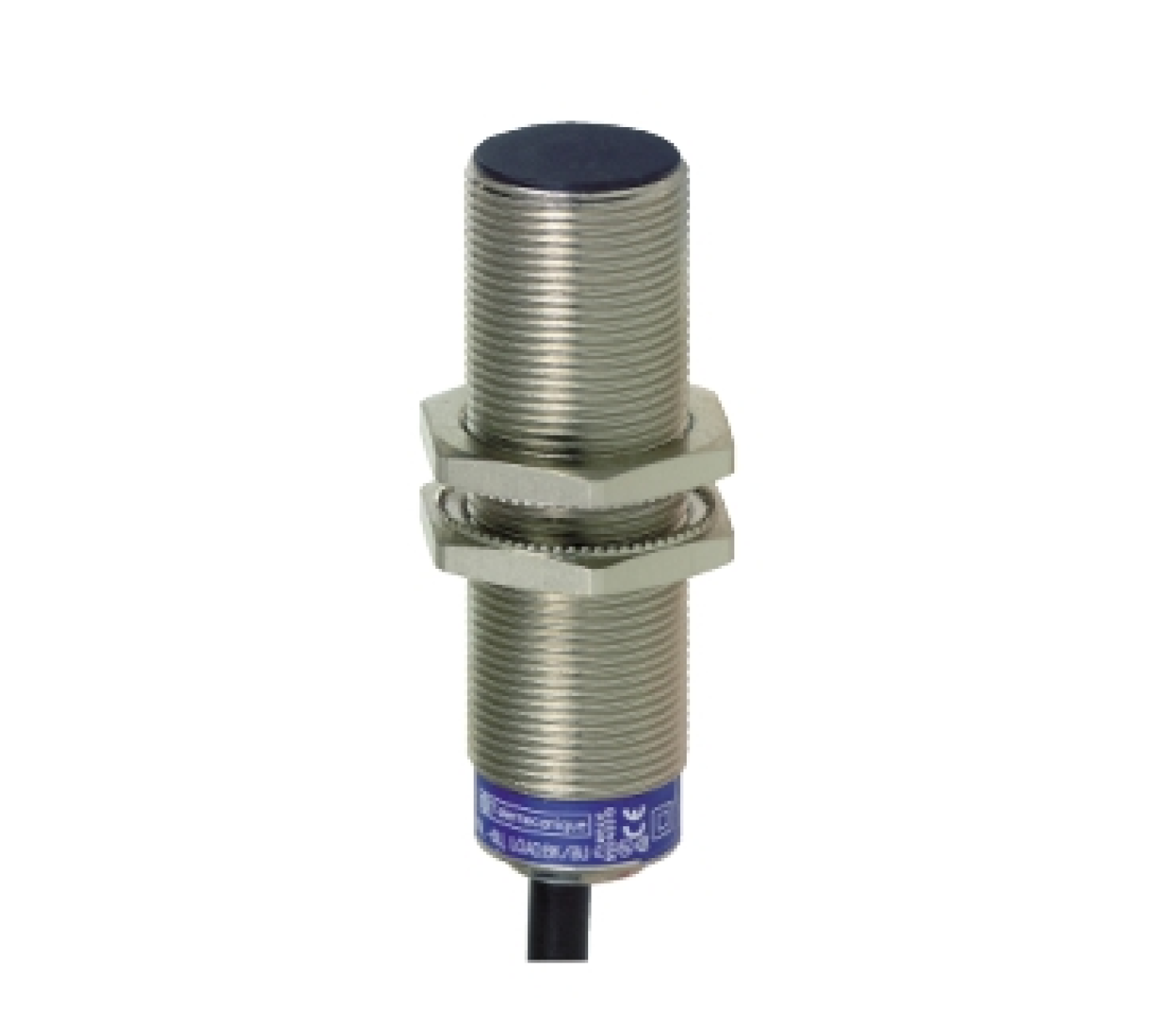

Inductive proximity sensors XS, inductive sensor XS5 M18, L62mm, brass, Sn5mm, 24...240VAC/DC, cable 2m.
Specifications |
XS518B1MAL2 |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS5 |
| Sensor design | Cylindrical M18 |
| Size | 62 mm |
| Detector flush mounting acceptance | Flush mountable |
| Body type | Fixed |
| Material | Metal |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| [Sn] nominal sensing distance | 5 mm |
| Discrete output function | 1 NO |
| Electrical connection | Cable |
| Cable length | 2 m |
| [Us] rated supply voltage | 24...240 V AC/DC with reverse polarity protection |
| Switching capacity in mA | 5...200 mA DC 5...300 mA AC |
| Thread type | M18 x 1 |
| Detection face | Frontal |
| Front material | PPS |
| Enclosure material | Nickel Plated Brass |
| Output circuit type | DC/AC |
| Operating zone | 0…4 mm |
| Cable composition | 2 x 0.34 mm² |
| Status LED | Output state: 1 LED (yellow) |
| Supply voltage limits | 20…264 V AC/DC |
| Threaded length | 52 mm |
| Length | 62 mm |
| Net weight (Kg) | 0.12 kg |
