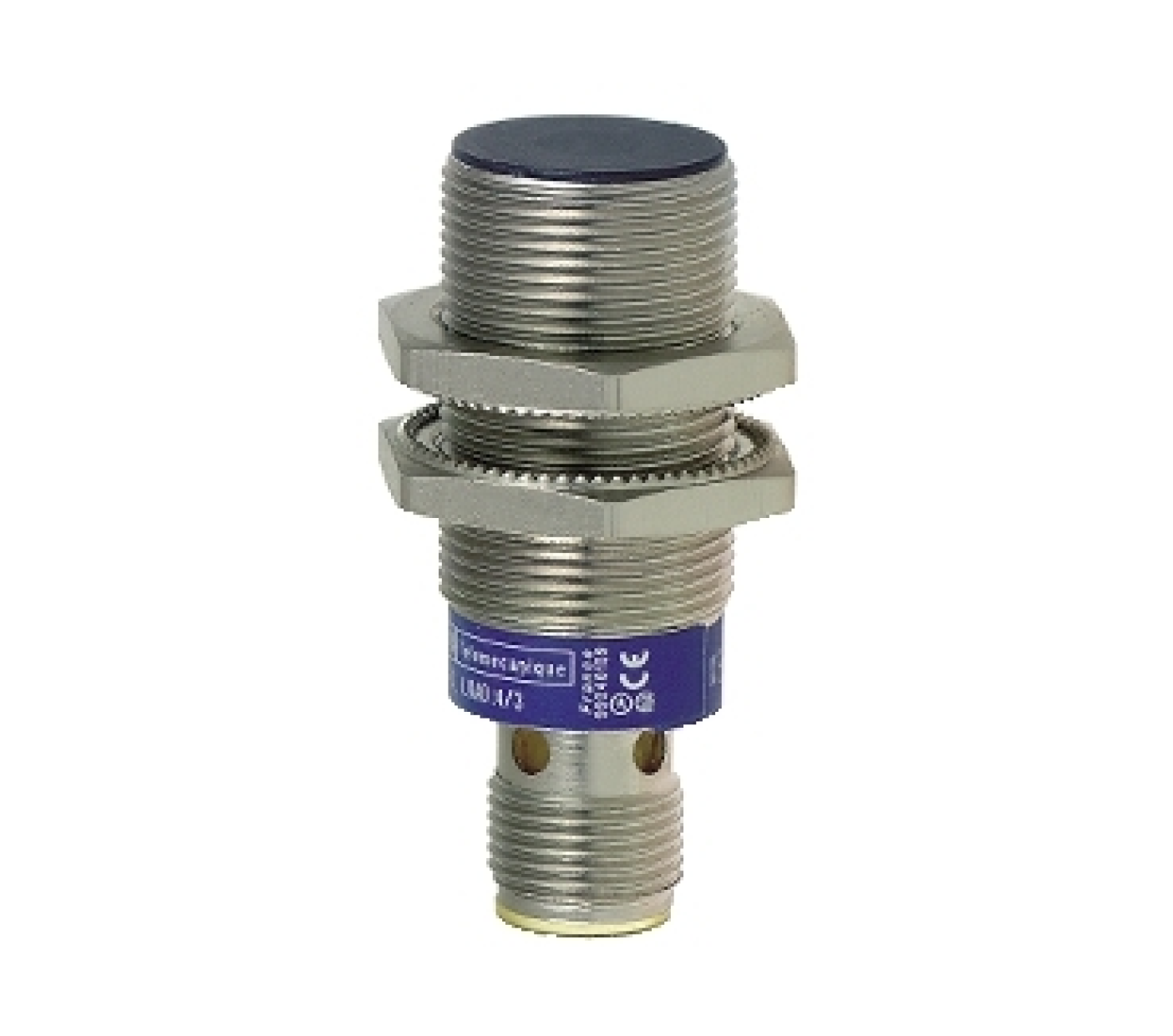

Inductive sensor XS1 M18, L51mm, brass, Sn5mm, 12..24VDC, M12.
Specifications |
XS1N18PC410D |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Device application | Mobile equipment |
| Sensor name | XS1 |
| Sensor design | Cylindrical M8 |
| Size | 51 mm |
| Body type | Fixed |
| Detector flush mounting acceptance | Flush mountable |
| Material | Stainless steel |
| Enclosure material | Nickel plated brass |
| Type of output signal | Discrete |
| Wiring technique | 4-wire |
| [Sn] nominal sensing distance | 5 mm |
| Discrete output function | 1 NO + 1 NC |
| Electrical connection | Male connector M12, 4 pins |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| Thread type | M18 x 1 |
| Detection face | Frontal |
| Front material | PPS |
| Output circuit type | DC |
| Operating zone | 0…4 mm |
| Status LED | Output state: 1 LED (yellow) |
| Supply voltage limits | 9…36 V DC |
| Threaded length | 28 mm |
| Length | 51 mm |
| Net weight (Kg) | 0.04 kg |
