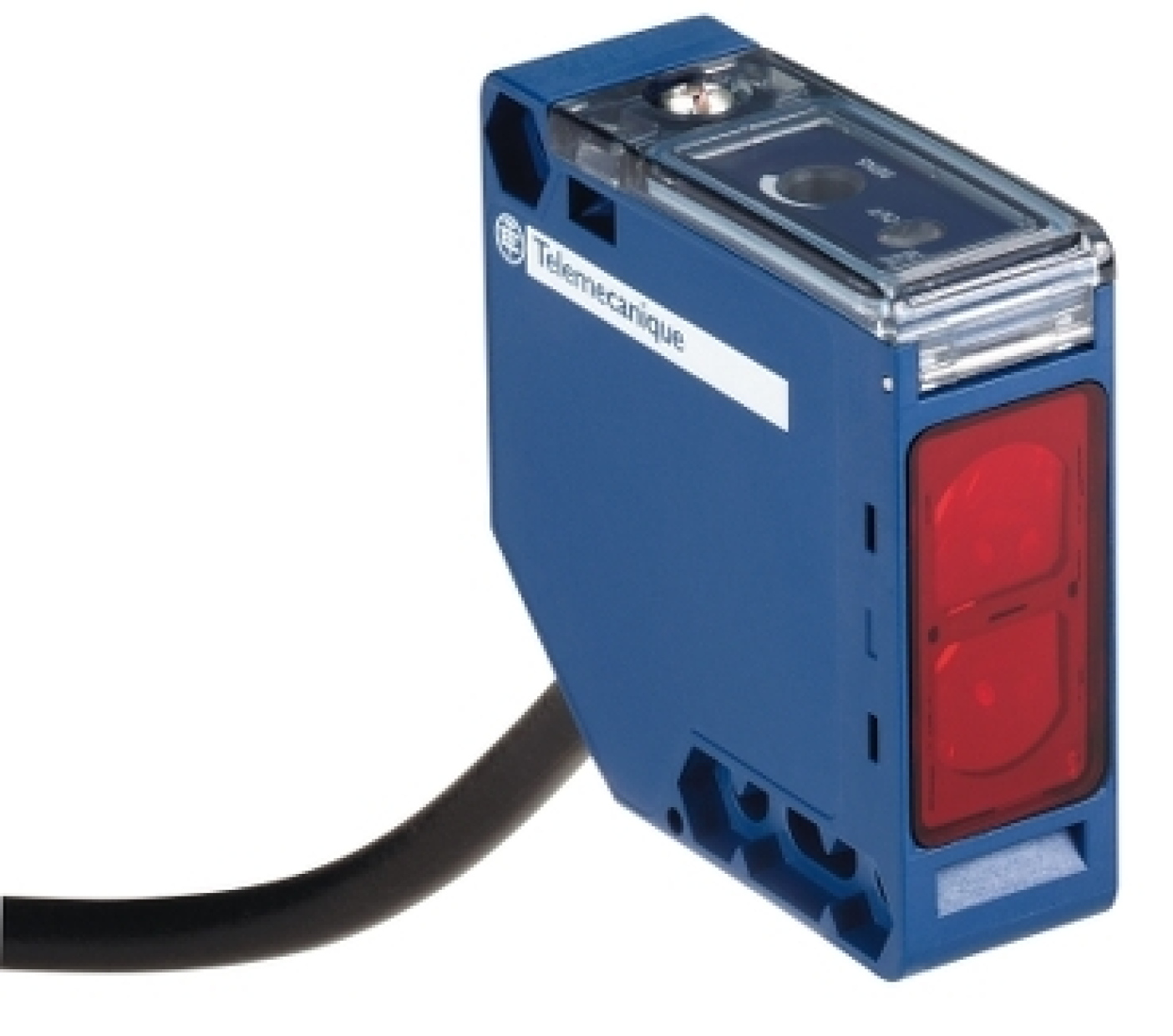

Photoelectric sensors XU, XUK, diffuse, Sn 1 m, 12...24 VDC, cable 2 m.
Specifications |
XUK5APANL2 |
| Range of product | Telemecanique Photoelectric sensors XU |
| Series name | General purpose single mode |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XUK |
| Sensor design | Compact 50 x 50 |
| Detection system | Diffuse |
| Material | Plastic |
| Type of output signal | Discrete |
| Supply circuit type | DC |
| Wiring Technique | 3-wire |
| Discrete output type | PNP |
| Discrete output function | 1 NO |
| Electrical connection | Cable |
| Cable length | 2 m |
| [Sn] nominal sensing distance | 1 m diffuse |
| Emission | Infrared diffuse |
| Enclosure Material | PBT |
| Lens material | PMMA |
| Maximum sensing distance | 1.5 m diffuse |
| Output type | Solid state |
| Status LED | 1 LED (yellow) for output state |
| [Us] rated supply voltage | 12...24 V DC |
| Current consumption | <= 35 mA no-load |
| Setting-up | Without sensitivity adjustment |
| Depth | 50 mm |
| Height | 50 mm |
| Width | 18 mm |
| Net Weight | 0.07 kg |
