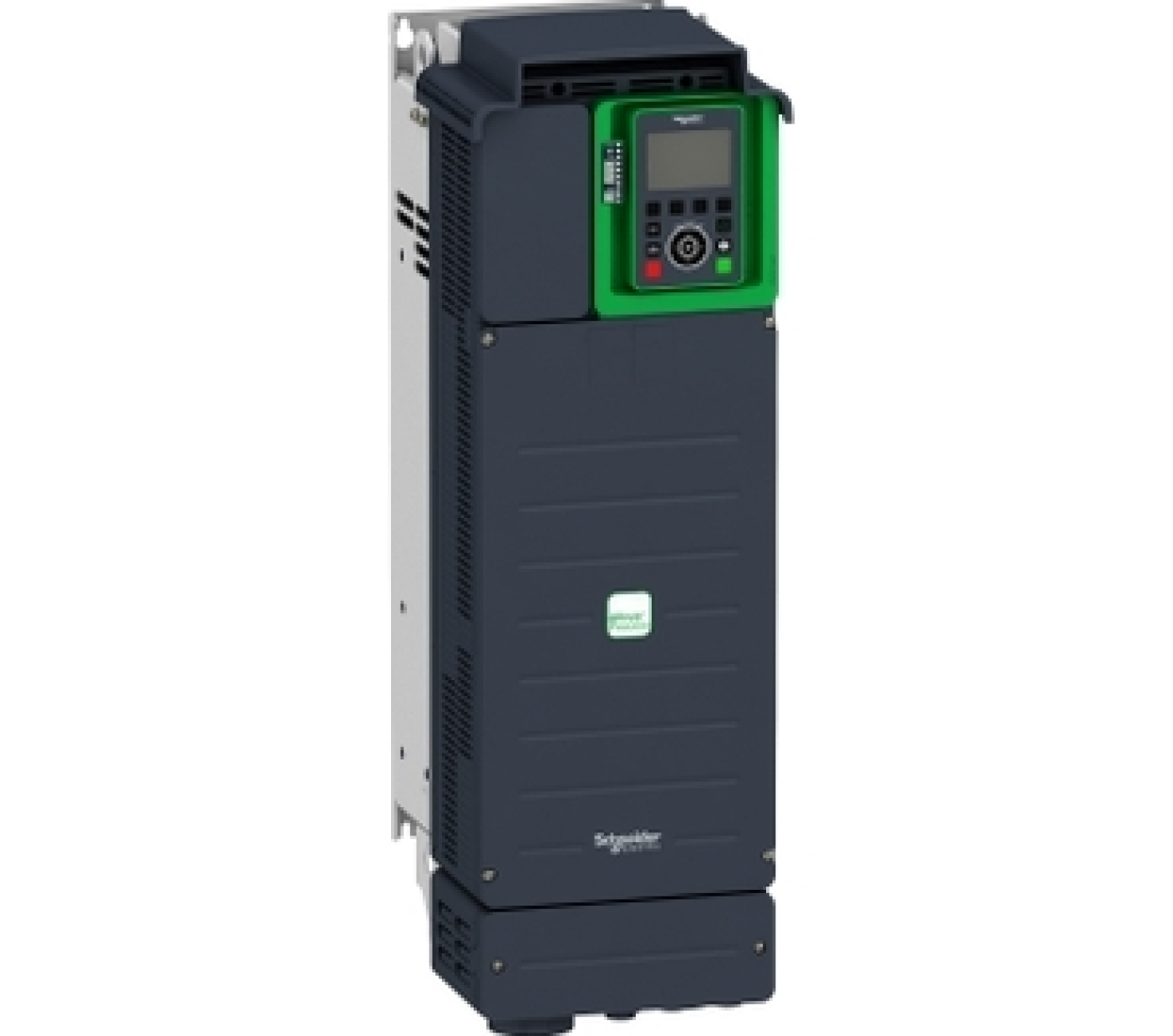

Variable Speed Drive, Altivar Process ATV930, 15kW, 200 to 240V, with braking unit, IP21.
Specifications: ATV930D15M3 |
||
| Range | Altivar Process ATV900 | |
| Country of Origin (Estimated) | India (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if need) | |
| Product name & Device short name | ATV930 | |
| Product specific application | Process for industrial | |
| Product destination | Synchronous motors Asynchronous motors |
|
| Mounting mode | Wall mount | |
| Network number of phases | 3 phase | |
| Supply voltage limits | 200...240 V - 15...10 % | |
| IP degree of protection | IP21 | |
| EMC filter | Integrated With EMC plate option |
|
| Motor power kW | 15.0 kW for normal duty 11.0 kW for heavy duty |
|
| Continuous output current | 63.4 A at 4 kHz for normal duty 46.8 A at 4 kHz for heavy duty |
|
| Communication port protocol | EtherNet/IP Modbus serial Modbus TCP |
|
| Connector type | 2 RJ45 1 RJ45 |
|
| Method of access | Slave Modbus TCP | |
| Output frequency | 599 Hz | |
| Protection type | Thermal protection: motor Safe torque off: motor Motor phase break: motor Thermal protection: drive Safe torque off: drive Overheating: drive Overcurrent between output phases and earth: drive Overload of output voltage: drive Short-circuit protection: drive Motor phase break: drive Overvoltages on the DC bus: drive Line supply overvoltage: drive Line supply undervoltage: drive Line supply phase loss: drive Overspeed: drive Break on the control circuit: drive |
|
| Dimensions (mm) (H x W x D) |
673x226x274 mm | |
| Net weight (Kg) | 27.3 Kg | |
