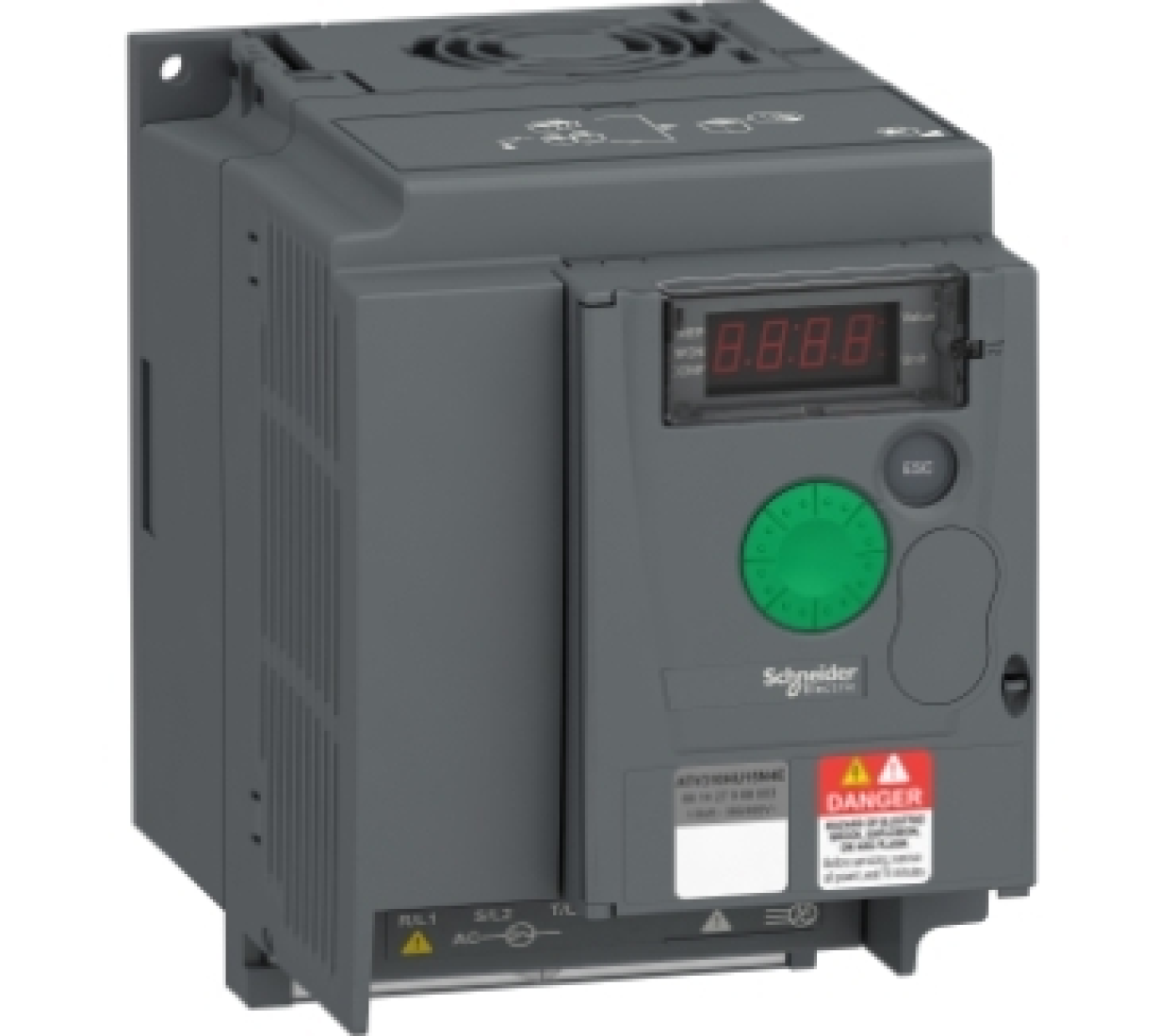

Variable Speed Drive, Easy Altivar 310, 1.5kW, 2hp, 380 to 460V, 3 phase, without filter
Specifications: ATV310HU15N4E |
||
| Range | Easy Altivar 310 | |
| Country of Origin (Estimated) | Indonesia (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if need) | |
| Product name & Device short name | ATV310 | |
| Device application | Simple machine | |
| Assembly style | With heat sink | |
| Network number of phases | Three phase | |
| Output voltage | 380...460 V three phase | |
| Motor power kW | 1.5 kW for heavy duty | |
| Motor power HP | 2 HP for heavy duty | |
| EMC filter | Without EMC filter | |
| Communication port protocol | Modbus | |
| Connector type | RJ45 (on front face) for Modbus | |
| Line current | 6.5 A at 380 V (heavy duty) 5.4 A at 460 V (heavy duty) |
|
| Speed drive output frequency | 0.5…400 Hz | |
| Speed range | 1…20 for asynchronous motor | |
| Transient overtorque | 170…200 % of nominal motor torque depending on drive rating and type of motor | |
| Braking torque | Up to 70 % of nominal motor torque without braking resistor | |
| Protection type | Line supply overvoltage Line supply undervoltage Overcurrent between output phases and earth Overheating protection Short-circuit between motor phases Against input phase loss in three-phase Thermal motor protection via the drive by continuous calculation of I²t |
|
| Analogue input number | 1 | |
| Analogue input type | Configurable current AI1 0...20 mA 250 Ohm Configurable voltage AI1 0...10 V 30 kOhm Configurable voltage AI1 0...5 V 30 kOhm |
|
| Discrete input number | 4 | |
| Discrete input type | Programmable LI1...LI4 24 V 18...30 V | |
| Discrete input logic | Negative logic (sink), > 16 V (state 0), < 10 V (state 1), input impedance 3.5 kOhm Positive logic (source), 0...< 5 V (state 0), > 11 V (state 1) |
|
| Analogue output number | 1 | |
| Analogue output type | AO1 software-configurable voltage: 0...10 V AC 0...10 V 0…0.02 A, impedance: 470 Ohm, resolution 8 bits AO1 software-configurable current: 0...20 mA, impedance: 800 Ohm, resolution 8 bits |
|
| Discrete output number | 2 | |
| Discrete output type | Logic output LO+, LO- Protected relay output R1A, R1B, R1C 1 C/O |
|
| Dimensions (mm) (H x W x D) |
143 x 105 x 151mm | |
| Net weight (Kg) | 1.1Kg | |
