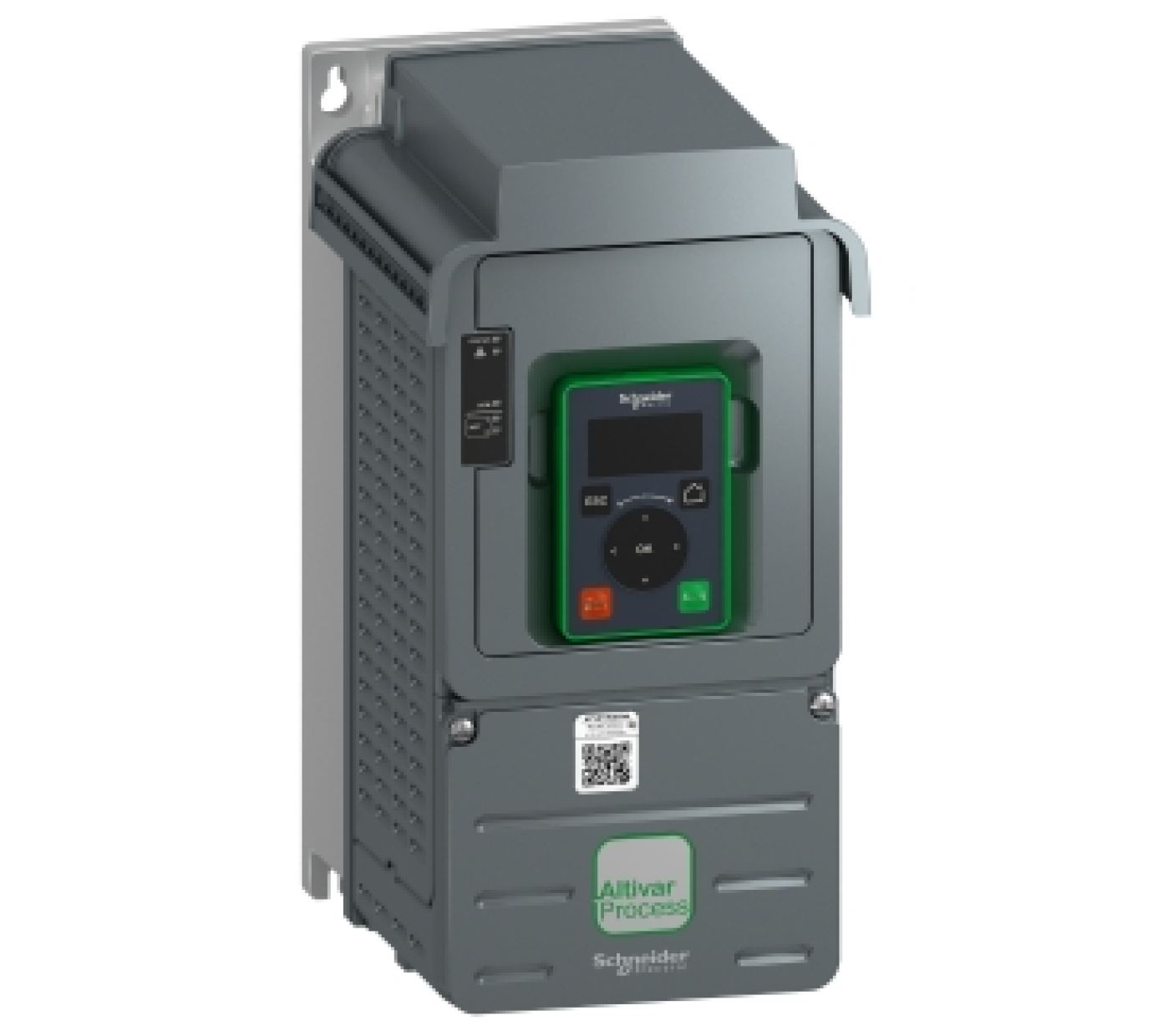

Variable Speed Drive ATV610 - 0.75 kW / 1HP - 380...415 V - IP20
Specifications: ATV610U07N4 |
||
| Range | Easy Altivar 610 | |
| Country of Origin (Estimated) | Indonesia (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if need) | |
| Product name & Device short name | ATV610 | |
| Device application | Fan, pump, compressor, conveyor | |
| Product destination | Asynchronous motors Synchronous motors |
|
| Mounting mode | Cabinet mount | |
| Network number of phases | 3 phase | |
| Output voltage | 380...460 V - 15...10 % | |
| IP degree of protection | IP20 | |
| EMC filter | Integrated conforming to IEC 61800-3 category C3 with 50 m | |
| Motor power kW | 0.75 kW for normal duty 0.37 kW for heavy duty |
|
| Motor power HP | 1 Hp for normal duty 0.5 Hp for heavy duty |
|
| Line current | 3.1 A at 380 V (normal duty) 2.6 A at 460 V (normal duty) 1.7 A at 380 V (heavy duty) 1.4 A at 460 V (heavy duty) |
|
| Communication port protocol | Modbus serial | |
| Option card | Slot A: communication card, Profibus DP V1 Slot A: digital or analog I/O extension card Slot A: relay output card |
|
| Method of access | Slave | |
| Output frequency | 0.1…500 Hz | |
| Protection type | Thermal protection: motor Motor phase break: motor Thermal protection: drive Overheating: drive Overcurrent between output phases and earth: drive Overload of output voltage: drive Short-circuit protection: drive Motor phase break: drive Overvoltages on the DC bus: drive Line supply overvoltage: drive Line supply undervoltage: drive Line supply phase loss: drive Overspeed: drive Break on the control circuit: drive |
|
| Dimensions (mm) (H x W x D) |
297 mm (350 mm with EMC plate) x145x203mm | |
| Net weight (Kg) | 3.135Kg | |
