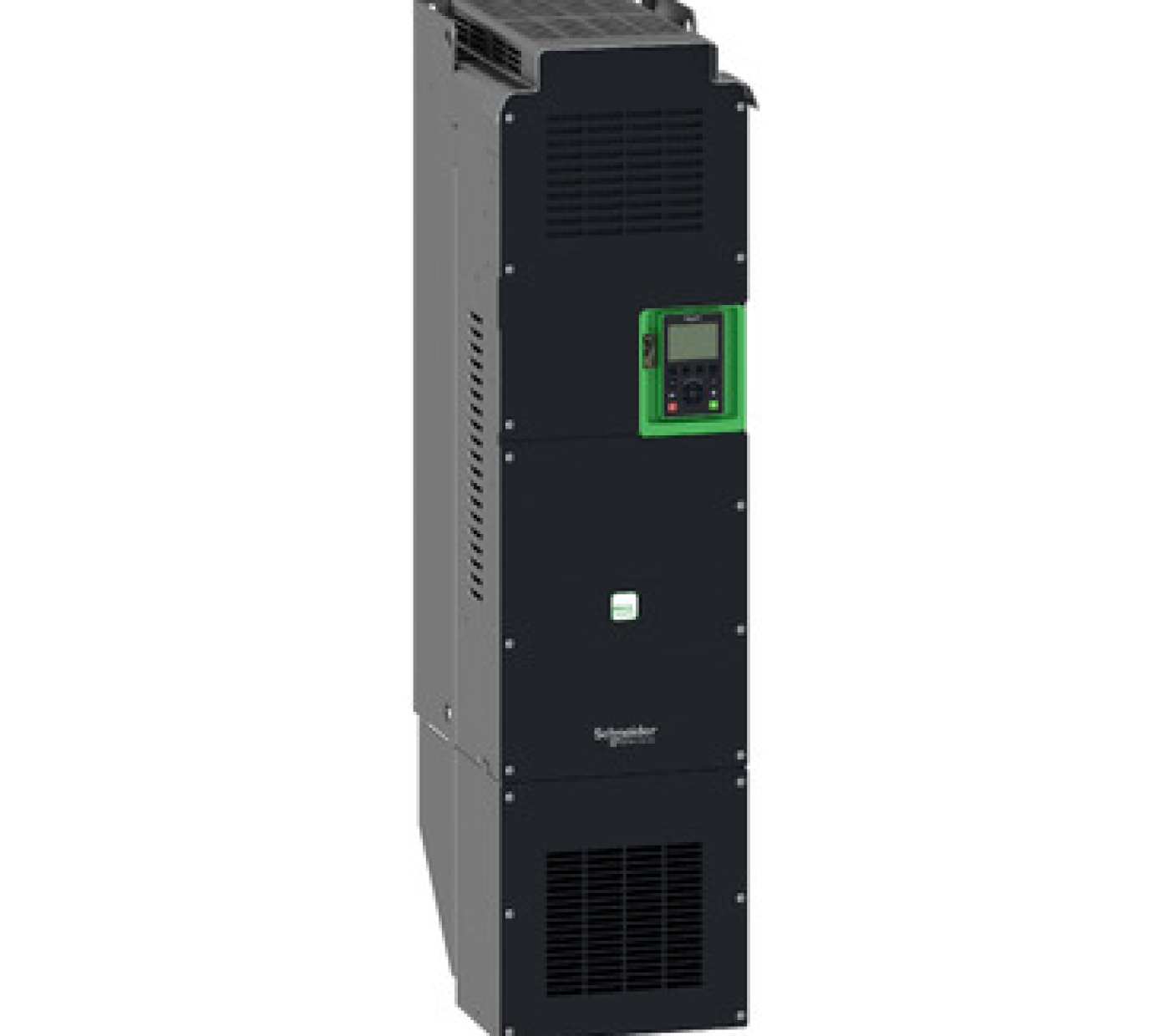

Variable Speed Drive ATV630 - 110kW/150HP - 380...480V - IP00.
Specifications: ATV630C11N4 |
||
| Range | Altivar Process ATV600 | |
| Country of Origin (Estimated) | Indonesia (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if need) | |
| Product name & Device short name | ATV630 | |
| Device application | Building - HVAC compressor centrifugal Food and beverage processing other application Mining mineral and metal fan Mining mineral and metal pump Oil and gas fan Water and waste water other application Building - HVAC screw compressor Food and beverage processing pump Food and beverage processing fan Food and beverage processing atomization Oil and gas electro submersible pump (ESP) Oil and gas water injection pump Oil and gas jet fuel pump Oil and gas compressor for refinery Water and waste water centrifuge pump Water and waste water positive displacement pump Water and waste water electro submersible pump (ESP) Water and waste water screw pump Water and waste water lobe compressor Water and waste water screw compressor Water and waste water compressor centrifugal Water and waste water fan Water and waste water conveyor Water and waste water mixer |
|
| Product destination | Asynchronous motors Synchronous motors |
|
| Enclosure mounting | Wall mounted | |
| Mounting mode | Wall mount | |
| Network number of phases | 3 phase | |
| Output voltage | 380...480 V - 15...10 % | |
| IP degree of protection | IP00 conforming to IEC 61800-5-1 IP00 conforming to IEC 60529 IP21 (with kit VW3A9704) conforming to IEC 61800-5-1 IP21 (with kit VW3A9704) conforming to IEC 60529 |
|
| EMC filter | Integrated with 150 m conforming to IEC 61800-3 category C3 | |
| Motor power kW | 110 kW (normal duty) 90 kW (heavy duty) |
|
| Motor power HP | 150 hp normal duty 125 hp heavy duty |
|
| Line current | 201 A at 380 V (normal duty) 165 A at 480 V (normal duty) 170 A at 380 V (heavy duty) 143 A at 480 V (heavy duty) |
|
| Communication port protocol | Modbus TCP Ethernet Modbus serial |
|
| Option card | Slot A: communication module, Profibus DP V1 Slot A: communication module, PROFINET Slot A: communication module, DeviceNet Slot A: communication module, Modbus TCP/EtherNet/IP Slot A: communication module, CANopen daisy chain RJ45 Slot A: communication module, CANopen SUB-D 9 Slot A: communication module, CANopen screw terminals Slot A/slot B: digital and analog I/O extension module Slot A/slot B: output relay extension module Slot A: communication module, Ethernet IP/Modbus TCP/MD-Link Communication module, BACnet MS/TP Communication module, Ethernet Powerlink |
|
| Method of access | Slave Modbus TCP | |
| Safety function | STO (safe torque off) SIL 3 | |
| Output frequency | 0.1…500 Hz | |
| Protection type | Thermal protection: motor Safe torque off: motor Motor phase break: motor Thermal protection: drive Safe torque off: drive Overheating: drive Overcurrent between output phases and earth: drive Overload of output voltage: drive Short-circuit protection: drive Motor phase break: drive Overvoltages on the DC bus: drive Line supply overvoltage: drive Line supply undervoltage: drive Line supply phase loss: drive Overspeed: drive Break on the control circuit: drive |
|
| Dimensions (mm) (H x W x D) |
852 x 320 x 390mm | |
| Net weight (Kg) | 82Kg | |
