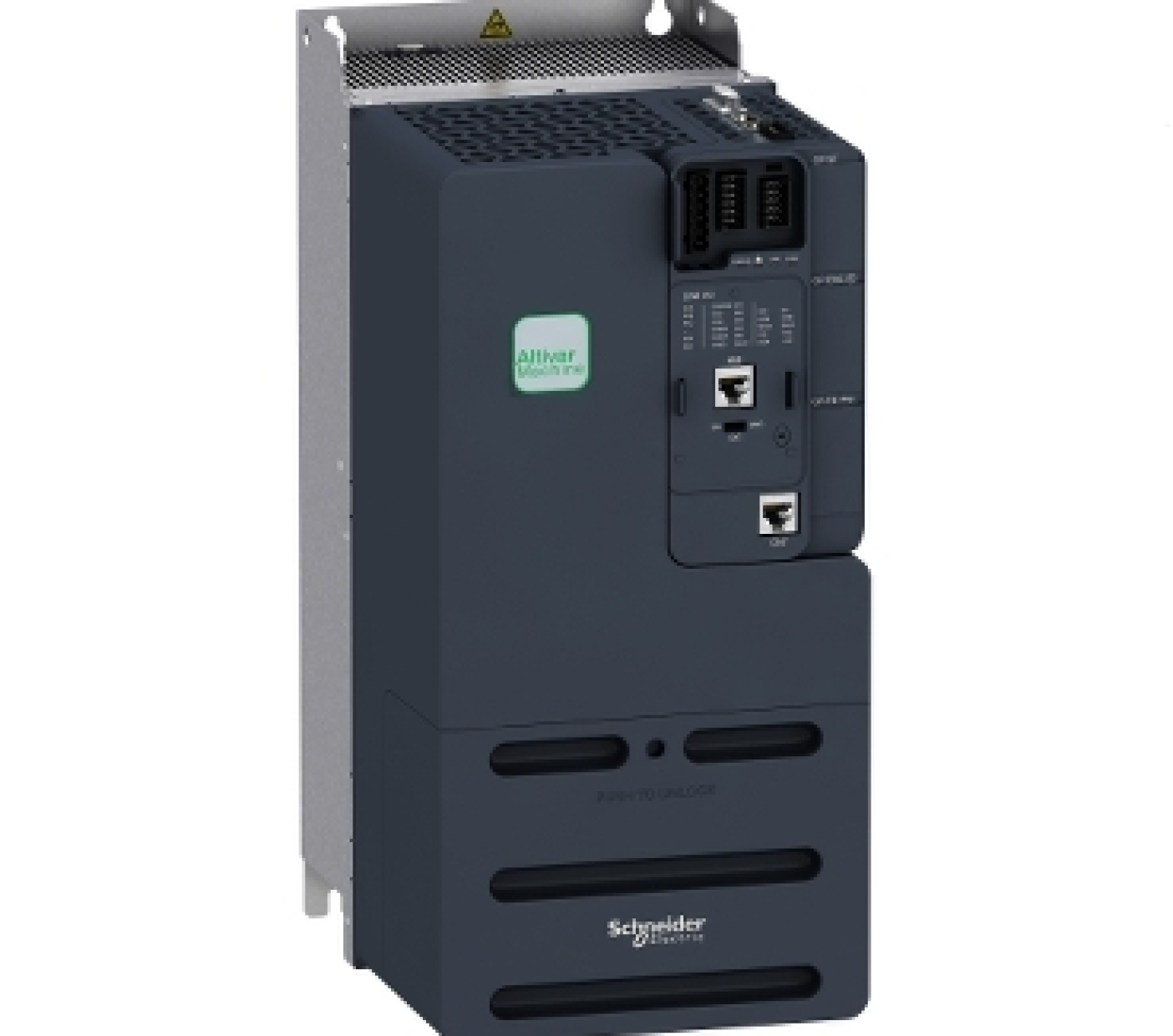

Specifications: ATV340D11N4 |
||
| Range | Altivar Machine ATV340 | |
| Country of Origin (Estimated) | Indonesia (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if need) | |
| Product name & Device short name | ATV340 | |
| Product specific application | Machine | |
| Mounting mode | Cabinet mount | |
| Network number of phases | 3 phase | |
| Supply voltage limits | 380...500 V - 15...10 % | |
| IP degree of protection | IP20 | |
| EMC filter | Class C3 EMC filter integrated | |
| Motor power kW | 15 kW for normal duty 11 kW for heavy duty |
|
| Motor power HP | 20 hp for normal duty 15 hp for heavy duty |
|
| Nominal output current | 24.0 A | |
| Communication port protocol | Modbus serial | |
| Option card | Communication module, Profibus DP V1 Communication module, PROFINET Communication module, DeviceNet Communication module, CANopen Communication module, EtherCAT |
|
| Connector type | 1 RJ45 | |
| Method of access | Slave Modbus RTU | |
| Transient overtorque | 170…200 % of nominal motor torque | |
| Output frequency | 0.599 kHz | |
| Protection type | Thermal protection: motor Safe torque off: motor Motor phase loss: motor Thermal protection: drive Safe torque off: drive Overheating: drive Overcurrent: drive Output overcurrent between motor phase and earth: drive Output overcurrent between motor phases: drive Short-circuit between motor phase and earth: drive Short-circuit between motor phases: drive Motor phase loss: drive DC Bus overvoltage: drive Line supply overvoltage: drive Line supply undervoltage: drive Input supply loss: drive Exceeding limit speed: drive Break on the control circuit: drive |
|
| Dimensions (mm) (H x W x D) |
385x180x249 mm | |
| Net weight (Kg) | 9.5 Kg | |
