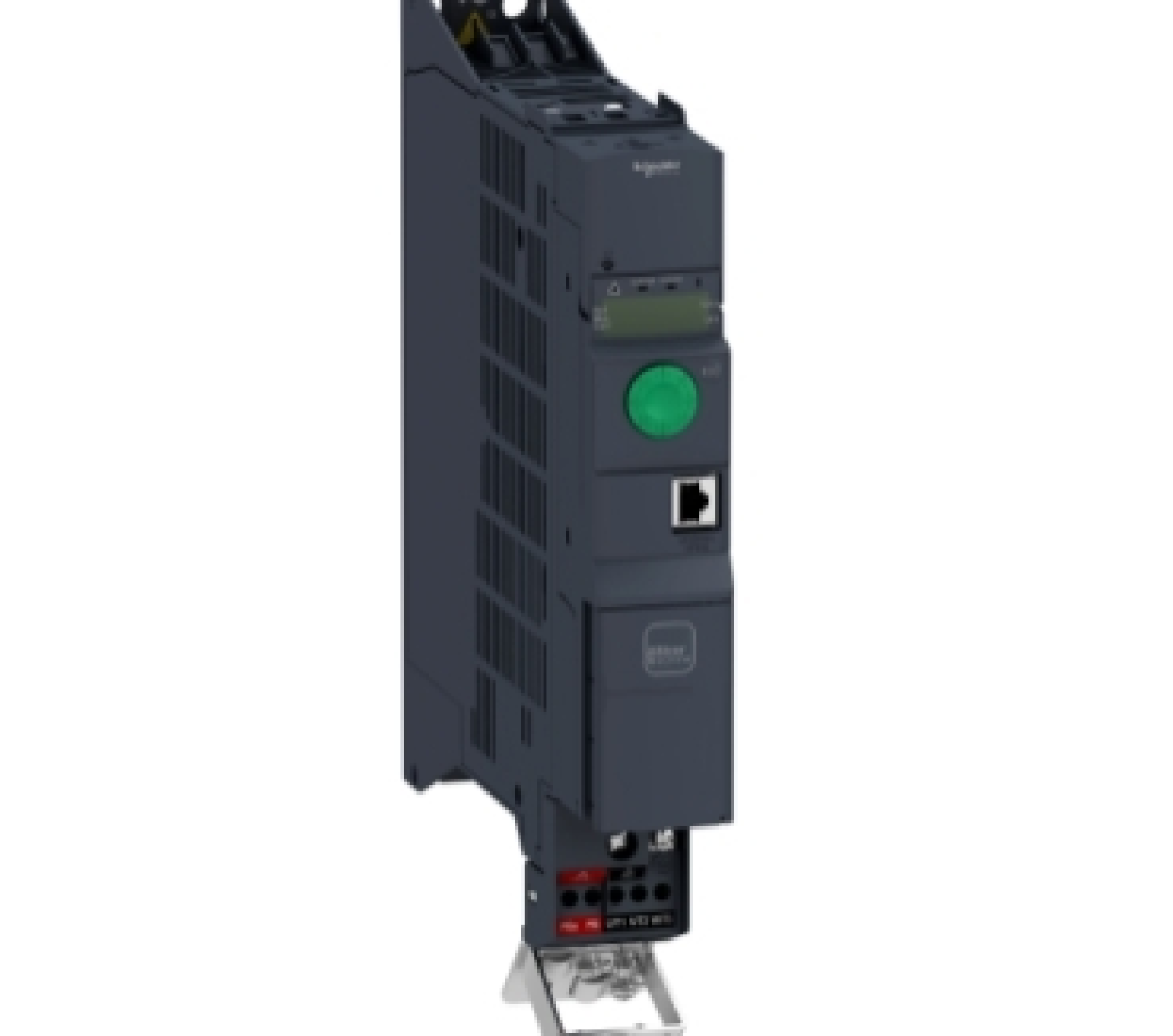

Specifications: ATV320U04M2B |
||
| Range | Altivar 320 | |
| Country of Origin (Estimated) | Indonesia (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if need) | |
| Product name & Device short name | ATV320 | |
| Variable speed drive application selection | Complex machines | |
| Format of the drive | Book | |
| Mounting mode | Cabinet mount | |
| Network number of phases | 1 phase | |
| Supply voltage limits | 200...240 V - 15...10 % | |
| IP degree of protection | IP20 | |
| EMC filter | Class C2 EMC filter integrated | |
| Motor power kW | 0.37 kW for heavy duty | |
| Nominal output current | 3.3 A | |
| Communication port protocol | Modbus serial CANopen |
|
| Option card | Communication module, CANopen Communication module, EtherCAT Communication module, Profibus DP V1 Communication module, PROFINET Communication module, Ethernet Powerlink Communication module, EtherNet/IP Communication module, DeviceNet |
|
| Method of access | Slave CANopen | |
| Transient overtorque | 170…200 % of nominal motor torque | |
| Output frequency | 0.599 kHz | |
| Protection type | Input phase breaks: drive Overcurrent between output phases and earth: drive Overheating protection: drive Short-circuit between motor phases: drive Thermal protection: drive |
|
| Dimensions (mm) (H x W x D) |
325x45x245 mm | |
| Net weight (Kg) | 2.4 Kg | |
