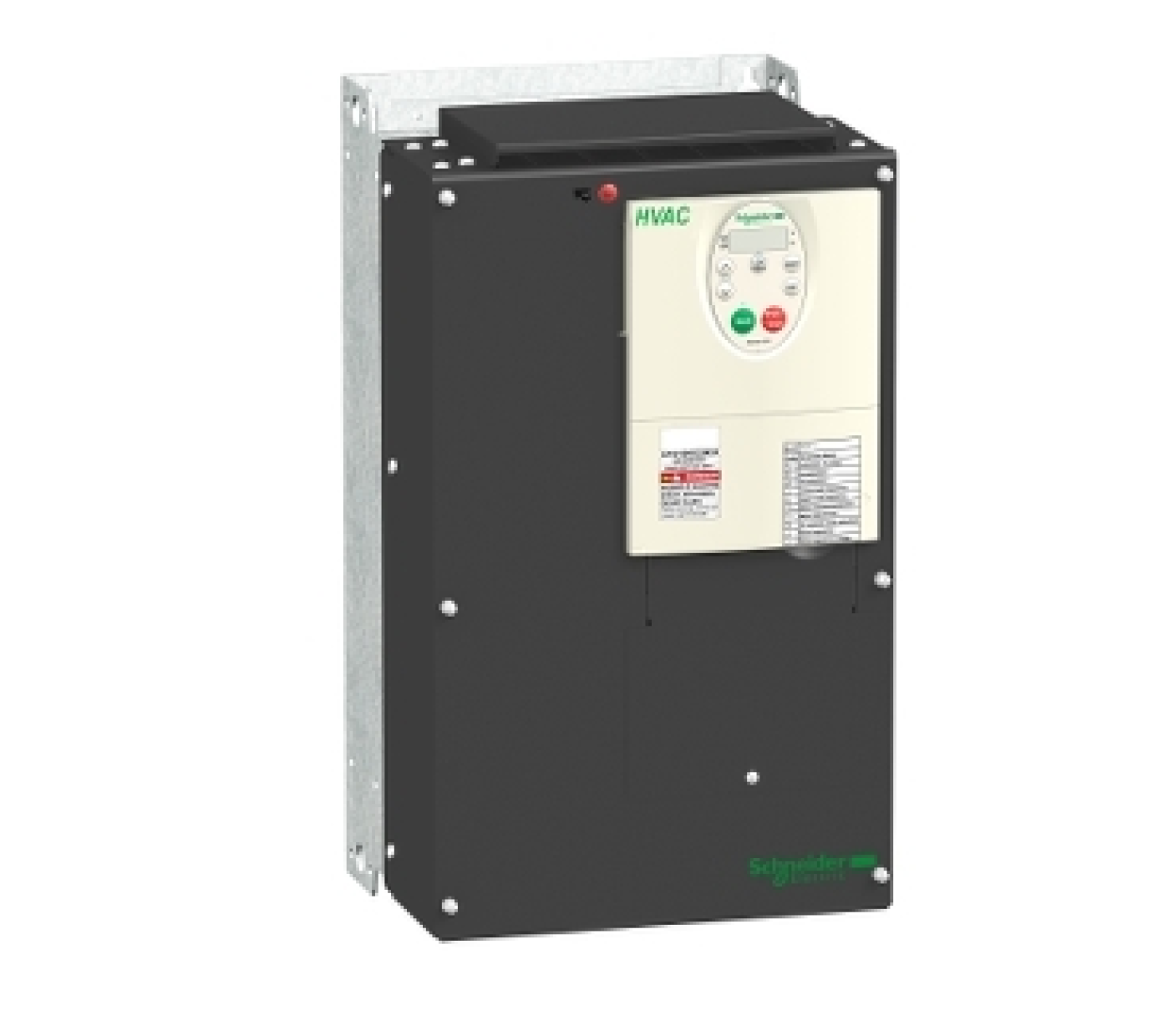

Variable speed drive ATV212 - 22kW - 15hp - 480VAC - 3ph - EMC - IP21
Specifications: ATV212HD22N4 |
||
| Range | Altivar 212 | |
| Country of Origin (Estimated) | Indonesia (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if need) | |
| Product name & Device short name | ATV212 | |
| Variable speed drive application selection | Building - HVAC compressor for scroll Building - HVAC fan Building - HVAC pump |
|
| Product destination | Asynchronous motors | |
| Mounting mode | Cabinet mount | |
| Network number of phases | 3 phase | |
| Supply voltage limits | 323…528 V | |
| IP degree of protection | IP21 | |
| EMC filter | Class C2 EMC filter integrated | |
| Motor power kW | 22 kW | |
| Motor power HP | 30 HP | |
| Line current | 33.1 A at 480 V 41.6 A at 380 V |
|
| Communication port protocol | Modbus LonWorks APOGEE FLN BACnet METASYS N2 |
|
| Option card | Communication card LonWorks | |
| Method of access | Slave | |
| Output frequency | 0.1…500 Hz | |
| Protection type | Overheating protection: drive Thermal power stage: drive Short-circuit between motor phases: drive Input phase breaks: drive Overcurrent between output phases and earth: drive Overvoltages on the DC bus: drive Break on the control circuit: drive Against exceeding limit speed: drive Line supply overvoltage and undervoltage: drive Line supply undervoltage: drive Against input phase loss: drive Thermal protection: motor Motor phase break: motor With PTC probes: motor |
|
| Dimensions (mm) (H x W x D) |
420x240x214mm | |
| Net weight (Kg) | 26.4Kg | |
