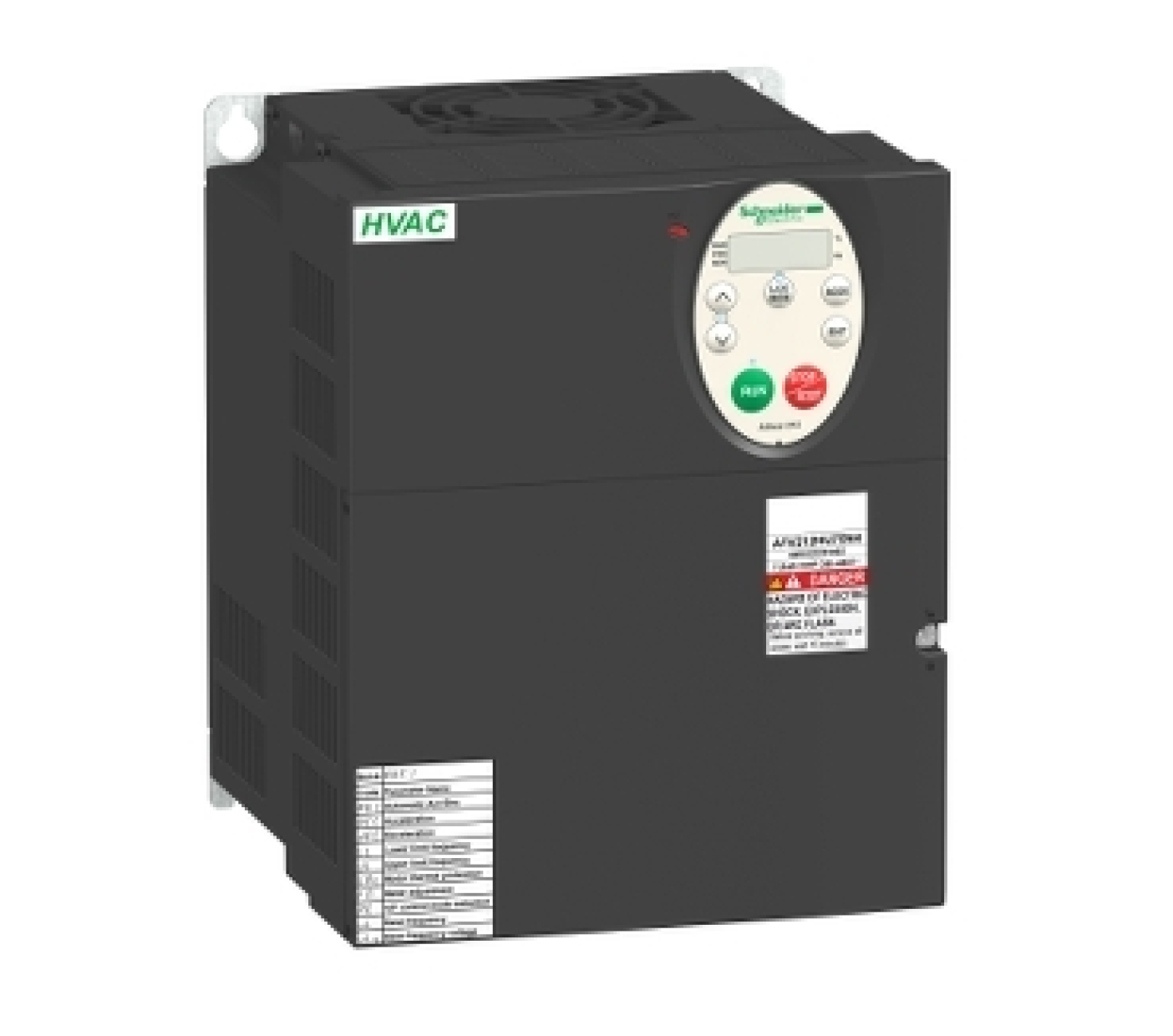

Variable speed drive ATV212 - 0.75kW - 1Hp - 480VAC - 3pha - EMC - IP21
Specifications: ATV212H075N4 |
||
| Range | Altivar 212 | |
| Country of Origin (Estimated) | Indonesia (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if need) | |
| Product name & Device short name | ATV212 | |
| Variable speed drive application selection | Building - HVAC compressor for scroll Building - HVAC fan Building - HVAC pump |
|
| Product destination | Asynchronous motors | |
| Mounting mode | Cabinet mount | |
| Network number of phases | 3 phase | |
| Supply voltage limits | 323…528 VAC | |
| IP degree of protection | IP21 | |
| EMC filter | Class C2 EMC filter integrated | |
| Motor power kW | 0.75 Kw | |
| Motor power HP | 1 Hp | |
| Line current | 1.4 A at 480 VAC 1.7 A at 380 VAC |
|
| Communication port protocol | Modbus METASYS N2 APOGEE FLN LonWorks BACnet |
|
| Option card | Communication card for LonWorks | |
| Method of access | Slave | |
| Output frequency | 0.1…500 Hz | |
| Protection type | Overheating protection: drive Thermal power stage: drive Short-circuit between motor phases: drive Input phase breaks: drive Overcurrent between output phases and earth: drive Overvoltages on the DC bus: drive Break on the control circuit: drive Against exceeding limit speed: drive Line supply overvoltage and undervoltage: drive Line supply undervoltage: drive Against input phase loss: drive Thermal protection: motor Motor phase break: motor With PTC probes: motor |
|
| Dimensions (mm) (H x W x D) |
143x107x150mm | |
| Net weight (Kg) | 2Kg | |
