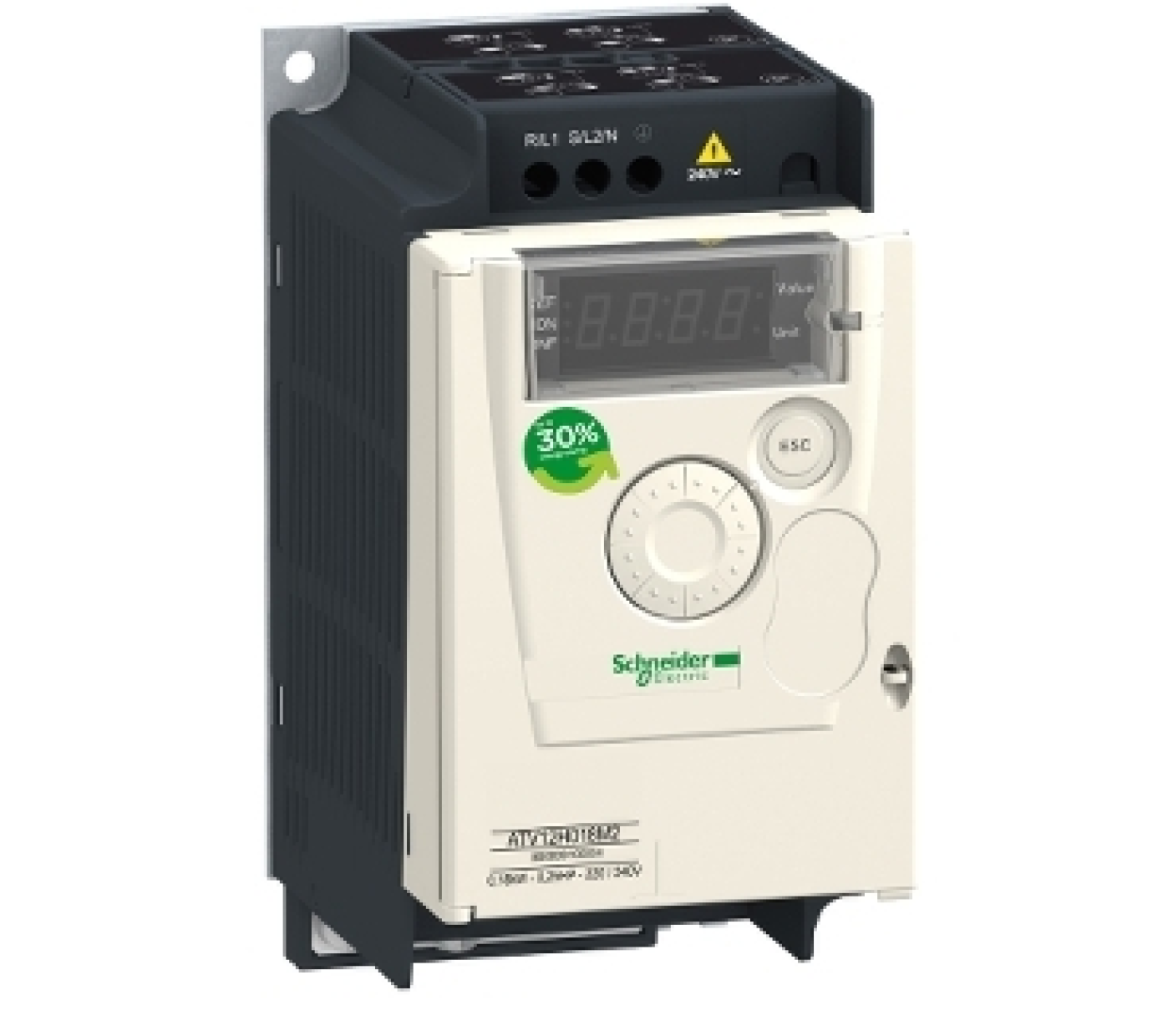

Variable Seeed Drive ATV12 - 0.18kW - 0.25Hp - 200..240V - 1pha
Specifications: ATV12H018M2 |
||
| Range | Altivar 12 | |
| Country of Origin (Estimated) | Indonesia (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if need) | |
| Product name & Device short name | ATV12 | |
| Product specific application | Simple machine | |
| Product destination | Asynchronous motors | |
| Mounting mode | Cabinet mount | |
| Network number of phases | 1 phase | |
| Supply voltage limits | 200...240 V - 15...10 % | |
| IP degree of protection | IP20 | |
| EMC filter | Integrated | |
| Motor power kW | 0.18 kW | |
| Motor power HP | 0.25 hp | |
| Nominal output current | 1.4 A | |
| Communication port protocol | Modbus | |
| Method of access | Server Modbus serial | |
| Output frequency | 0.5…400 Hz | |
| Protection type | Line supply overvoltage Line supply undervoltage Overcurrent between output phases and earth Overheating protection Short-circuit between motor phases Against input phase loss in three-phase Thermal motor protection via the drive by continuous calculation of I²t |
|
| Dimensions (mm) (H x W x D) |
143x72x102.2 mm | |
| Net weight (Kg) | 0.7Kg | |
