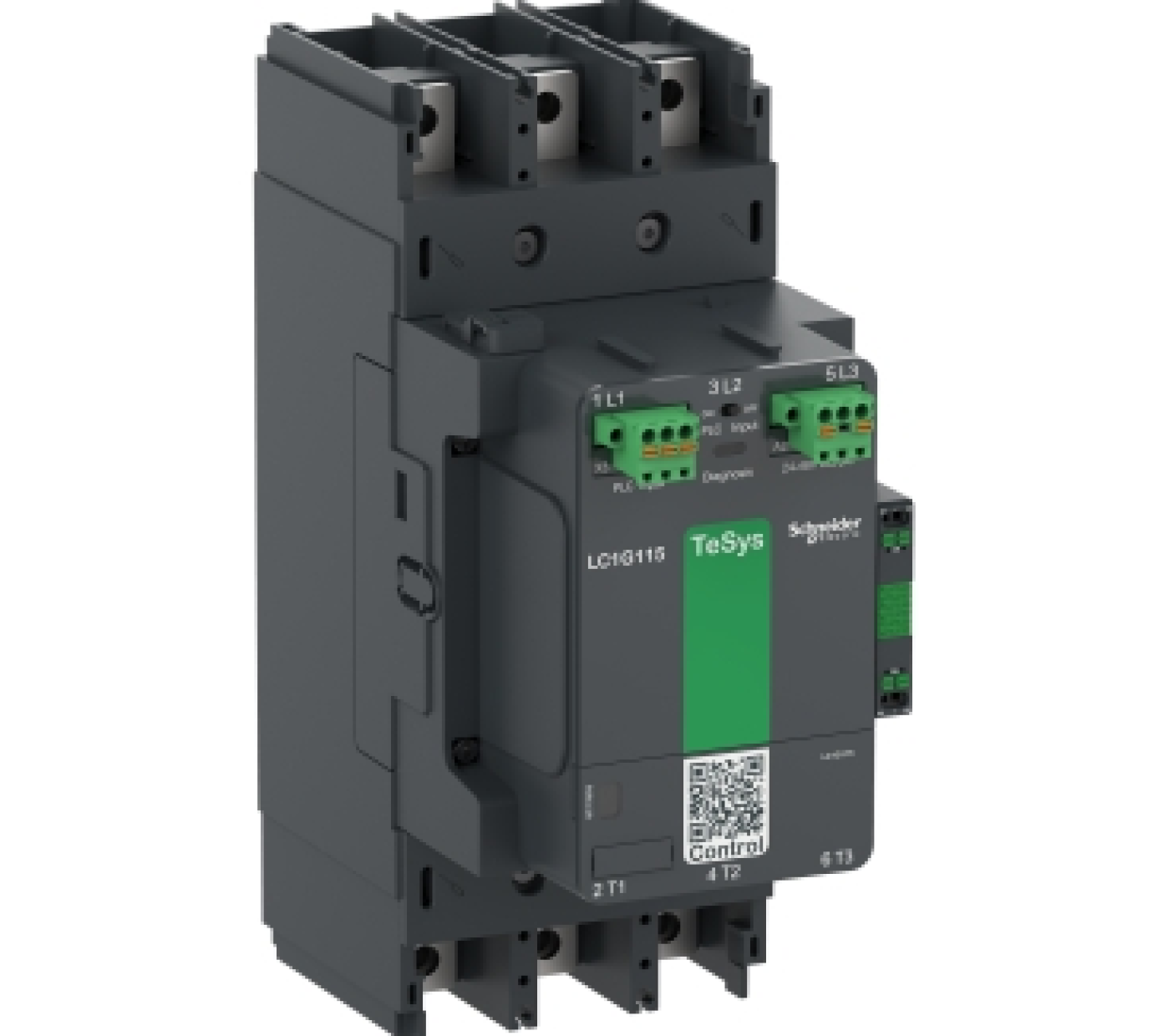

High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 115A, advanced version, 24…48V wide band AC/DC coil
| Specifications | ||
| Range | TeSys Giga | |
| Country of Origin (Estimated) | China (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if) | |
| Product name & Device short name | LC1G | |
| Device application | Power switching Motor control |
|
| Poles description | 3P | |
| [Ie] rated operational current | 250 A (at <40 °C) at <= 1000 V AC-1 115 A (at <60 °C) at <= 440 V AC-3 |
|
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz <= 460 V DC |
|
| [Uc] control circuit voltage | 24...48 V AC 50/60 Hz 24...48 V DC |
|
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 |
|
| Pole contact composition | 3 NO | |
| Auxiliary contact composition | 1 NO + 1 NC | |
| Connection pitch | 35 mm | |
| Dimensions (mm) (HxWxD) |
255x108x193 mm | |
| Net weight (Kg) | 4.1 kg | |
| Motor power kW | 55 kW at 400 V AC 50/60 Hz (AC-3e) 55 kW at 415 V AC 50/60 Hz (AC-3e) 75 kW at 440 V AC 50/60 Hz (AC-3e) |
|
