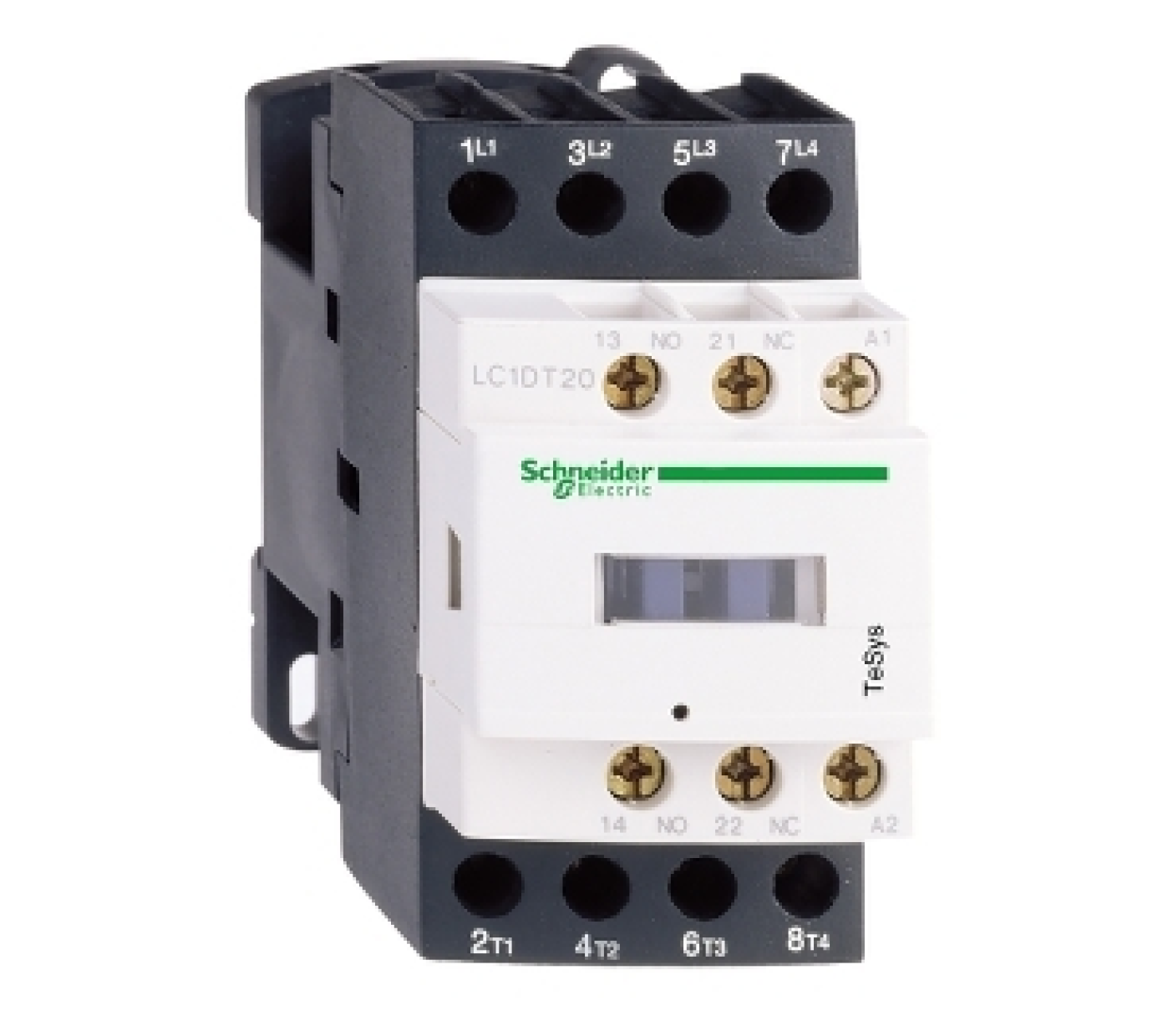

Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 25A, 24VDC 50/60Hz coil, screw clamp terminal.
| Specifications | ||
| Range | TeSys D | |
| Country of Origin (Estimated) | Indonesia (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if) | |
| Product name & Device short name | LC1D | |
| Device application | Resistive load | |
| Poles description | 4P | |
| [Ie] rated operational current | 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit | |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz Power circuit: <= 300 V DC |
|
| [Uc] control circuit voltage | 24VDC | |
| Standards | CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 |
|
| Pole contact composition | 2 NO + 2 NC | |
| Auxiliary contact composition | 1 NO + 1 NC | |
| Maximum operating rate | 2400 cyc/h 60 °C | |
| Dimensions (mm) (HxWxD) |
85x45x99 mm | |
| Net weight (Kg) | 0.525 kg | |
