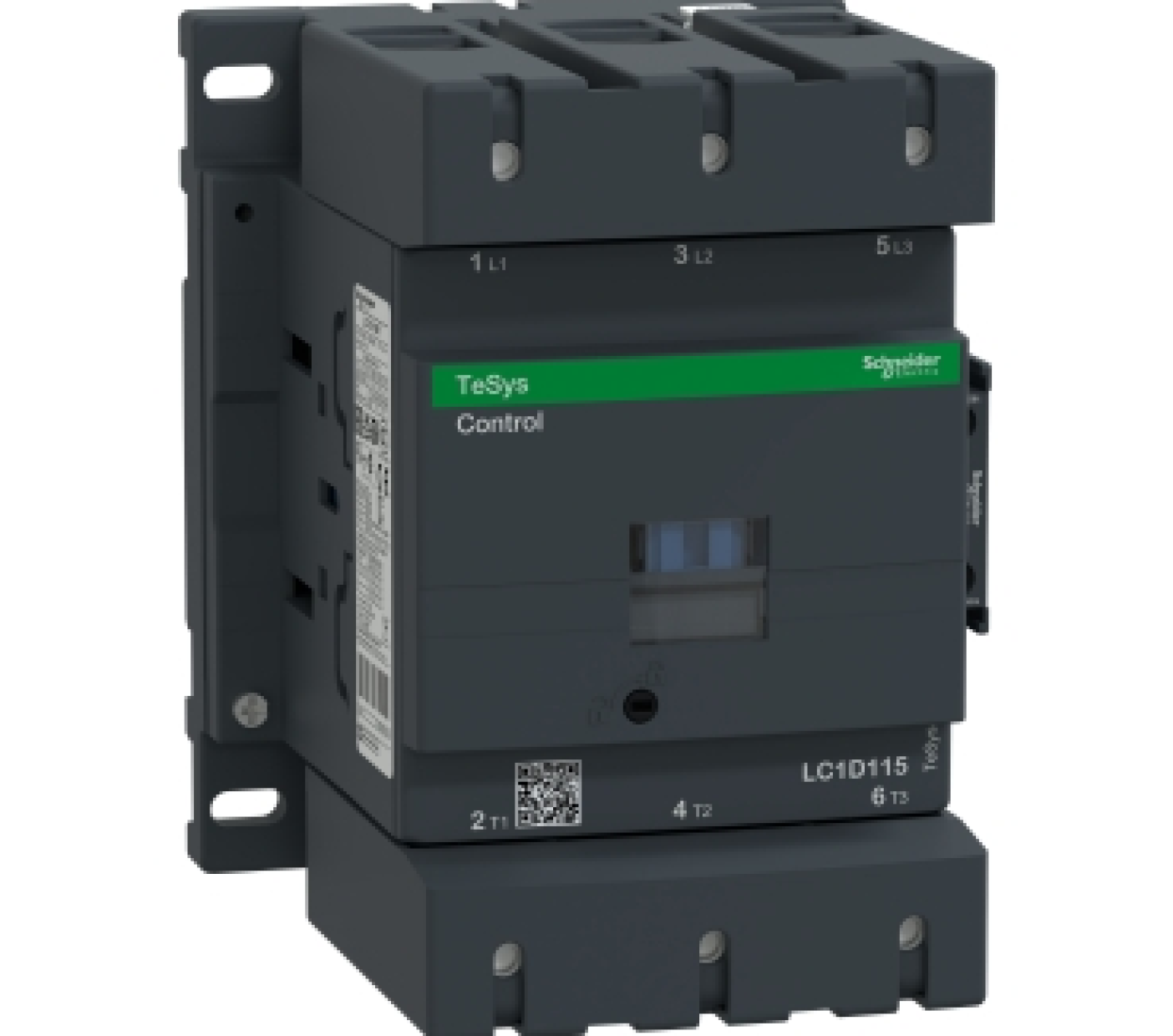

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 24V AC 50/60Hz coil, screw clamp terminals.
| Specifications | ||
| Range | TeSys D | |
| Country of Origin (Estimated) | Czech Republic (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if) | |
| Product name & Device short name | LC1D | |
| Device application | Resistive load | |
| Poles description | 3P | |
| [Ie] rated operational current | 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 115 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 115 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
|
| Motor power kW | 55 kW at 380...400 V AC 50/60 Hz (AC-3) 59 kW at 415...440 V AC 50/60 Hz (AC-3) |
|
| [Ue] rated operational voltage | Power circuit: <= 1000 V AC 25...400 Hz Power circuit: <= 300 V DC |
|
| [Uc] control circuit voltage | 24 V AC 50/60 Hz | |
| Standards | CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 |
|
| Pole contact composition | 3 NO | |
| Auxiliary contact composition | 1 NO + 1 NC | |
| Maximum operating rate | 2400 cyc/h 60 °C | |
| Dimensions (mm) (HxWxD) |
158x120x136 mm | |
| Net weight (Kg) | 2.5 kg | |
