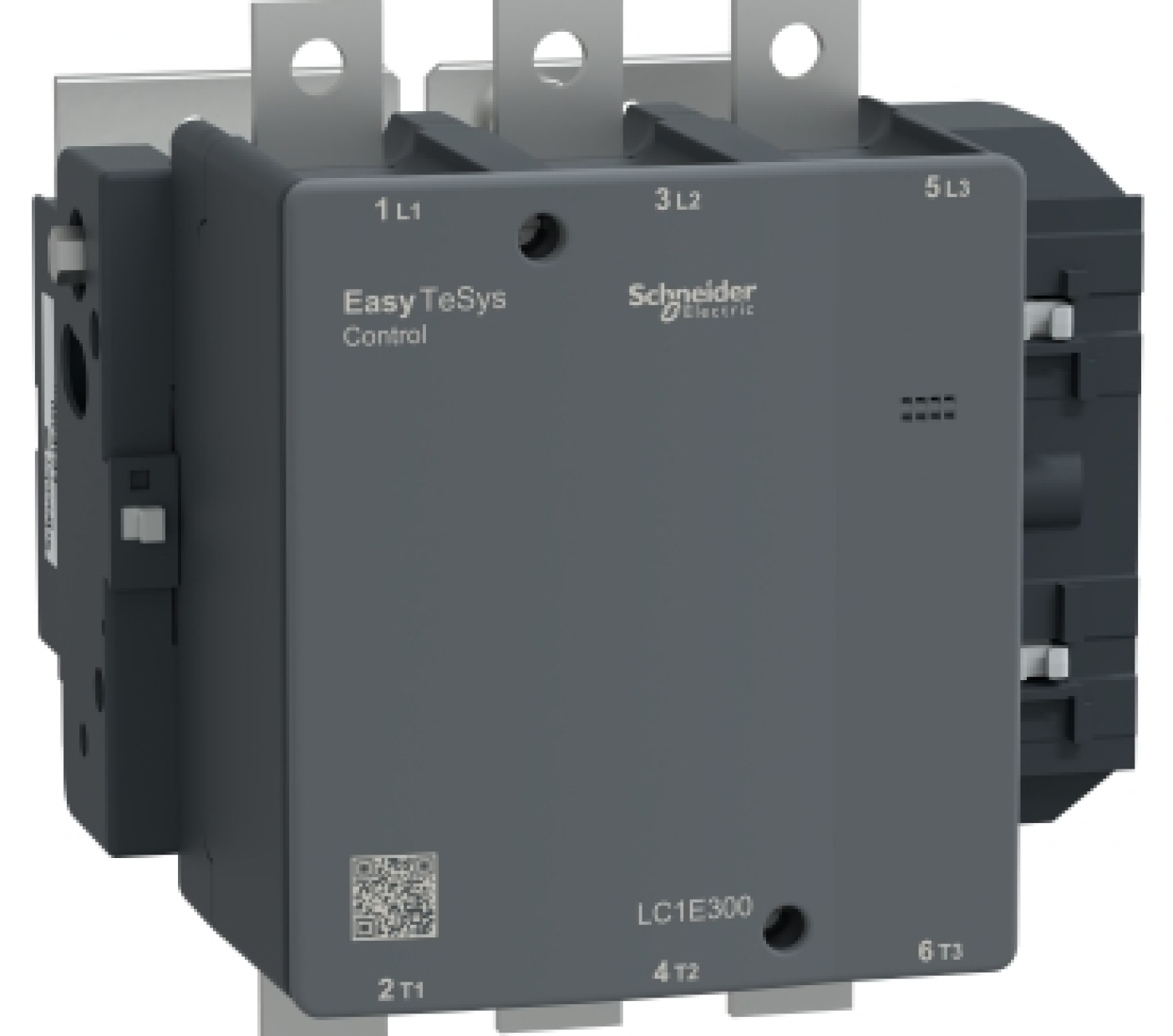

Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,300A,220V AC coil,50Hz.
| Specifications | ||
| Range | TeSys | |
| Country of Origin (Estimated) | Indonesia (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if) | |
| Product name & Device short name | LC1E | |
| Device application | Motor control Resistive load |
|
| Poles description | 3P | |
| [Ie] rated operational current | 300 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 320 A (at <40 °C) at <= 440 V AC AC-1 for power circuit |
|
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz | |
| [Uc] control circuit voltage | 220 V AC 50 Hz | |
| Standards | IEC 60947-1 IEC 60947-4-1 IEC 60947-5-1 |
|
| Pole contact composition | 3 NO | |
| Auxiliary contact composition | 0 | |
| Maximum operating rate | 1800 cyc/h 60 °C | |
| Dimensions (mm) (HxWxD) |
206x213x219 mm | |
| Net weight (Kg) | 8.5 kg | |
| Motor power kW | 160 kW at 380...400 V AC 50/60 Hz (AC-3) 160 kW at 415 V AC 50/60 Hz (AC-3) 185 kW at 440 V AC 50/60 Hz (AC-3 |
|
