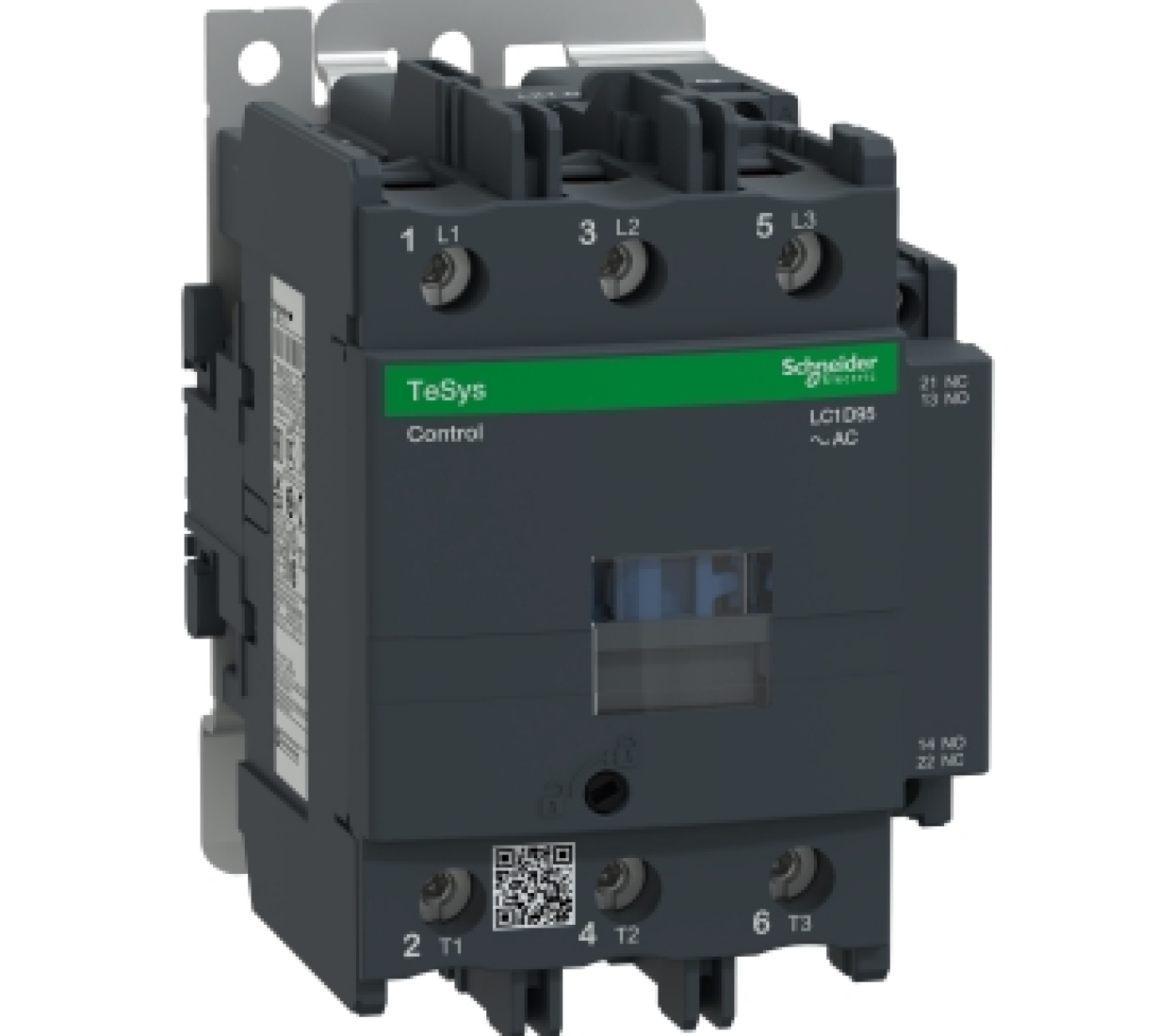

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 95A, 24V AC 50/60Hz coil, screw clamp terminals.
| Specifications | ||
| Range | TeSys D | |
| Country of Origin (Estimated) | Czech Republic (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if) | |
| Product name & Device short name | LC1D | |
| Device application | Resistive load Motor control |
|
| Poles description | 3P | |
| [Ie] rated operational current | 95 A (at <60 °C) at <= 440 V AC-3 for power circuit 125 A (at <60 °C) at <= 690 V AC-1 for power circuit 95 A (at <60 °C) at <= 440 V AC-3e for power circuit |
|
| Motor power kW | 45 kW at 380...400 V AC 50 Hz (AC-3) 45 kW at 415...440 V AC 50 Hz (AC-3) |
|
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz | |
| [Uc] control circuit voltage | 24V AC 50/60Hz | |
| Standards | CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 IEC 60335-1 |
|
| Pole contact composition | 3 NO | |
| Auxiliary contact composition | 1 NO + 1 NC | |
| Maximum operating rate | 3600 cyc/h 60 °C | |
| Dimensions (mm) (HxWxD) |
127x85x130 mm | |
| Net weight (Kg) | 1.61 kg | |
