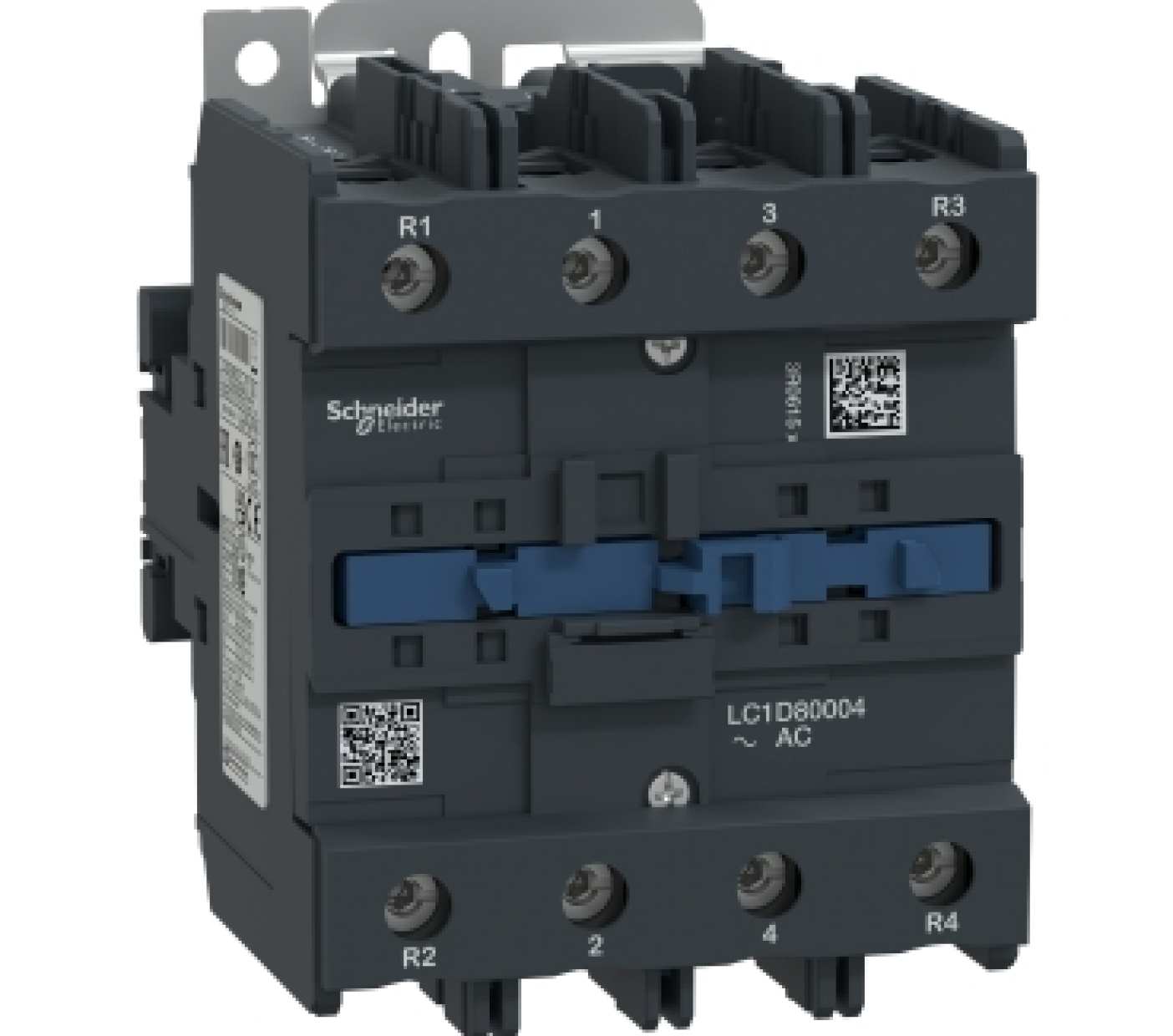

Contactor, TeSys Deca, 4P(4NO), AC-1, <=440V, 125A, 48V AC 50/60Hz coil, screw clamp terminal.
Specifications |
LC1D80004E7 |
|
| Range | TeSys D | |
| Country of Origin (Estimated) | Indonesia (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if) | |
| Product name & Device short name | LC1D | |
| Device application | Resistive load | |
| Poles description | 4P | |
| [Ie] rated operational current | 125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit 55 A (at <60 °C) at <= 400 V AC AC-4 for power circuit |
|
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz Power circuit: <= 300 V DC |
|
| [Uc] control circuit voltage | 48 V AC 50/60 Hz | |
| Motor power kW | 22 kW at 220...230 V AC 50/60 Hz 37 kW at 380...400 V AC 50/60 Hz 45 kW at 660...690 V AC 50/60 Hz 55 kW at 500 V AC 50/60 Hz 45 kW at 415...440 V AC 50/60 Hz |
|
| Pole contact composition | 4 NO | |
| Auxiliary contact composition | 1 NO + 1 NC | |
| [Ith] conventional free air thermal current | 125 A (at 60 °C) for power circuit | |
| Coil technology | Without built-in suppressor module | |
| Maximum operating rate | 3600 cyc/h 60 °C | |
| mounting support | Plate Rail |
|
| Standards | EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 CSA C22.2 No 14 UL 60947-4-1 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ IEC 60335-1:Clause 30.2 |
|
| Dimensions (mm) (HxWxD) |
127x96x125 mm | |
| Net weight (Kg) | 1.76 kg | |
