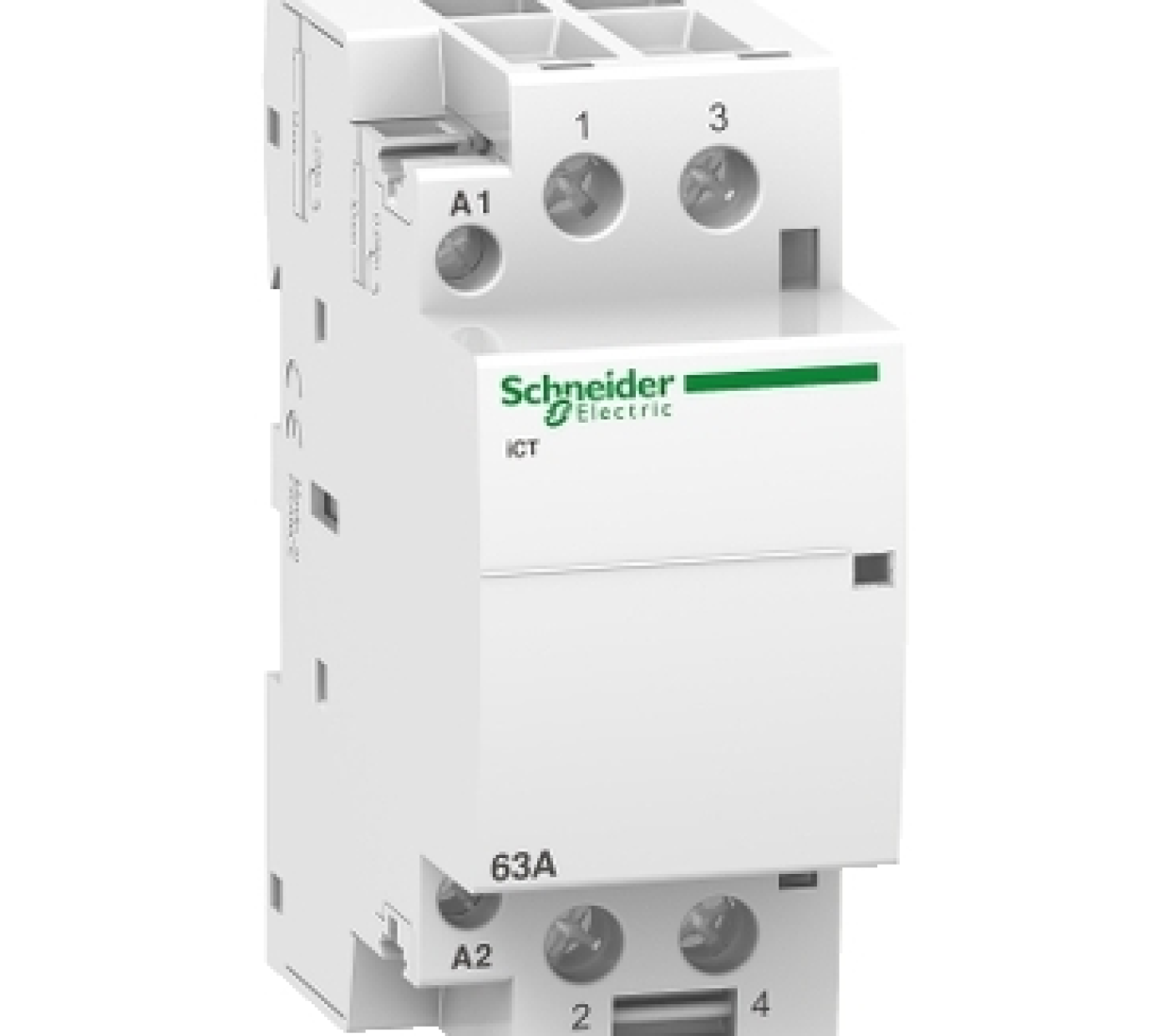

Contactor iCT - 2 poles - 2NO - 63A 24VAC.
| Specifications | ||
| Range | Contactor Acti9 iCT | |
| Country of Origin (Estimated) | France (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if) | |
| Product name & Device short name | Acti9 iCT | |
| Device application | Motor-heating-lighting | |
| Poles description | 2P | |
| [Ie] rated operational current | 63 A AC-7A 20 A AC-7B |
|
| Pole contact composition | 2 NO | |
| Control type | Remote control | |
| [Uc] control circuit voltage | 24 V AC 50 Hz | |
| [Ue] rated operational voltage | 250 V AC 50 Hz | |
| Mechanical durability | 1000000 cycles | |
| Electrical durabili | 100000 cycles IEC/EN 61095 25 A 50 Hz AC-7A 30000 cycles IEC/EN 61095 8.5 A 50 Hz AC-7B |
|
| Dimensions (mm) (HxWxD) |
85x36x68.5 mm | |
