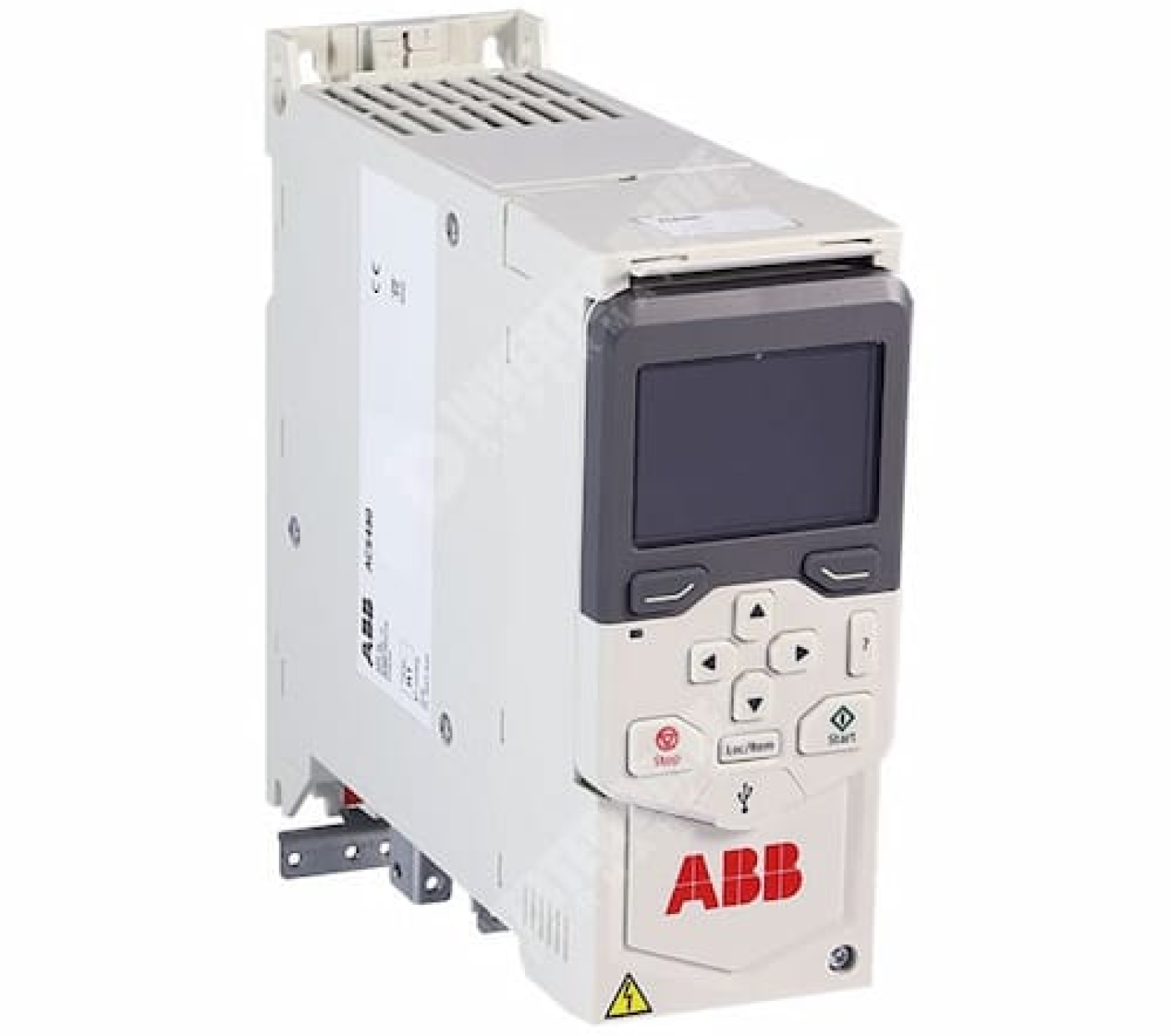

Drives ACS480 3P 380-480VAC 7.5kW, IN: 17A, Size R3, Basic control panel.
Specifications: ACS480-04-018A-4+J404 |
||
| Range | Drives ACS480 | |
| Country of Origin (Estimated) | China (CN) (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if need) | |
| Global Commercial Alias | ACS480-04-018A-4+J404 | |
| Control panel and panel | +J404: ACS-BP-S Basic control panel | |
| Product ID | 3AXD50000047792 | |
| Variable speed drive application selection | 1> Food and beverage (Blowers, compressors, conveyors, fans, mills, pumps, dryers). 2> Material handling (Conveyors). 3> Printing (Compressors, presses, winders). 4> Textile (Bleaching machines,compressors,conveyors, fans, jet dyeing machines,pumps). 5> Water handling (Compressors,pump stations). 6> Agriculture (Fans, irrigators, pumps, sorters). 7> Sawmill (Wood drying kilns, conveyors for chips). 8> Automotive (Conveyors, fans, pumps) 9> Rubber and plastics |
|
| Product destination | Synchronous reluctance motors | |
| Mounting Type: | Module | |
| Network number of phases | 3 phase | |
| Supply voltage limits | 380 ... 480 V | |
| IP degree of protection | IP20 | |
| EMC according to EN 61800-3: 2004 + A1: 2012 | ACS480 cabinet-mounted drive with built-in C2 category filter as standard | |
| Output Power, Normal Use (Pn) | 7.5 kW | |
| Output Current, Normal Use (In): | 17 A | |
| Communication port protocol | CAN DeviceNet EtherNet/IP MODBUS Other Bus Systems PROFIBUS PROFINET IO TCP/IP |
|
| Motor control | Scalar and vector control | |
| Functional safety | Safe Torque Off | |
| Frequency (f): | 0-599 Hz | |
| Frame Size: | R3 | |
| Dimensions (mm) (H x W x D) |
220x172x208 mm | |
| Net weight (Kg) | 3.52 kg | |
