Specifications |

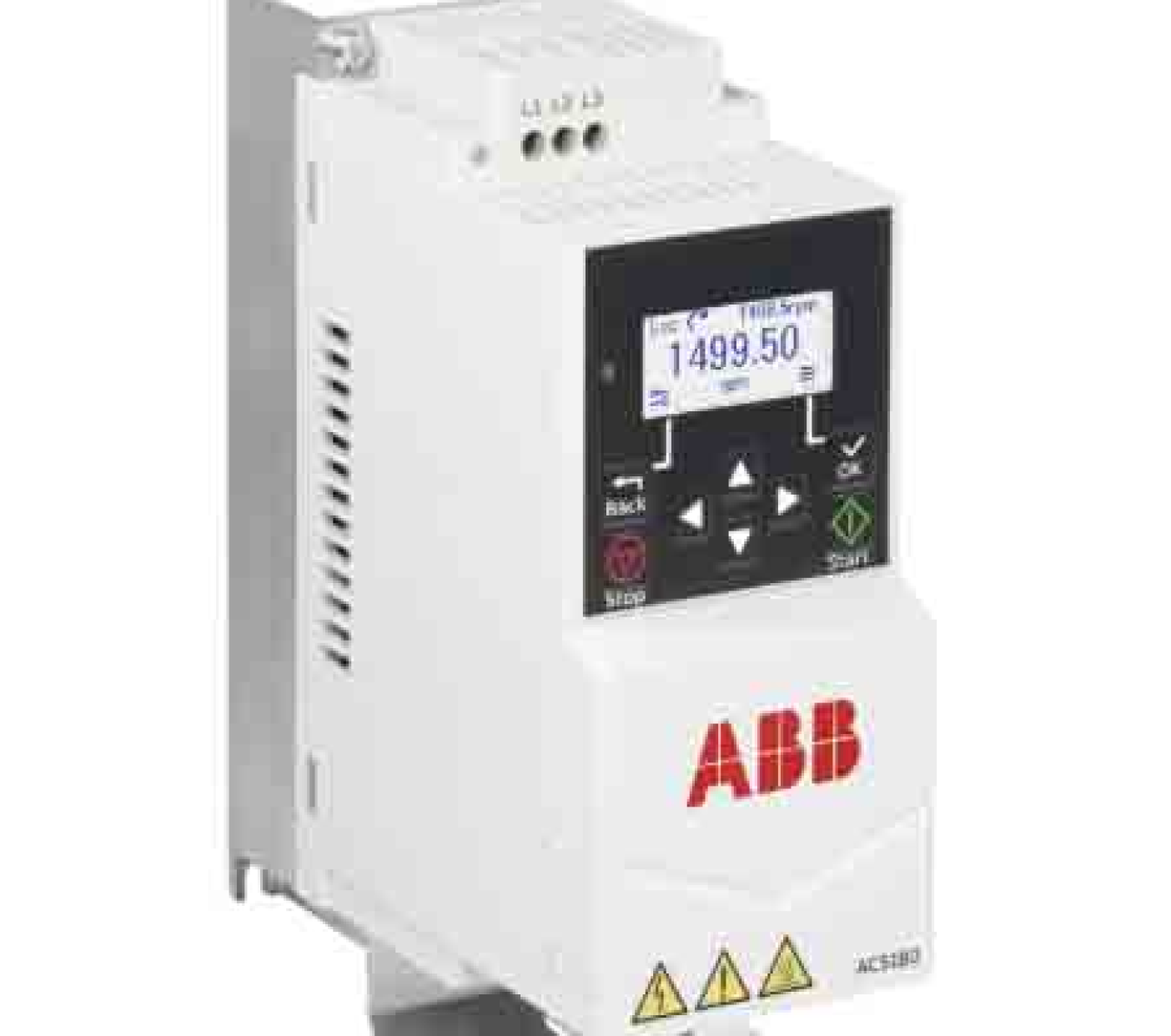

ACS180-04S-01A8-4 |
|
| Range | Drives ACS180 | |
| Country of Origin (Estimated) | China (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if need) | |
| Global Commercial Alias | ACS180-04S-01A8-4 | |
| Product ID | 3AXD50000662562 | |
| Variable speed drive application selection | Pumps, fans, compressors, conveyors, winders and mixers. | |
| Product destination | Asynchronous motors | |
| Mounting Type | Optimal for cabinet mounting | |
| Network number of phases | 3 phase | |
| Input Voltage (Uin) | 380 ... 480 V | |
| IP degree of protection | IP20 | |
| EMC compliance (EN 61800-3) | C3, industrial use | |
| Frequency (f): | 47 ... 63 Hz | |
| Power Factor: | 0.98 | |
| Output Power, Normal Use (Pn) | 0.55 kW | |
| Output Current, Normal Use (In): | 1.8 A | |
| Communication Protocol: | MODBUS | |
|
Analog Inputs: |
2 | |
|
Analog Outputs: |
1 | |
|
Number of Digital In/Outputs: |
4 / 2 | |
| Number of Hardware Interfaces | Industrial Ethernet 0 Other 1 Parallel 0 PROFINET 0 RS-232 0 RS-422 0 RS-485 1 Serial TTY 0 USB 0 |
|
| Brake chopper | Built-in brake chopper as standard | |
| Frame Size: | R0 | |
| Dimensions (mm) (H x W x D) |
209x70x143 mm | |
| Net weight (Kg) | 0.92 kg | |
