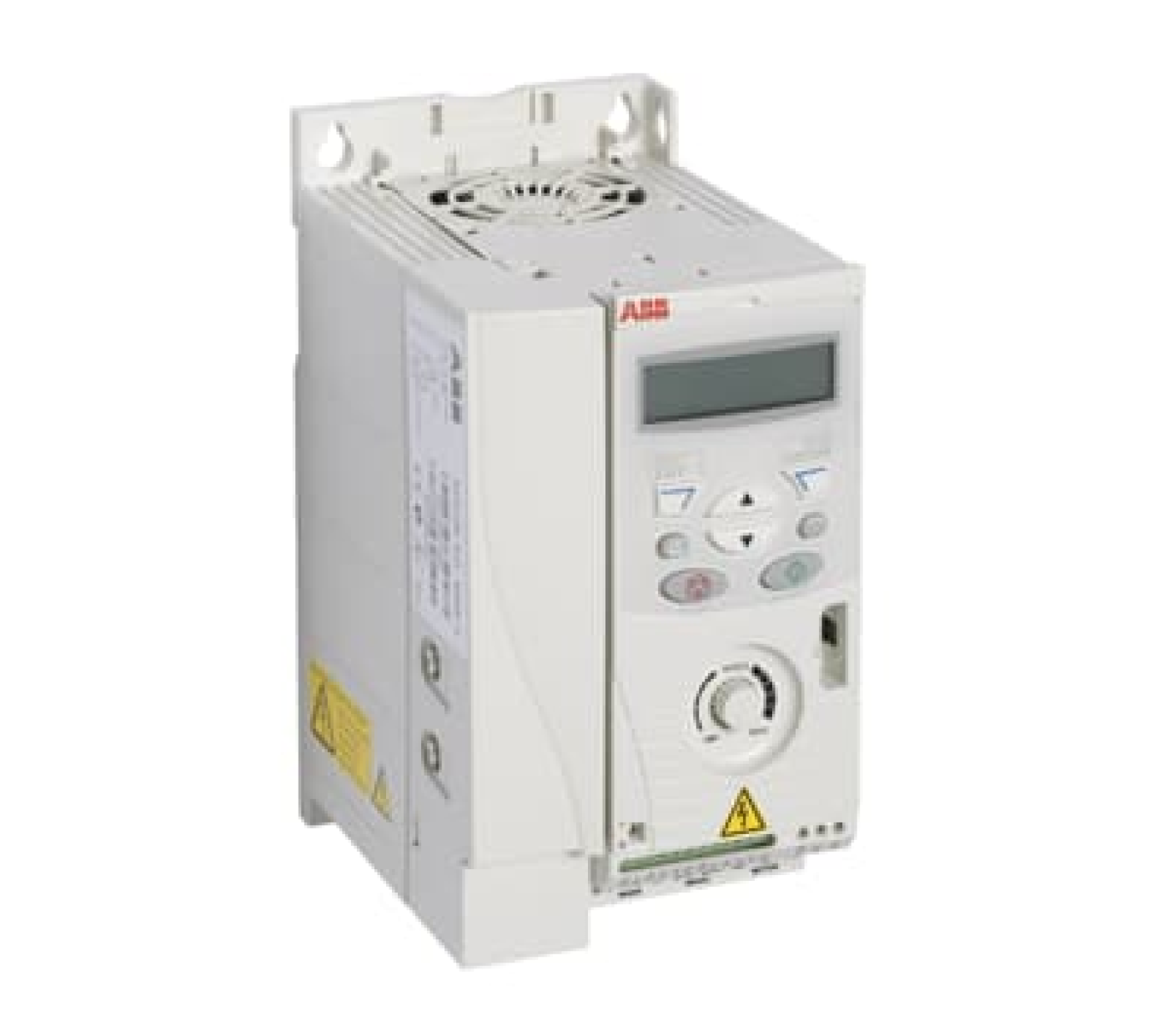

Drives ACS150 1P 220VAC 1.5KW, 7.5A IP20.
Specifications: ACS150-01E-07A5-2 |
||
| Range | Drives ACS150 | |
| Country of Origin (Estimated) | China (CN) (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if need) | |
| Global Commercial Alias | ACS150-01E-07A5-2 | |
| Product ID | 68581982 | |
| Variable speed drive application selection | Mixing, Conveyors, Heat pump, Fans | |
| Product destination | Asynchronous motors | |
| Mounting Type | Module for cabinet building | |
| Network number of phases | 1 phase | |
| Input Voltage (Uin) | 200 ... 240 V | |
| IP degree of protection | IP20 | |
| EMC according to EN 61800-3: 2004 + A1: 2012 | Built-in EMC filter for 2nd environment | |
| Output Power, Normal Use (Pn) | 1.5 kW | |
| Output Current, Normal Use (In): | 7.5 A | |
| Number of Hardware Interfaces | Industrial Ethernet 0 PROFINET 0 RS-232 0 RS-422 0 RS-485 0 Serial TTY 0 USB 0 Parallel 0 Other 1 |
|
| Motor control method | Scalar U/f | |
| Braking | Built-in brake chopper as standard | |
| Frequency (f): | 0-599 Hz | |
| Frame Size: | R2 | |
| Dimensions (mm) (H x W x D) |
239x142x105 mm | |
| Net weight (Kg) | 1.5 kg | |
