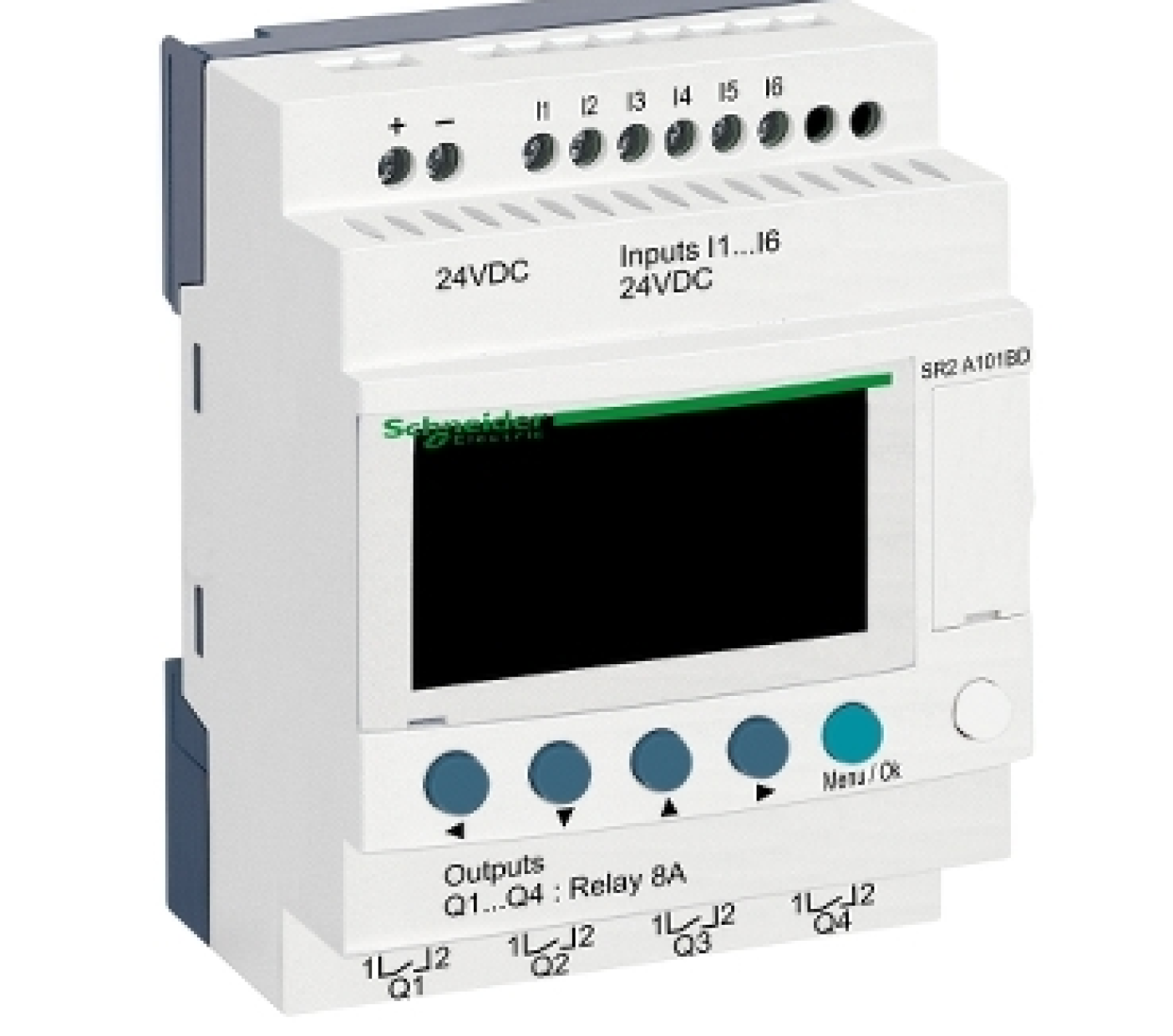

Smart Relay, Zelio Logic SR2, 10 IO, 24V DC, no cLock, Display.
Specifications |
SR2A101BD |
| Range of product | Zelio Logic |
| Product or component type | Compact smart relay |
| Local display | With |
| Number or control scheme lines | 0…240 with ladder programming |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…30 V |
| Number of outputs | 4 relay |
| Output voltage limits | 24...250 V AC (relay output) 5...30 V DC (relay output) |
| Contacts type and composition | NO for relay output |
| Output thermal current | 8 A for all 4 outputs for relay output |
| Clock | Without |
| Discrete input number | 6 conforming to IEC 61131-2 Type 1 |
| Discrete input voltage | 24 V DC |
| Discrete input current | 4 mA |
| Net weight | 0.25 kg |
