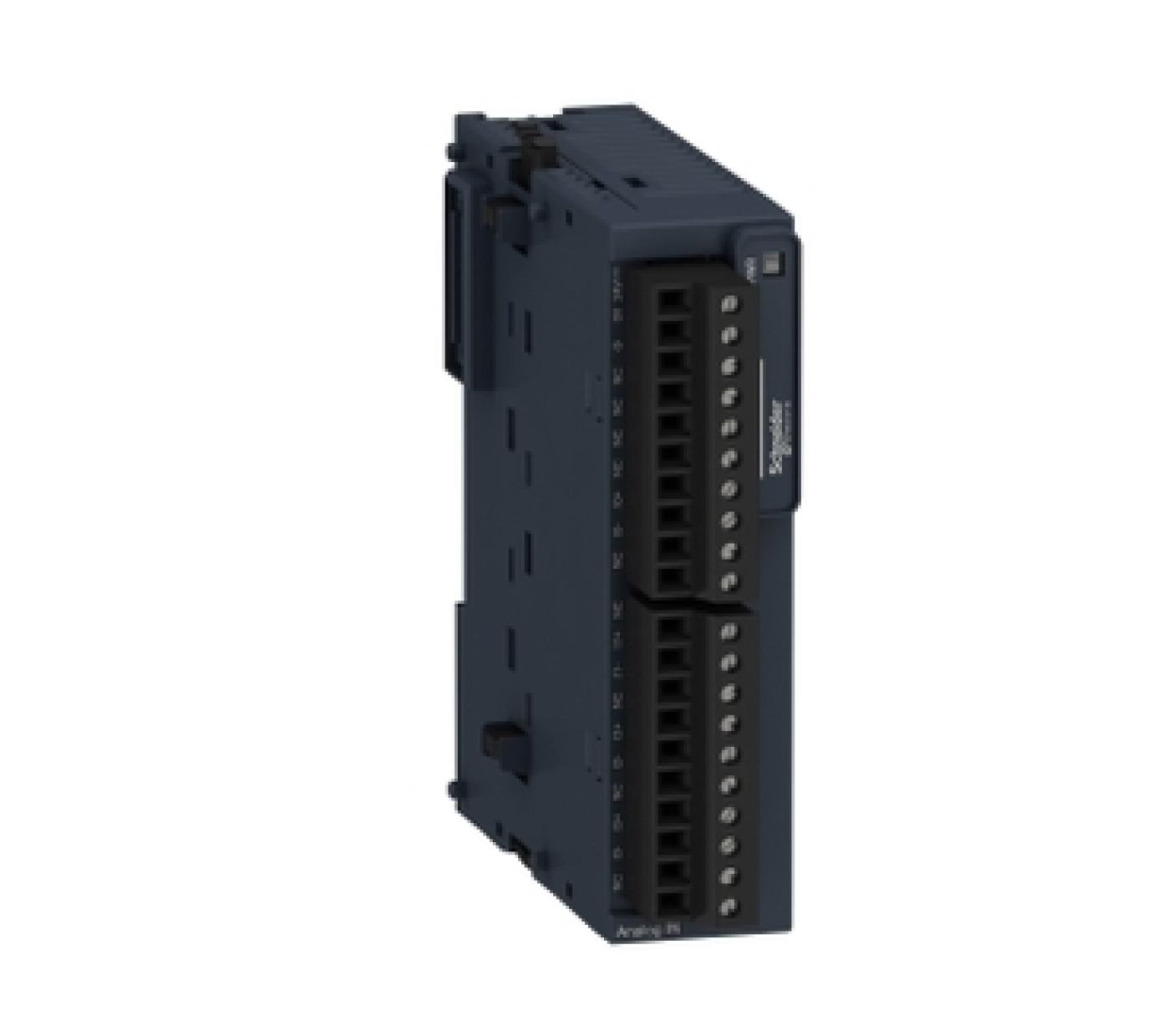

AnaLog Input Module, MoDiCon TM3, 4 Inputs, screw, 24V DC.
| Specifications | TM3AI4 |
| Range of product | Modicon TM3 |
| product or component type | Analog input module |
| Range compatibility | Modicon M241 Modicon M251 Modicon M221 Modicon M262 |
| Analogue input number | 4 |
| Analogue input type | current 4...20 mA current 0...20 mA voltage 0...10 V voltage - 10...10 V |
| Analogue input resolution | 12 bits 11 bits + sign |
| Permissible continuous overload | 13 V, analogue input type: voltage 40 mA, analogue input type: current |
| [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 20.4…28.8 V |
| Type of cable | Twisted shielded pairs cable <30 m for input circuit |
| Current consumption | 35 mA at 5 V DC via bus connector no load 45 mA at 5 V DC via bus connector full load 30 mA at 24 V DC via external supply |
| Electrical connection | 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs and supply 10 x 1.5 mm² removable screw terminal block with pitch 3.81 mm adjustment for inputs |
| Height | 90 mm |
| Depth | 70 mm |
| Width | 23.6 mm |
| Net weight | 0.11 kg |
