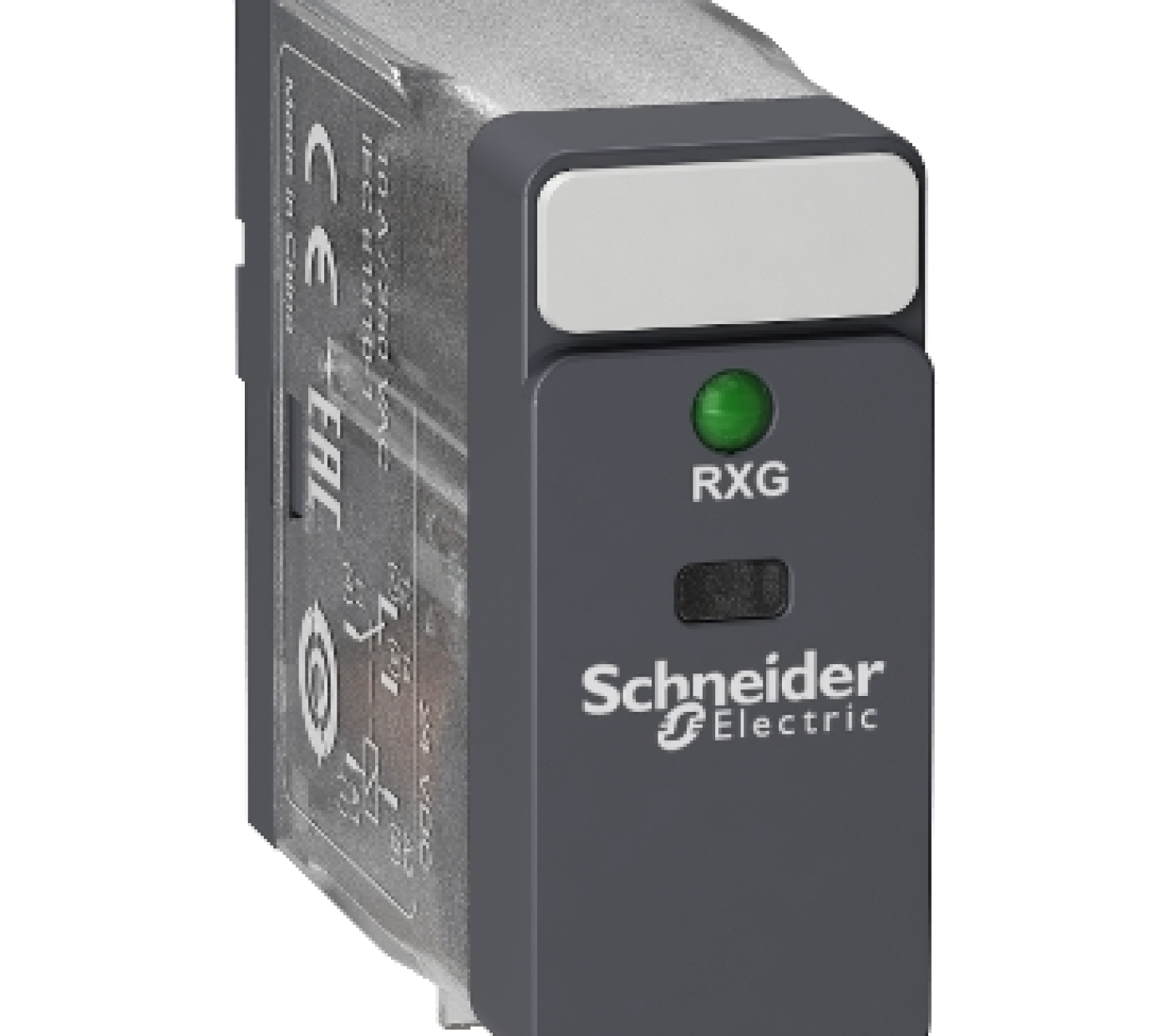

Interface Plug in relay, Harmony RXG, 10A, 1CO, with LED, 24V DC.
Specifications |
RXG13BD |
| Range of product | Harmony Control Relays |
| Country of Origin (Estimated) | China |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Plug-in relay |
| Device short name | RXG |
| Contacts type and composition | 1 C/O |
| [Ithe] conventional enclosed thermal current | 10 A at -40…55 °C |
| Local signalling | Flag |
| Status LED | With |
| [Ie] rated operational current | 10 A at 30 V (DC) conforming to UL 10 A at 30 V (DC) conforming to IEC 10 A at 250 V (AC) conforming to IEC 10 A at 250 V (AC) conforming to UL |
| Electrical durability | 100000 cycles for NO resistive load at 55 °C 100000 cycles for NC resistive load at 55 °C |
| [Uc] control circuit voltage | 24 V DC |
| Control type | Lockable test button |
| Electrical insulation class | Class F |
| Mechanical durability | 10000000 cycles |
| Pollution degree | 2 |
| Standards | IEC 61810-1 CSA C22.2 No 14 UL 508 |
| Product weight | 0.02 kg |
