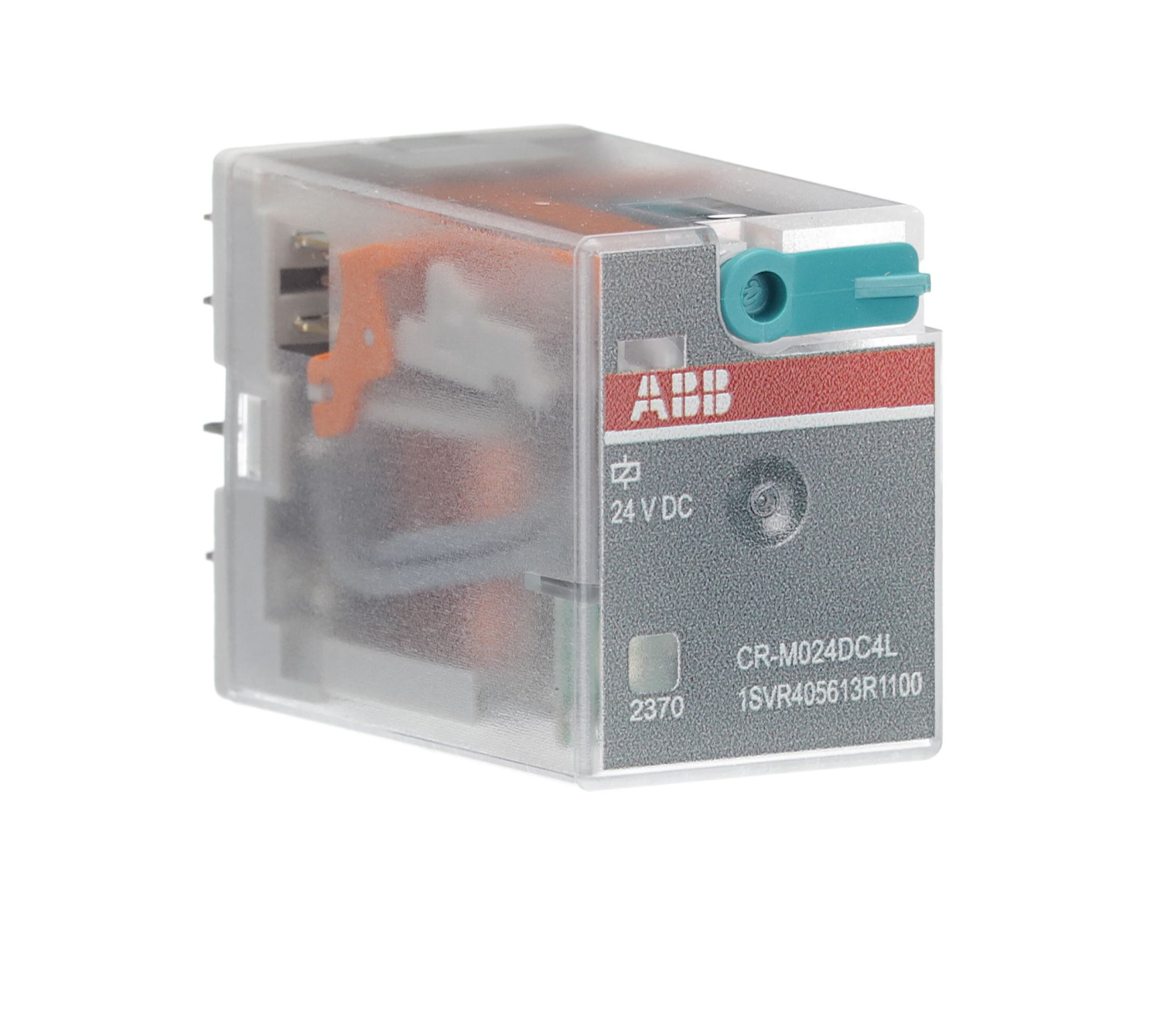

Pluggable interface relay 4C/O, A1-A2=24VDC, 250V/6A, LED (CR-M024DC4L)
Specifications |
1SVR405613R1100 |
| Extended Product Type | CR-M024DC4L |
| Country of Origin (Estimated) | Poland (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Miniature Relay Range |
| Catalog Description | CR-M024DC4L Pluggable interface relay 4c/o, A1-A2=24VDC, 250V/6A, LED |
| Function | Pluggable miniature interface relay CR-M |
| Sub-Function | Relay with built in LED (có Đèn LED) |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Rated Operational Voltage | 250 V AC |
| Output | 4 c/o (SPDT) contacts (14 chân) |
| Output Signal | 250 V / 6 A |
| Terminal Type | Flat-Pin Connections |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
| Rated Operational Current DC-12 (Ie) | (230 V) 6 A |
| Rated Insulation Voltage (Ui) | 250 V |
| Degree of Protection | IP40 |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 61810-1 UL 508 |
| Dimensions (WxHxD) | 21.2 x 35.6 x 27.5 mm |
| Net weight | 0.033 Kg |
