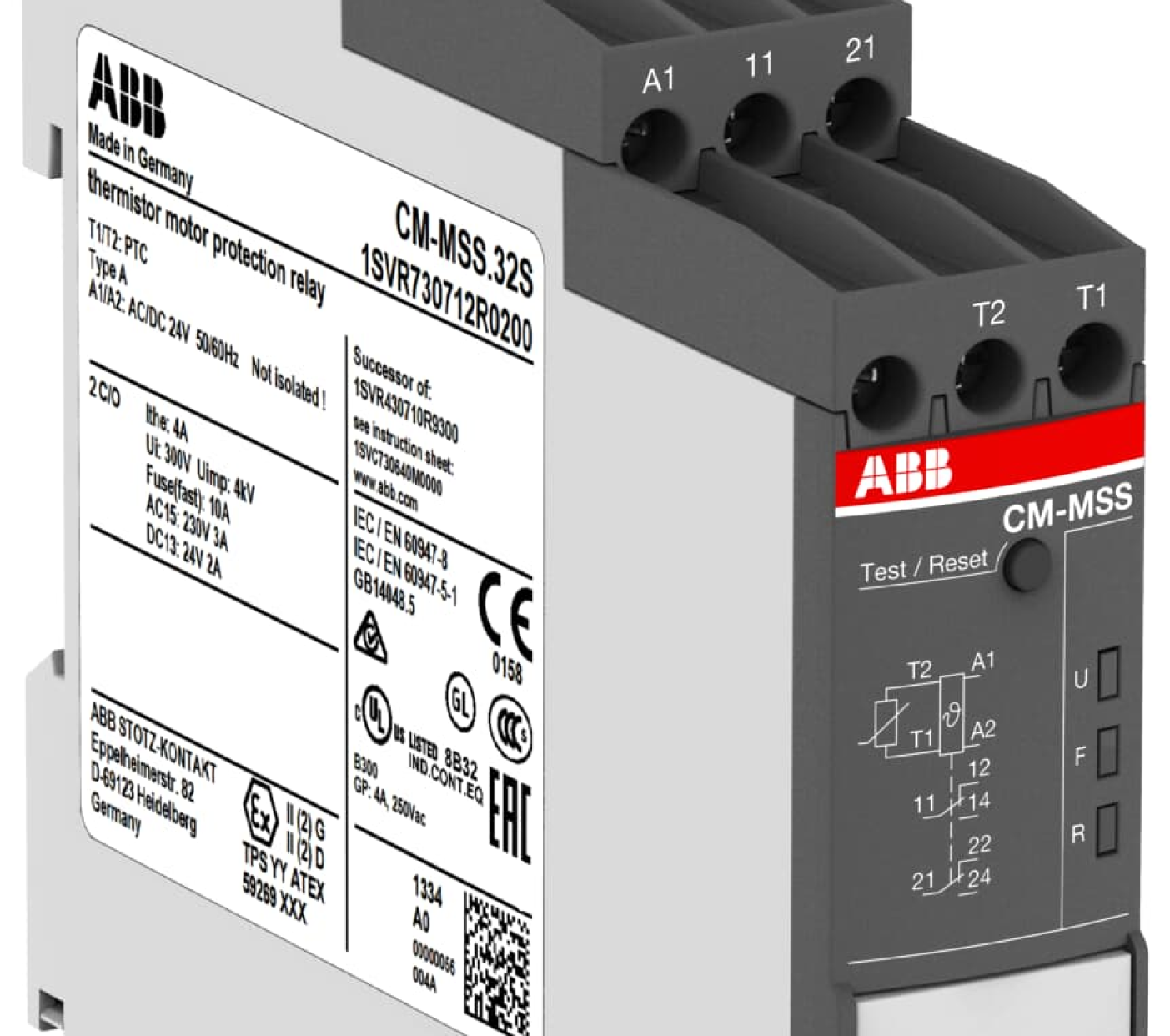

Thermistor motor protection relay 2C/O 24VAC/DC (CM-MSS.32S)
Specifications |
1SVR730712R0200 |
| Extended Product Type | CM-MSS.32S |
| Country of Origin (Estimated) | Germany (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Thermistor Motor Protection Relay |
| Catalog Description | CM-MSS.32S Therm. motor protec. relay 2c/o, 24VAC/DC |
| Function | 1 sensor circuit Short-circuit detection Dynamic interrupted wire detection Auto manual or remote reset ATEX approved |
| Rated Control Supply Voltage (Us) | 24 V AC/DC |
| Rated Operational Voltage | Auxiliary Circuit 250 V AC |
| Output | 2 c/o (SPDT) contacts |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 600 V Output Circuit 1 / Output Circuit 2 300 V |
| Electrical Durability | AC-12 100000 cycle |
| Mechanical Durability | 30000000 cycle |
| Tightening Torque | 0.6 ... 0.8 N·m |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14 IEC/EN 63000 IEC/EN 60255-27 IEC/EN 61000-6-2 IEC/EN 61000-6-3 UL 508 |
| Dimensions (WxHxD) | 22.5 x 85.6 x 103.7 mm |
| Net weight | 0.13 Kg |
