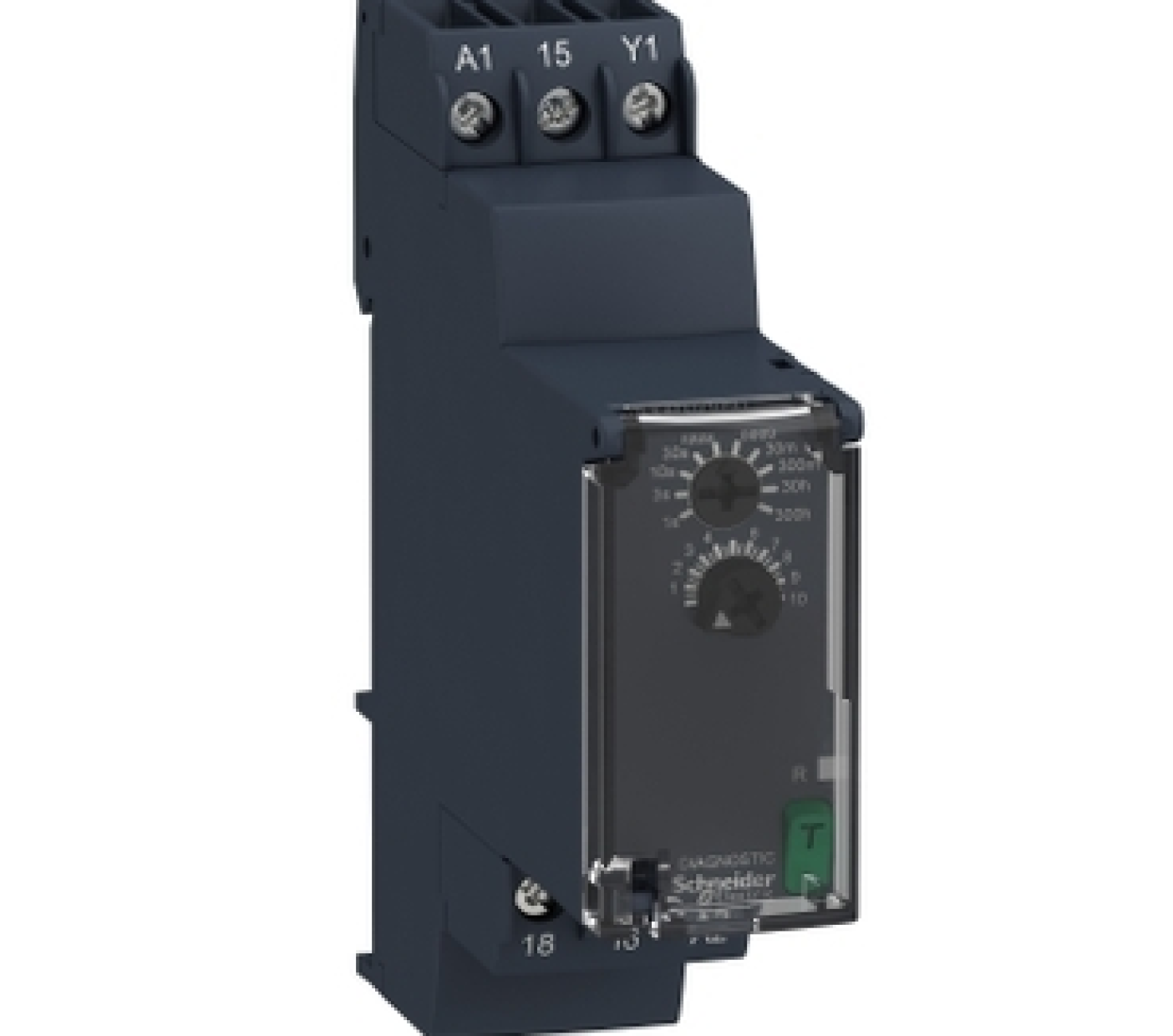

Dual function relay, Harmony Timer Relays, A, 1 CO, 0.05s…300h, power on delay, 24...240V AC DC.
Specifications |
RE22R1AMR |
| Range of product | Harmony Timer Relays |
| Country of Origin (Estimated) | Indonesia |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Discrete output type | Relay |
| Product or component type | Modular timing relay |
| Component name | RE22 |
| Nominal output current | 8 A |
| Contacts type and composition | 1 C/O timed contact, cadmium free |
| Time delay type | Power on-delay |
| Time delay range | 3...30 s 30...300 s 10...100 s 0.05...1 s 1...10 s 30...300 h 30...300 min 0.3...3 s 3...30 h 3...30 min |
| Control type | Rotary knob Diagnostic button |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz |
| Electrical durability | 100000 cycles, 8 A at 250 V, AC-1 100000 cycles, 2 A at 24 V, DC-1 |
| Mechanical durability | 10000000 cycles |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Status LED | LED backlight green (steady) for dial pointer indication LED yellow (steady) for output relay energised LED yellow (fast flashing) for timing in progress and output relay de-energised LED yellow (slow flashing) for timing in progress and output relay energised |
| Function available | A- Power on-delay relay-1 C/O Aw- Power on-delay relay w/ retrigger/restart-1 C/O |
| Control type | With test button |
| number of functions | 2 |
| Standards | UL 508 IEC 61812-1 |
| Width | 22.5 mm |
| Net weight | 0.1 kg |
