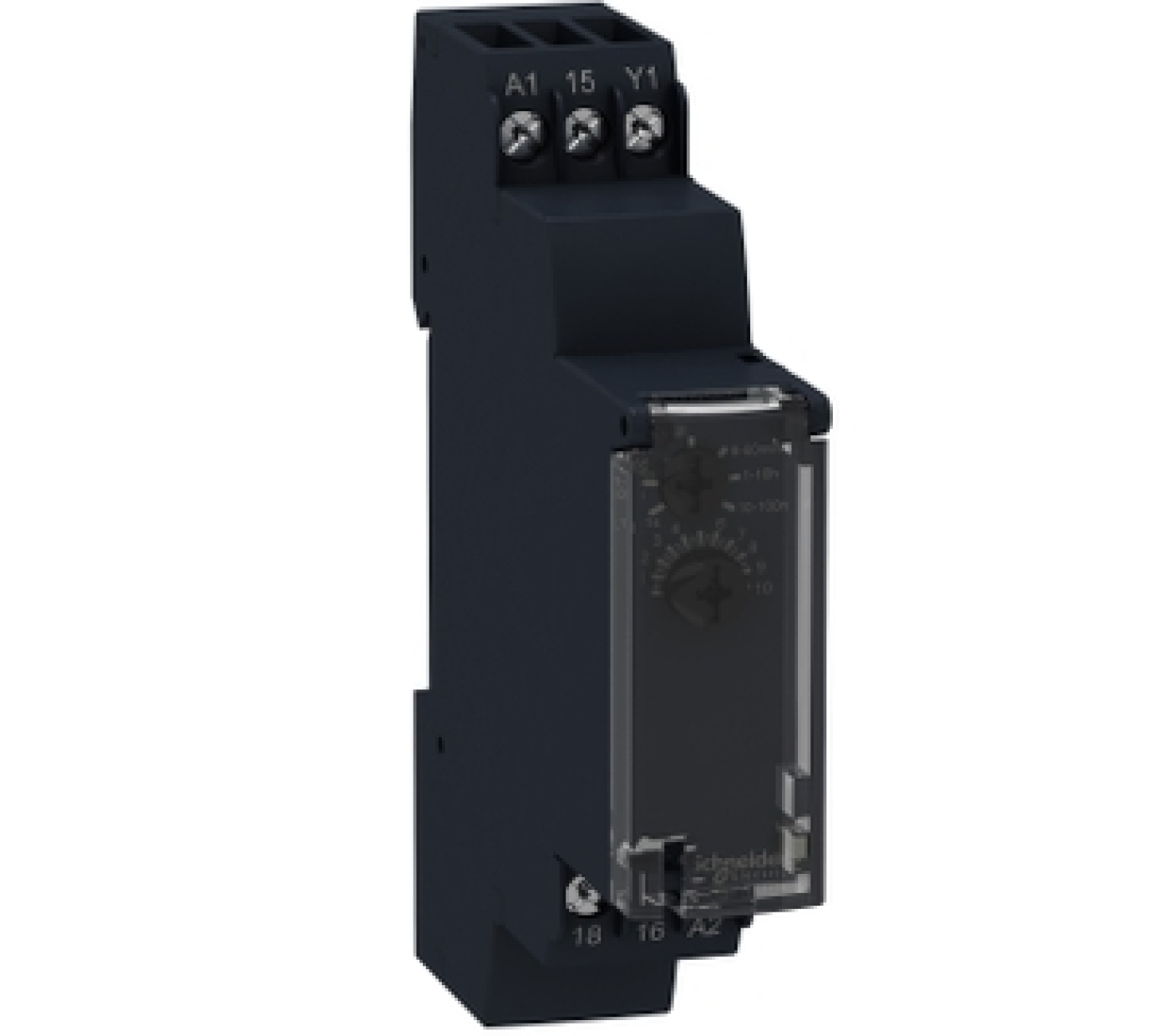

Harmony Timer Relays, 0.7A, 1CO, 0,1s..100h, on delay, solid state output, 24..240V AC DC.
Specifications |
RE17LAMW |
| range of product | Harmony Timer Relays |
| Country of Origin (Estimated) | Indonesia |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Discrete output type | Solid state |
| Width | 17.5 mm |
| product or component type | Single function relay |
| Component name | RE17L |
| Time delay type | Power on-delay |
| time delay range | 1...10 s 10...100 h 6...60 s 0.1...1 s 1...10 min 6...60 min 1...10 h |
| Nominal output current | 0.7 A |
| Control type | Selector switch front panel |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz |
| Voltage range | 0.85...1.1 Us |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| Reset time | 350 ms on de-energisation typical |
| On-load factor | 100% |
| Power consumption in VA | 0…3 VA at 240 V AC |
| Maximum power consumption in W | 1.5 W at 240 V DC |
| Maximum output current | 20 A |
| Minimum switching current | 10 mA |
| Maximum leakage current | 5 mA |
| Maximum switching voltage | 250 V AC/DC |
| Electrical durability | 100000000 cycles |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Function available | A- Power on-delay relay-1 solid state output |
| Control type | Without test button |
| Time delay type | A |
| Functionality | On-delay timing |
| number of functions | 1 |
| Compatibility code | RE17 |
| Standards | 2004/108/EC IEC 61000-6-1 2006/95/EC IEC 61000-6-3 IEC 61000-6-2 IEC 61812-1 IEC 61000-6-4 |
| Net weight | 0.068 kg |
