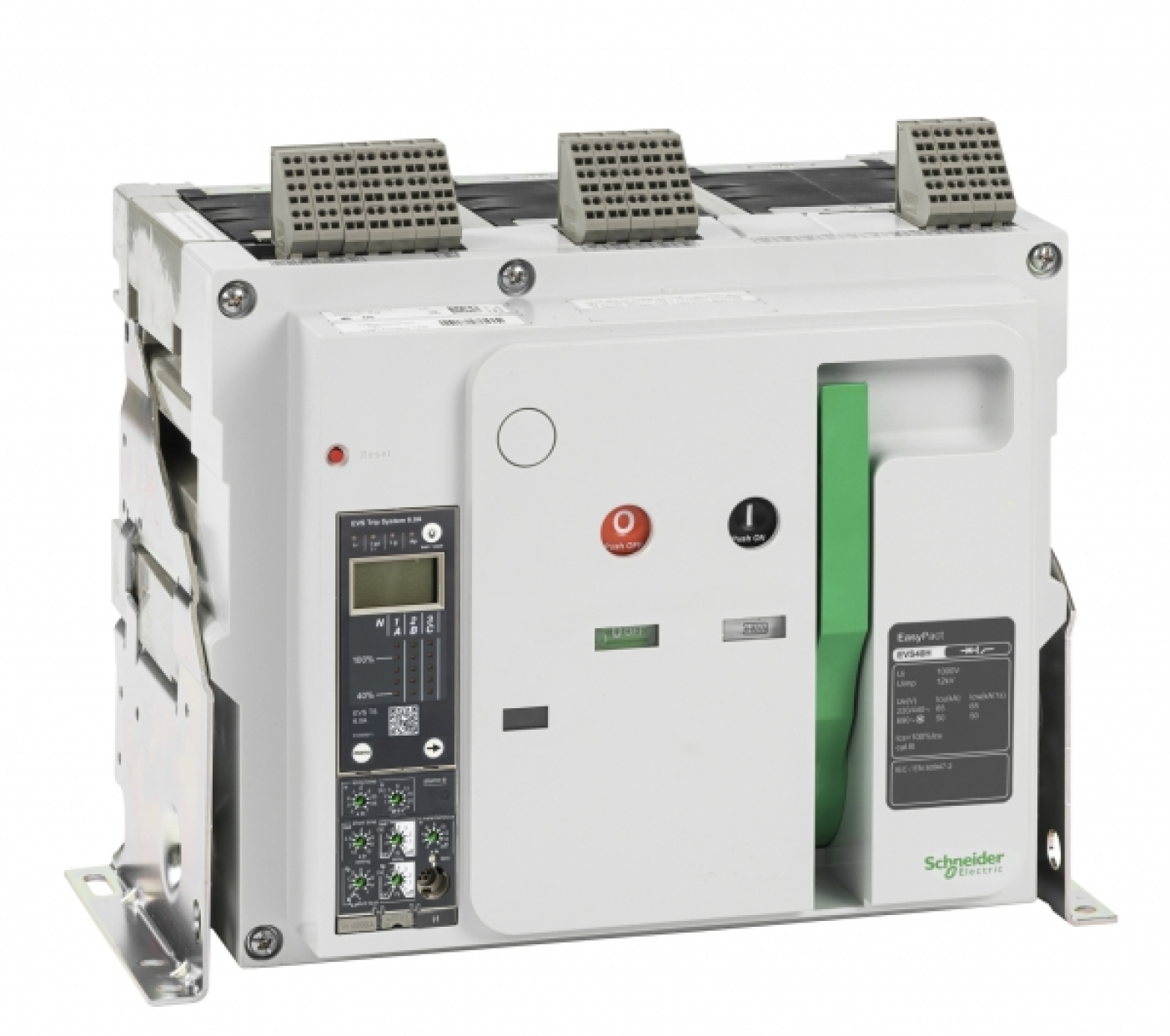

| Specifications EVS12H4MW20: |
| Range |
EasyPact - 1250A |
| Country of Origin (Estimated) |
Singapore (Other) |
| Warranty |
12 months |
| CO/CQ |
Yes (if need) |
| Product name & Device short name |
EVS12 |
| Device application |
Distribution |
| Poles description |
4P |
| Protected poles description |
4P 4d |
| [In] rated current |
1250 A at 40 °C |
| Network type |
AC |
| [Ue] rated operational voltage |
690 VAC 50/60 Hz conforming to IEC 60947-2 |
| Suitability for isolation |
Yes conforming to IEC 60947-2 |
| Trip unit name |
LI |
| Trip unit technology |
Electronic |
| Trip unit rating |
1250 A |
| [Ui] rated insulation voltage |
1000 VAC 50/60 Hz conforming to IEC 60947-2 |
| Connection position |
Horizontal, Vertical |
| Control type |
Manually operated |
| Mounting mode |
Drawout |
| Breaking capacity Icu(kA rms) |
65 kA Icu at 220...440 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ics] rated service breaking capacity |
65 kA Ics at 220...440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Mechanical durability |
20000 cycles (with maintenance) conforming to IEC 60947-2.
10000 cycles (without maintenance) conforming to IEC 60947-2 |
| Electrical durability |
Category B: 6000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2
Category B: 4000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 |
| Trip unit protection functions |
2.0 basic protection |
| Protection type |
Overload protection (long time) Instantaneous short-circuit protection |
| fault indication |
Short-circuit
Overload
Internal fault |
| Long time pick-up adjustment type Ir |
Adjustable 9 settings |
| Long time pick-up adjustment range |
0.4...1 x In |
| Long time delay adjustment type |
Adjustable 9 settings |
| [tr] long-time delay adjustment range |
0.5…24 s at 6 x Ir |
Dimensions (mm)
(H x W x D) |
Drawout |
3P/439x441x395 mm |
| 4P/439x556x395 mm |
| Fixed |
3P/352x422x297 mm |
| 4P/352x537x297 mm |
| Net weight (Kg) |
Drawout |
3P/70 Kg
4P/85 Kg |
| Fixed |
3P/40 Kg
4P/50 Kg |
| Door cutout Dimensions (WxH) |
Drawout |
316x364mm |
| Fixed |
316x364mm |
