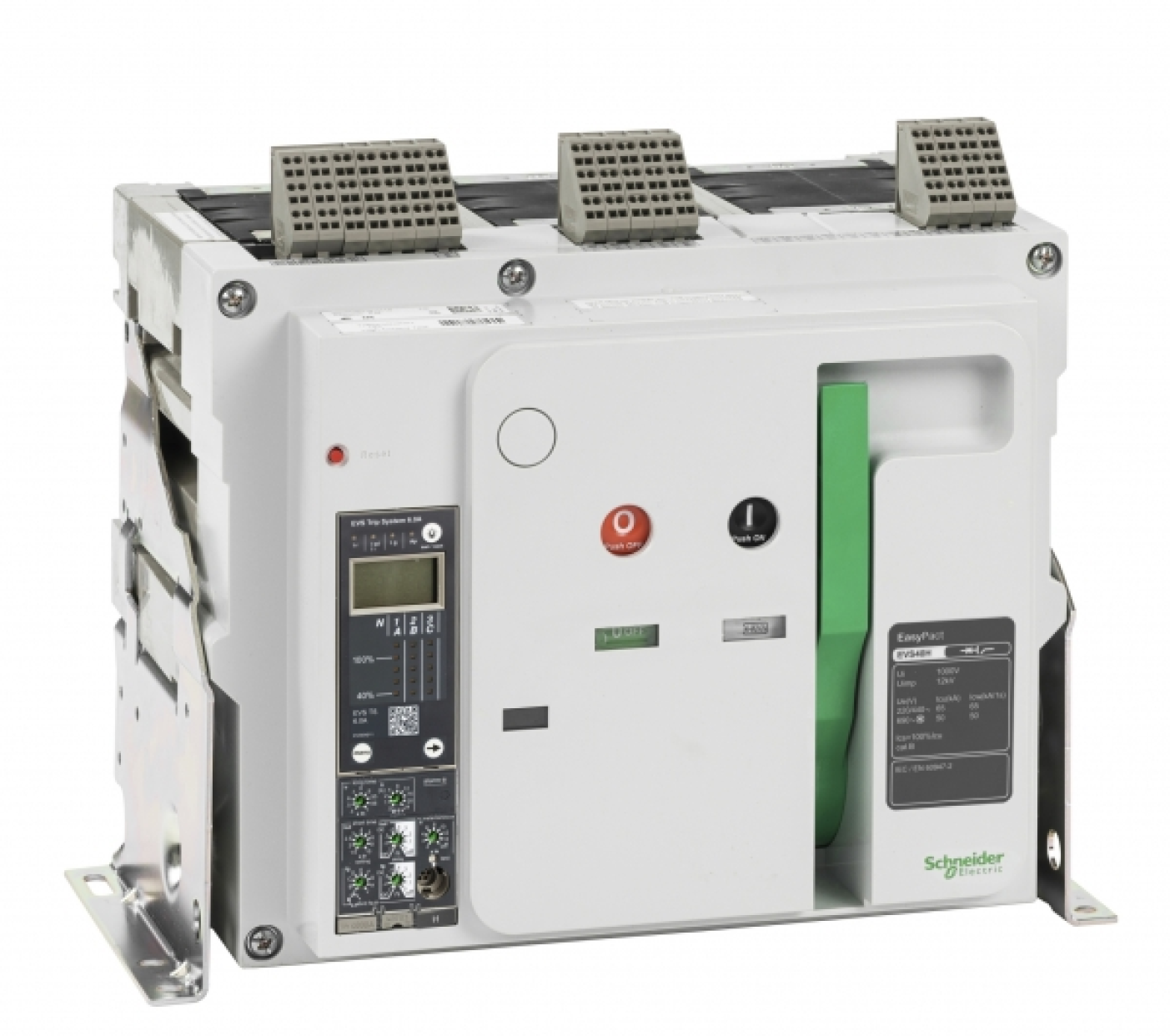

Air Circuit breaker, EasyPact EVS, 4 poles, 1000A, 65kA, AC, MF, Trip 2.0, fixed, Manual.
| Specifications EVS10H4MF20: | ||
| Range | EasyPact - 1000A | |
| Country of Origin (Estimated) | Singapore (Other) | |
| Warranty | 12 months | |
| CO/CQ | Yes (if need) | |
| Product name & Device short name | EVS10 | |
| Device application | Distribution | |
| Poles description | 4P | |
| Protected poles description | 4P 4d | |
| [In] rated current | 1000 A at 40 °C | |
| Network type | AC | |
| [Ue] rated operational voltage | 690 VAC 50/60 Hz conforming to IEC 60947-2 | |
| Suitability for isolation | Yes conforming to IEC 60947-2 | |
| Trip unit name | LI | |
| Trip unit technology | Electronic | |
| Trip unit rating | 1000 A | |
| [Ui] rated insulation voltage | 1000 VAC 50/60 Hz conforming to IEC 60947-2 | |
| Connection position | Horizontal, Vertical | |
| Control type | Manually operated | |
| Mounting mode | Fixed | |
| Breaking capacity Icu(kA rms) | 65 kA Icu at 220...440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| [Ics] rated service breaking capacity | 65 kA Ics at 220...440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Mechanical durability | 20000 cycles (with maintenance) conforming to IEC 60947-2. 10000 cycles (without maintenance) conforming to IEC 60947-2 |
|
| Electrical durability | Category B: 6000 cycles 440 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 Category B: 4000 cycles 690 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 |
|
| Trip unit protection functions | 2.0 basic protection | |
| Protection type | Overload protection (long time) Instantaneous short-circuit protection | |
| fault indication | Short-circuit Overload Internal fault |
|
| Long time pick-up adjustment type Ir | Adjustable 9 settings | |
| Long time pick-up adjustment range | 0.4...1 x In | |
| Long time delay adjustment type | Adjustable 9 settings | |
| [tr] long-time delay adjustment range | 0.5…24 s at 6 x Ir | |
| Dimensions (mm) (H x W x D) |
Drawout | 3P/439x441x395 mm |
| 4P/439x556x395 mm | ||
| Fixed | 3P/352x422x297 mm | |
| 4P/352x537x297 mm | ||
| Net weight (Kg) | Drawout | 3P/70 Kg 4P/85 Kg |
| Fixed | 3P/40 Kg 4P/50 Kg |
|
| Door cutout Dimensions (WxH) | Drawout | 316x364mm |
| Fixed | 316x364mm | |
