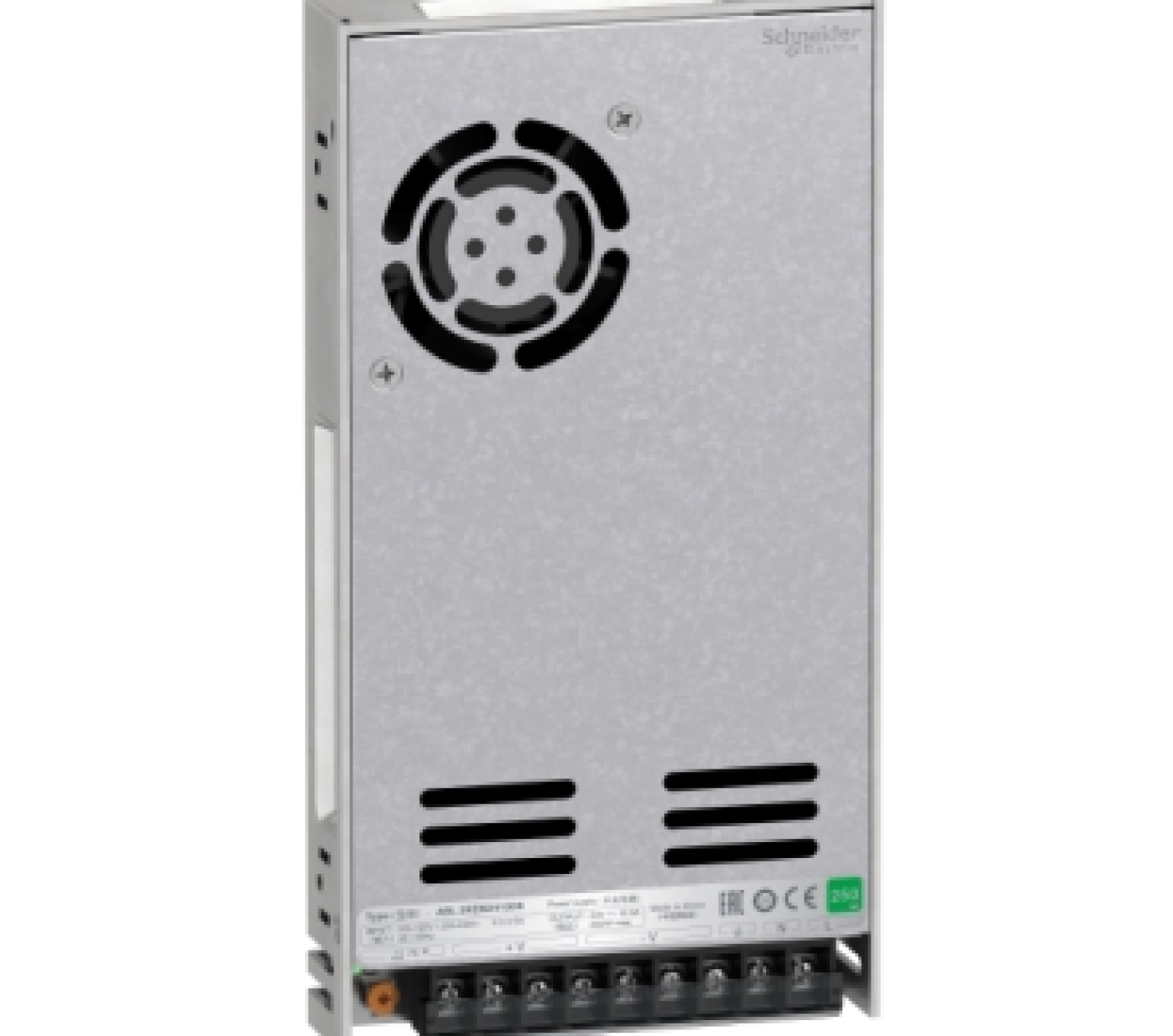

Single Phase Power Supply, 100...240V input, 24V DC output, 250W, 10,5A.
Specifications |
ABL2REM24100K |
| range of product | Easy Modicon ABL2 |
| Country of Origin (Estimated) | China |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| product or component type | Power supply |
| Power supply type | Regulated switch mode |
| Rated power in W | 252 W |
| Main Input Voltage | 100...120 V AC single phase |
| 200...240 V | |
| Output voltage | 24 V DC |
| Power supply output current | 10.5 A |
| Vibration resistance | 4 gn (f= 10…500 Hz) conforming to IEC 61131-2 |
| Name of test | Electromagnetic hypersensitivity (EHS) conforming to IEC 61000-6-2 level A |
| Input voltage limits | 90...132 V 180...264 V |
| Network frequency | 47...63 Hz |
| Inrush current | 60 A at 100...120 V AC 60 A at 200...240 V AC |
| Cos phi | 0.5 |
| Efficiency | 89% |
| Power dissipation in W | 37.6 W |
| Current consumption | 2.5 A at 240 V |
| Input protection type | Integrated fuse (not interchangeable) |
| Output voltage limits | 20.4...27.6 V |
| Line and load regulation | +/- 1 % |
| Holding time | >= 35 ms at 115 V |
| Output protection type | Against overload, protection technology: 1.1...1.5 x In Against short-circuits, protection technology: 1.1...1.5 x In Against overvoltage, protection technology: 28.8...33.6 V Thermal |
| Connections - terminals | For ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12 |
| mounting support | DIN rail with accessory Panel mounting with accessory |
| Operating altitude | 5000 m |
| Output coupling | Series |
| Overvoltage category | II |
| Meantime between failure [MTBF] | 600000 h at 25 °C |
| Status LED | 1 LED (green) output voltage |
| Dimensions (WxHxD) | 115x215x30 mm |
| Net weight | 0.75 Kg |
