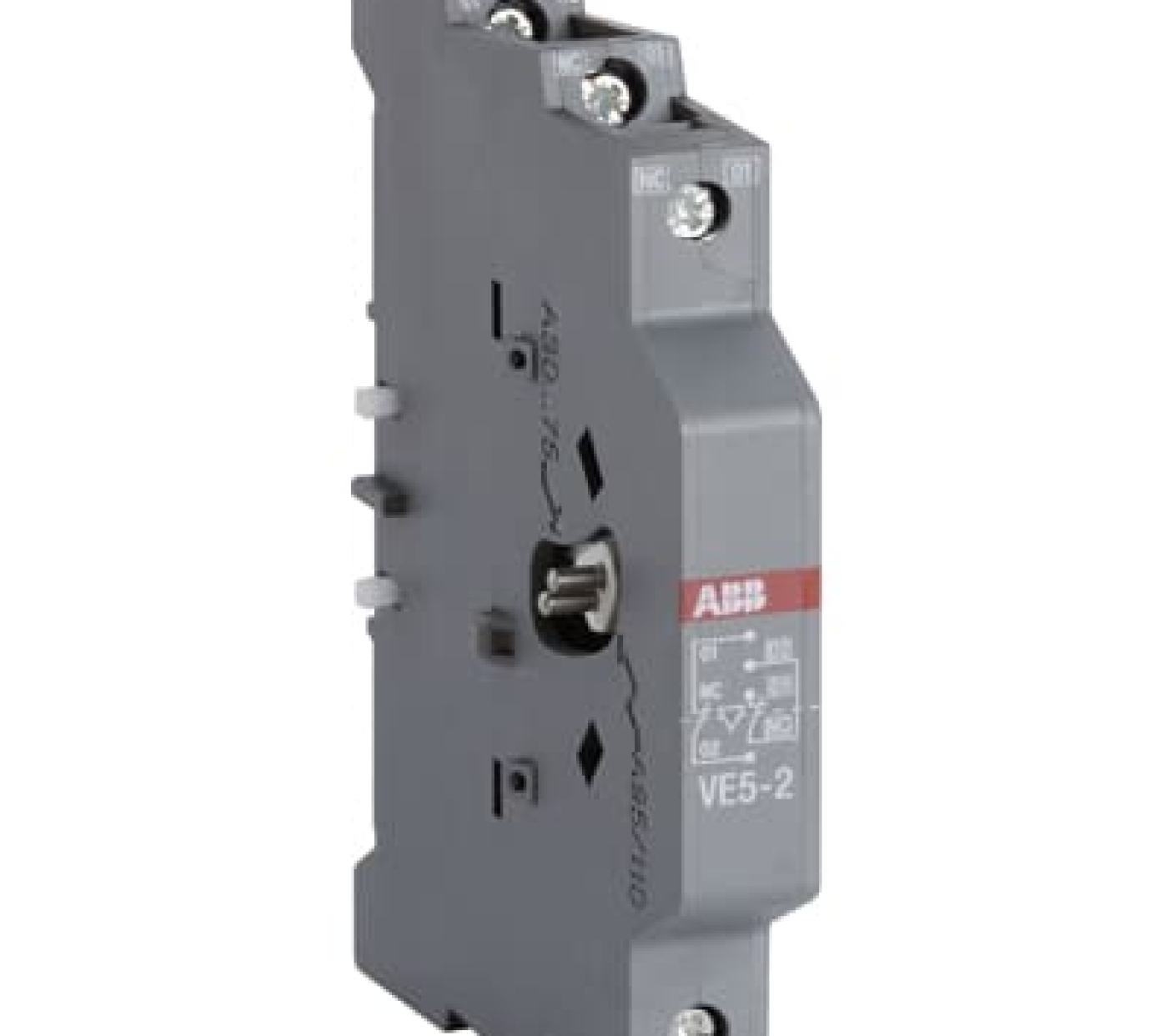

Mechanical and electrical interlock units for two horizontal mounted contactors Suitable For 2NC AX32-AX80 (VE5-2)
Specifications |
1SBN030210R1000 |
| Range | Mechanic interlock contact block |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | VE5-2 |
| Description | VE5-2 Mechanical and Electrical Interlock Unit |
| Number of Auxiliary Contacts | 2NC |
| Rated Operational Voltage | Auxiliary Circuit 690 V |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A (690 V) 2 A (24 / 127 V) 6 A (220 / 240 V) 4 A (380 / 400 V) 3 A |
| Mechanical Durability | 5 million |
| Standards | IEC/EN 60947-4-1, UL 60947-1, UL 60947-5-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-5-1-14 |
| Suitable For Contactor | AF45, AF50, AF63, AF75, AF95B, A30, A40, A45, A50, A63 A75, A95, A110, AE45, AE50, AE63, AE75, TAE45, TAE50 TAE75, GA75, GAE75, AX32, AX40, AX50, AX65, AX80 AX95, AX115, AX150 |
| Dimensions (mm) (HxWxD) |
108 x 15 x 89.65mm |
| Net weight (Kg) | 0.146 kg |
