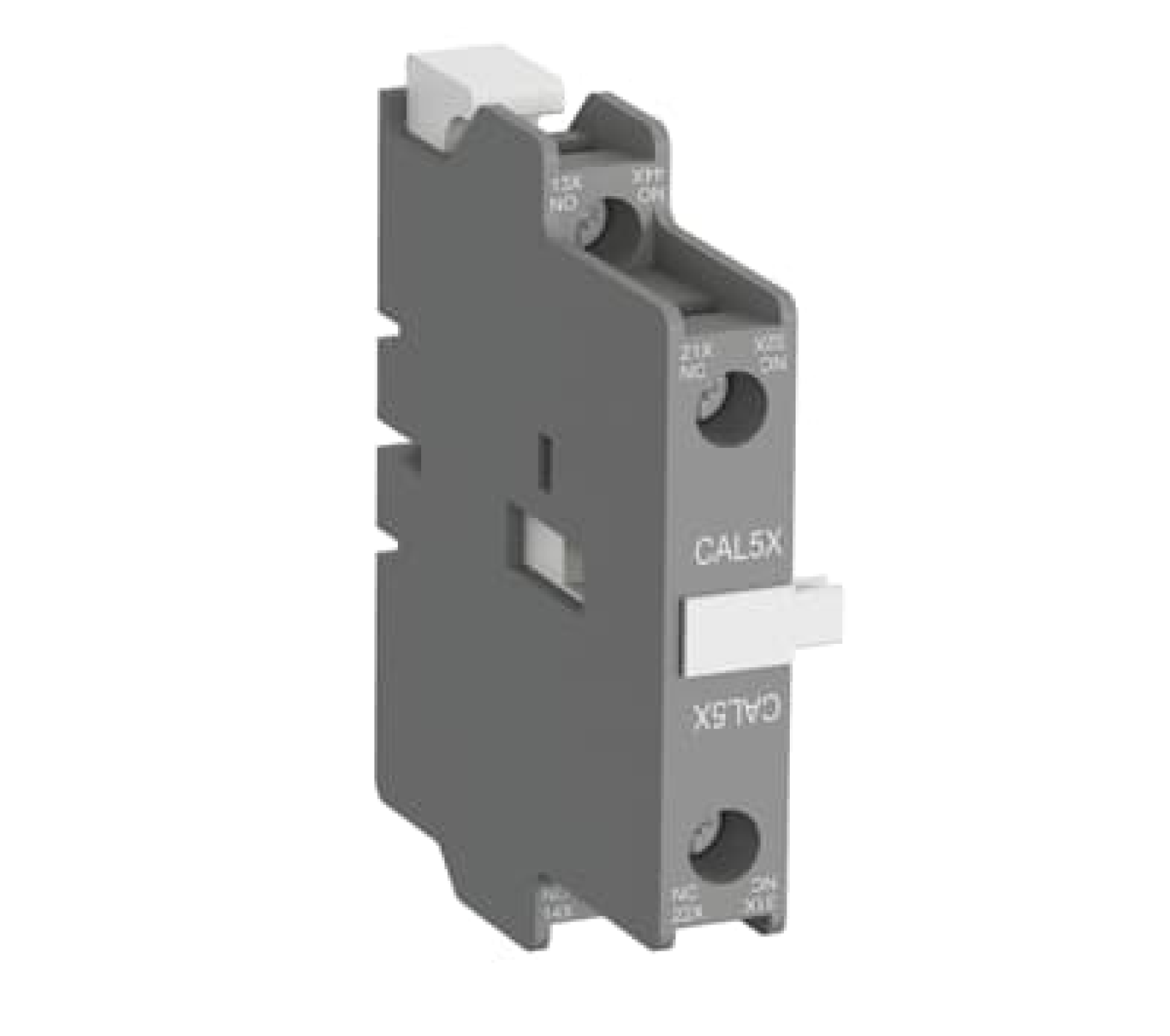

Side-mounted instantaneous auxiliary contact block 1NO+1NC Suitable For AX09-AX80 (CAL5X-11 ).
Specifications |
1SBN019020R1011 |
| Range | Auxiliary contact block |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | CAL5X-11 |
| Number of Auxiliary Contacts | 1NO + 1NC |
| Installation location for Contactors | Side-mounted |
| Rated Operational Voltage | Auxiliary Circuit 690 V Main Circuit 690 V |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-15 (Ie): | (690 V) 2 A (24 / 127 V) 6 A (220 / 240 V) 4 A (380 / 400 V) 3 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Terminal Type | Screw Terminals |
| Suitable For | AX06 AX09 AX12 AX18 AX25 AX32 AX40 AX50 AX65 AX80 NX |
| Dimensions (mm) (HxWxD) |
74 x 12 x 60mm |
| Net weight (Kg) | 0.05 kg |
