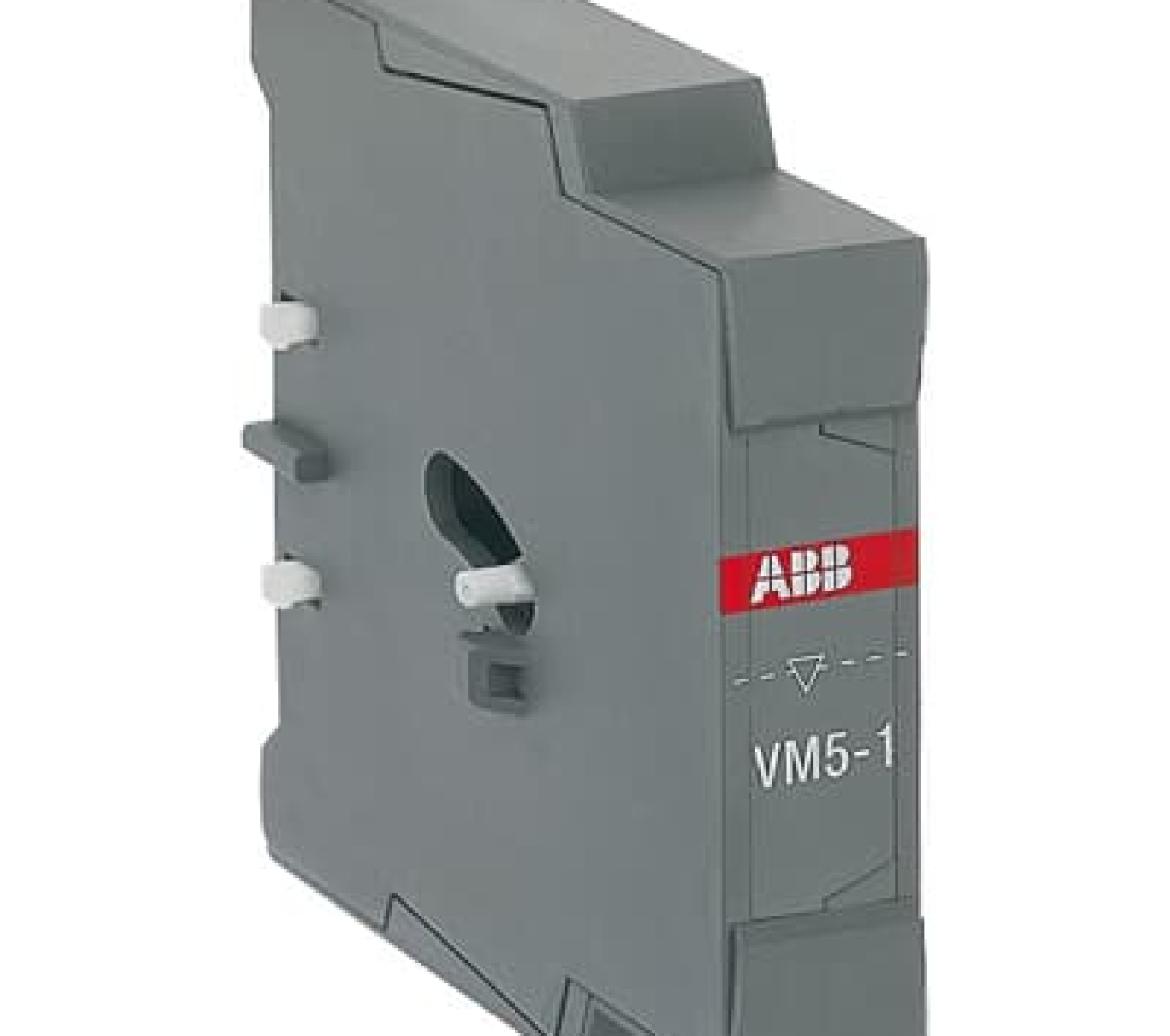

Mechanical interlock units for two horizontal mounted contactors Suitable For AX09-AX40 (VM5-1).
Specifications |
1SBN030100R1000 |
| Range | Mechanic interlock contact block |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | VM5-1 |
| Standards | IEC/EN 60947-4-1, UL 60947-1, UL 60947-5-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-5-1-14 |
| Suitable For Contactor | A9, A12, A16, A26, A30, A40, AL9, AL9Z, AL12, AL12Z AL16, AL16Z, AL26, AL30, AL40, TAL9, TAL12, TAL16 TAL26, TAL30, TAL40, AX06, AX09, AX12, AX18, AX25 AX32, AX40 |
| Dimensions (mm) (HxWxD) |
70 x 15 x 71mm |
| Net weight (Kg) | 0.066 kg |
