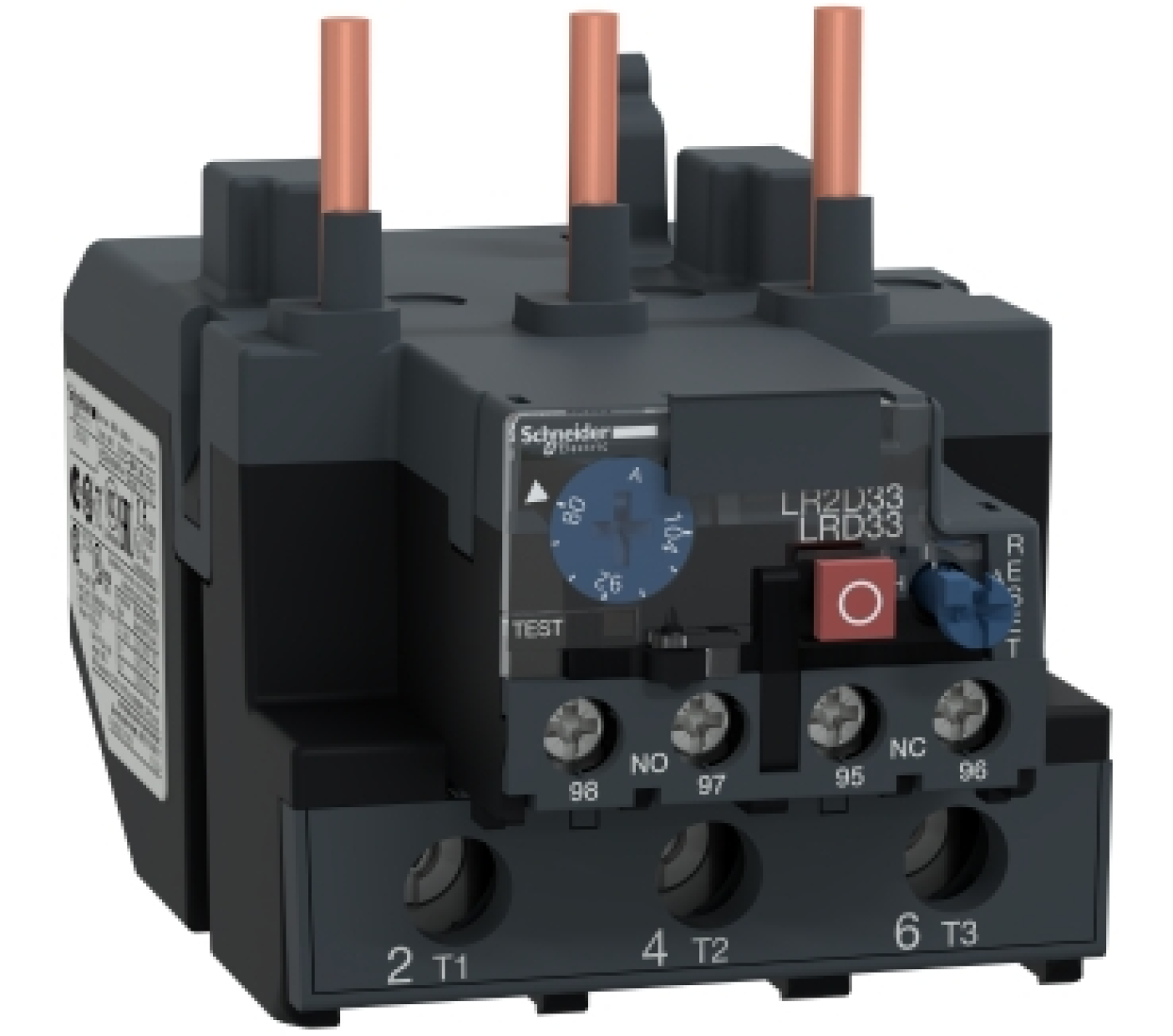

Thermal Overload Relays, TeSys Deca, 80...104A, class 10A, motor protection.
Specifications |
LRD3365 |
| Country of Origin (Estimated) | France |
| Warranty | 12 months |
| CO/CQ | Yes (If need) |
| Product name | TeSys LRD TeSys Deca |
| Product or component type | Differential thermal overload relay |
| Device short name | LRD |
| Relay application | Motor protection |
| Product compatibility | LC1D95 LC1D80 |
| Network type | DC AC |
| Thermal overload class | Class 10A conforming to IEC 60947-4-1 |
| Thermal protection adjustment range | 80…104 A |
| Mounting support | Plate, with specific accessories Rail, with specific accessories Under contactor |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ue] rated operational voltage | 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Control type | Red push-button: stop Blue push-button: reset |
| Tripping threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5 EN 50495 |
| Dimensions (mm) (HxWxD) |
81x70x115 mm |
| Net weight (Kg) | 0.51 Kg |
