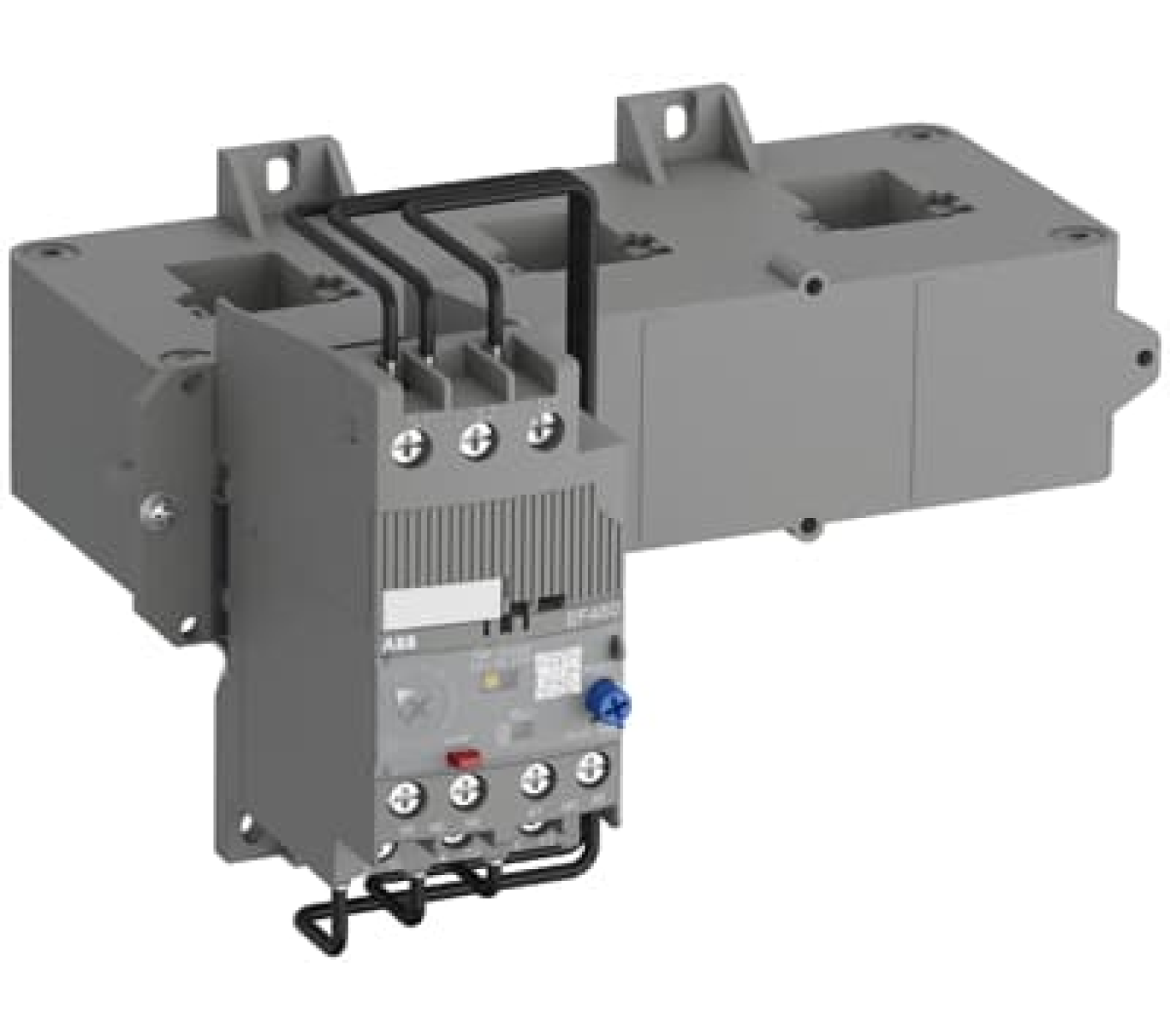

Electronic Overload Relay 150-500A Suitable For AF400-AF460 (EF460-500)
Specifications |
1SAX721001R1101 |
| Range | Electronic Overload Relay |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | EF460-500 |
| Number of Poles | 3P |
| Number of Auxiliary Contacts | 1NC+1NO |
| Setting Range | 150 ... 500 A |
| Rated Operational Current (Ie) | 500 A |
| Rated Operational Voltage | Auxiliary Circuit 600 V AC/DC Main Circuit 1000 V AC |
| Rated Operational Current AC-15 (Ie) | (240 V) NC 3 A (240 V) NO 3 A (400 V) NC 1.1 A (400 V) NO 1.1 A (500 V) NC 0.75 A (500 V) NO 0.75 A |
| Rated Operational Current DC-13 (Ie) | (125 V) NC 0.55 A (125 V) NO 0.5 A (24 V) NC 1.5 A (24 V) NO 1.5 A (250 V) NC 0.27 A (250 V) NO 0.27 A (60 V) NC 0.55 A (60 V) NO 0.55 A |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit NC 6 A Auxiliary Circuit NO 6 A |
| Suitable For Contactor | AF400 AF460 |
| Standards | IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 |
| Dimensions (mm) (HxWxD) |
103.5 x 186 x 152.13mm |
| Net weight (Kg) | 1.182 kg |
